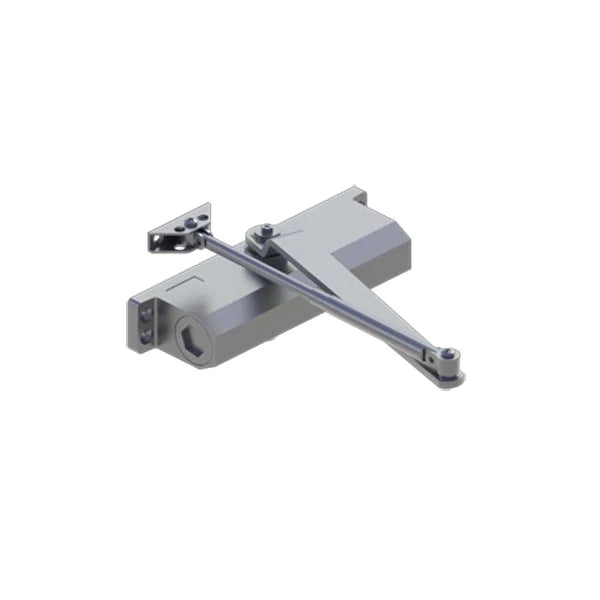

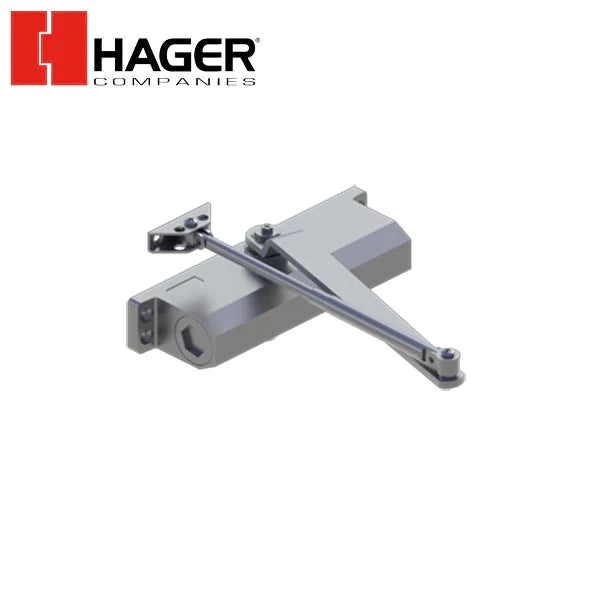

Hager - 5400 - Grade 2 Standard Duty Surface Door Closer - Adjustable Sizes 2-5 - Aluminum
Hager - 5400 - Grade 2 Standard Duty Surface Door Closer - Adjustable Sizes 2-5 - Aluminum

Hager - 5400 - Grade 2 Standard Duty Surface Door Closer - Adjustable Sizes 2-5 - Aluminum

In Stock
SKU: HGR-5400M25ALM
NSID:

Get it shipped ! Order within:

Member Benefits

Get it shipped ! Order within:

Get an Extra Hour with

Learn More
$120.20
$142.92
$120.20


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:

Call 1-800-878-6604 for Bulk / Dealer Pricing!
Description

Specs

Certifications
  • BHMA Certified ANSI A156.4, sizes 2-5 adjustable
  • UL/cUL Listed for up to 3 hours
  • UL10C Positive Pressure Rated
  • UL10B Neutral Pressure Rated
  • Five-year warranty
  • EPD
Material
  • Aluminum alloy
Arm
  • Tri-Pack - Regular, parallel, and top jamb arm mount - standard 15% power adjustment in standard arm for regular and top jamb mount
Cover
  • Plastic cover optional
Door Thickness
  • 1-3/4" (44 mm) - standard
  • 1-3/8" - 2-1/4" (36 mm - 57 mm) - optional
Fasteners
  • Self-reaming self-tapping wood and machine screws
  • Sex nuts and bolts
Handing
  • Non-handed
Maximum Door Weight
  • 80 lbs
Notes
  • To maximize hinge life and assist in achieving ADA compliance, Hager recommends the use of anti-friction or ball bearing hinges with our door closer products
  • Standard package contains standard screw pack, 5900 parallel arm bracket, and 5902 SNB screw pack for 1-3/4" (44 mm) door
  • Precision machined, heat treated steel piston
  • Triple heat treated steel spindle
  • The recommended temperatures for prolonged closer use is between -40° F (-42° C) and 150° F (66° C)
Product Description
  • Grade 2 Standard Duty Surface Door Closer - Adjustable Sizes 2-5
Springs
  • Double heat-treated, steel-tempered springs
Valves
  • Sweep and latching valves- standard
  • Backcheck valve- optional
  • All valves are staked
Warranty
  • Five year


Downloads:

Note: To maximize hinge life and assist in achieving ADA compliance, Hager recommends the use of anti-friction or ball bearing hinges with our door closer products , Standard package contains standard screw pack, 5900 parallel arm bracket, and 5902 SNB screw pack for 1-3/4" (44 mm) door, Precision machined, heat treated steel piston, Triple heat treated steel spindle, The recommended temperatures for prolonged closer use is between -40° F (-42° C) and 150° F (66° C)
Compatibility

Compatible With

Downloads
Notes
Note: To maximize hinge life and assist in achieving ADA compliance, Hager recommends the use of anti-friction or ball bearing hinges with our door closer products , Standard package contains standard screw pack, 5900 parallel arm bracket, and 5902 SNB screw pack for 1-3/4" (44 mm) door, Precision machined, heat treated steel piston, Triple heat treated steel spindle, The recommended temperatures for prolonged closer use is between -40° F (-42° C) and 150° F (66° C)
