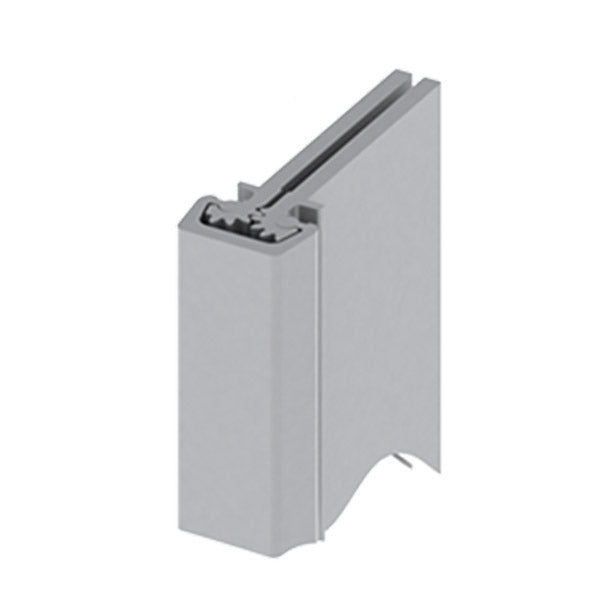

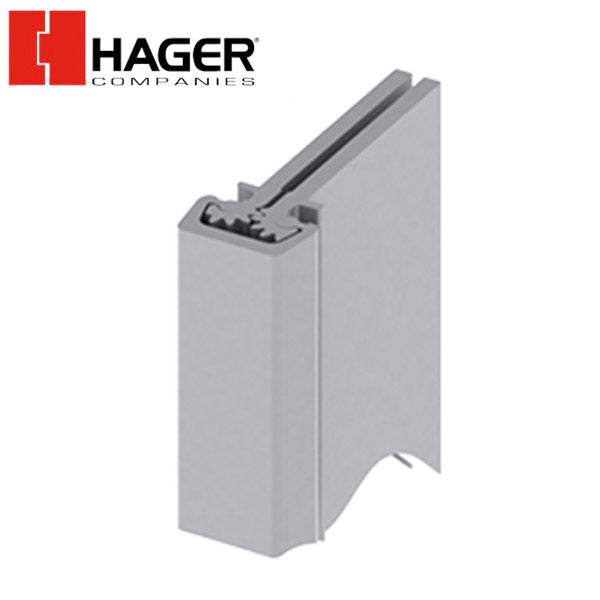

Hager - 780-112HD - Concealed Leaf Continuous Hinge - Concealed - Medium Duty - Aluminum - 119" - Fire Rated
Hager - 780-112HD - Concealed Leaf Continuous Hinge - Concealed - Medium Duty - Aluminum - 119" - Fire Rated
Hager - 780-112HD - Concealed Leaf Continuous Hinge - Concealed - Medium Duty - Aluminum - 119" - Fire Rated
Hager - 780-112HD - Concealed Leaf Continuous Hinge - Concealed - Medium Duty - Aluminum - 119" - Fire Rated
Hager - 780-112HD - Concealed Leaf Continuous Hinge - Concealed - Medium Duty - Aluminum - 119" - Fire Rated

Hager - 780-112HD - Concealed Leaf Continuous Hinge - Concealed - Medium Duty - Aluminum - 119" - Fire Rated

$205.00 $246.00
Availability: Available
Wishlist
  • Product SKU: HGR-780-112HDFFUL-119IN-CLR
  • NSID: 42889
  • HGR-780-112HDFFUL-119IN-CLR

    Specifications:

    • Hager Roton continuous geared hinges are designed for superior performance and come with a lifetime warranty from the manufacturer.
    • Hager has developed templated hole patterns for Roton hinge models in standard lengths.
    • Medium duty doors
    • Frame leaf alignment rib for proper hinge and door location
    • Door edge protection lip
    • 3/32 in. inset
    • Clearance: 5/16 in. hinge side plus standard lockside clearance
    • Fire Rating: up to 3hr metal and 90 min. wood composite (with studs)
    • Material: Aluminum 6063-T6
    • 16-gauge channel

    $205.00
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs


Certifications Conforms to ANSI A156.26 for A31011G
Clearance 5/16" (8 mm) hinge side
Plus standard lockside clearance
Material Aluminum 6063-T6
Door Reinforcement

 None required to 200 lbs. Heavier weight use 16-gauge channel.

Fasteners #12-24 X 11/16" Flat Head Self-Drill fasteners 1/2 Dril-Kwik® fasteners, 1/2 wood fasteners
Fire Rating Up to 3-hour metal and 90 minute wood composite (with studs)
Length 119"
Manufacturer Warranty All Roton products have a lifetime warranty. When ordering electric Roton, the electric portion of the hinge has a one-year warranty.





Downloads:

HGR-780-112HDFFUL-119IN-CLR

Specifications:

  • Hager Roton continuous geared hinges are designed for superior performance and come with a lifetime warranty from the manufacturer.
  • Hager has developed templated hole patterns for Roton hinge models in standard lengths.
  • Medium duty doors
  • Frame leaf alignment rib for proper hinge and door location
  • Door edge protection lip
  • 3/32 in. inset
  • Clearance: 5/16 in. hinge side plus standard lockside clearance
  • Fire Rating: up to 3hr metal and 90 min. wood composite (with studs)
  • Material: Aluminum 6063-T6
  • 16-gauge channel


Certifications Conforms to ANSI A156.26 for A31011G
Clearance 5/16" (8 mm) hinge side
Plus standard lockside clearance
Material Aluminum 6063-T6
Door Reinforcement

 None required to 200 lbs. Heavier weight use 16-gauge channel.

Fasteners #12-24 X 11/16" Flat Head Self-Drill fasteners 1/2 Dril-Kwik® fasteners, 1/2 wood fasteners
Fire Rating Up to 3-hour metal and 90 minute wood composite (with studs)
Length 119"
Manufacturer Warranty All Roton products have a lifetime warranty. When ordering electric Roton, the electric portion of the hinge has a one-year warranty.





Downloads:
