Hager

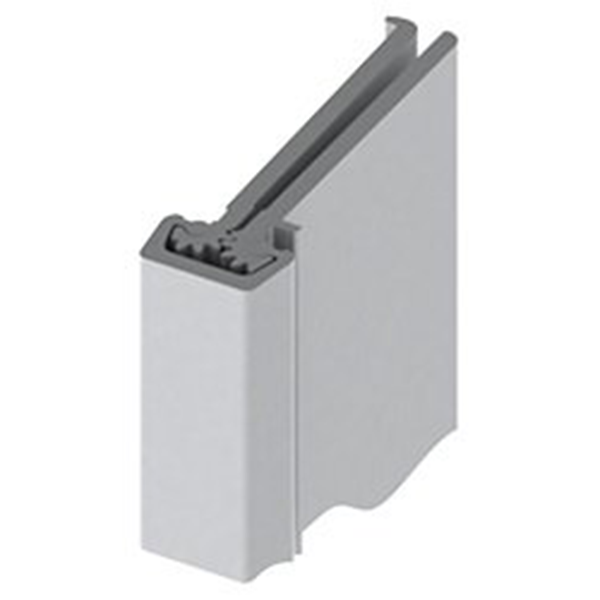

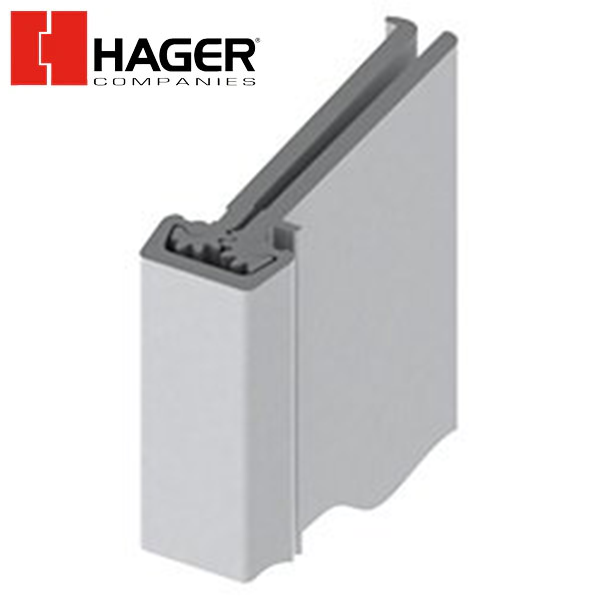

Hager - 780-224HD - Continuous Geared Hinges - Concealed - Heavy Duty - Aluminum - 83" - Fire Rated

Hager - 780-224HD - Continuous Geared Hinges - Concealed - Heavy Duty - Aluminum - 83" - Fire Rated

In stock
SKU HGR-YS2240830CLR000001 NSID 26328
$100.66$120.79On Sale You save $20.13 (17%)
Get it shipped Today! Order within:


Concealed Leaf 1-3/4" Doors Case Pack w/ Drill Quick fasteners

  • Hager Roton continuous geared hinges are designed for superior performance and come with a lifetime warranty from the manufacturer.
  • Hager has developed templated hole patterns for Roton hinge models in standard lengths.
  • Heavy duty for high-frequency doors or heavy, medium frequency doors
  • Frame leaf alignment rib for proper hinge and door location
  • Door edge protection lip
  • 3/32 in. inset
  • Clearance: 5/16 in. hinge side plus standard lockside clearance
  • Fire Rating: up to 3hr metal and 90 min. wood composite (with studs)
  • Material: Aluminum 6063-T6
  • 16-gauge channel

  • NOTE: This Item Does NOT Qualify for FREE Shipping- Please contact your sales representative to get shipping costs. Call 1-800-878-6604 between Monday and Friday, 9AM-6PM EST
Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details


Certifications Conforms to ANSI A156.26 for A31011G
Clearance 5/16" (8 mm) hinge side
Plus standard lockside clearance
Material Aluminum 6063-T6
Door Reinforcement

None required to 200 lbs. Heavier weight use 16-gauge channel.
Fasteners #12-24 X 11/16" Flat Head Self-Drill fasteners 1/2 Dril-Kwik® fasteners, 1/2 wood fasteners
Fire Rating Up to 3-hour metal and 90 minute wood composite (with studs)
Length 83"
Manufacturer Warranty All Roton products have a lifetime warranty. When ordering electric Roton, the electric portion of the hinge has a one-year warranty.
