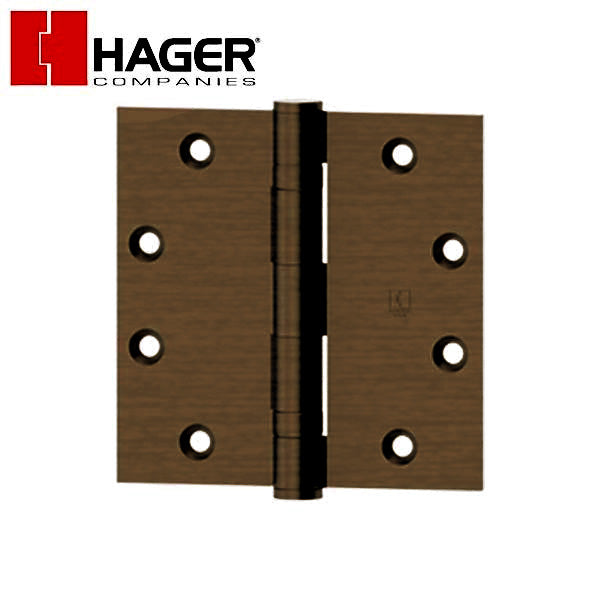

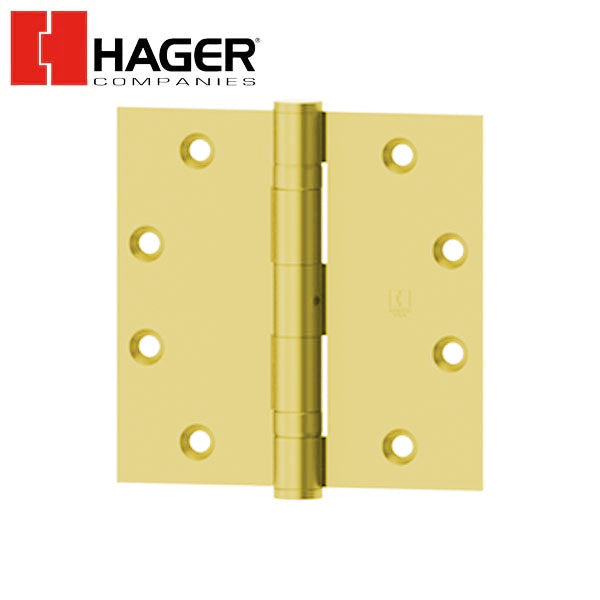

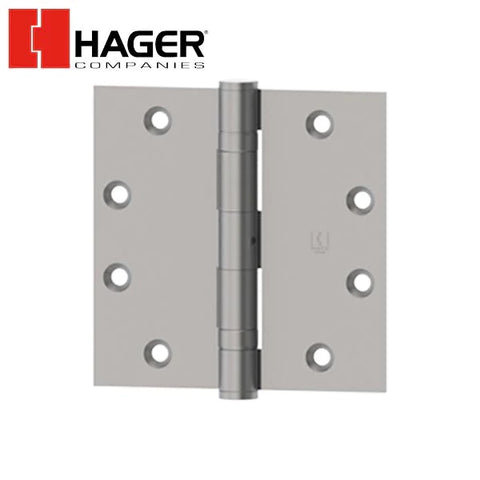

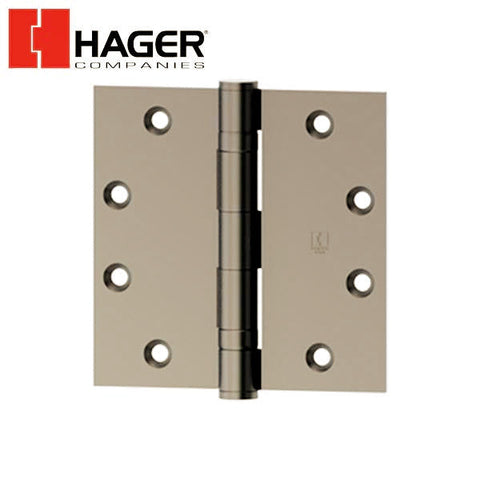

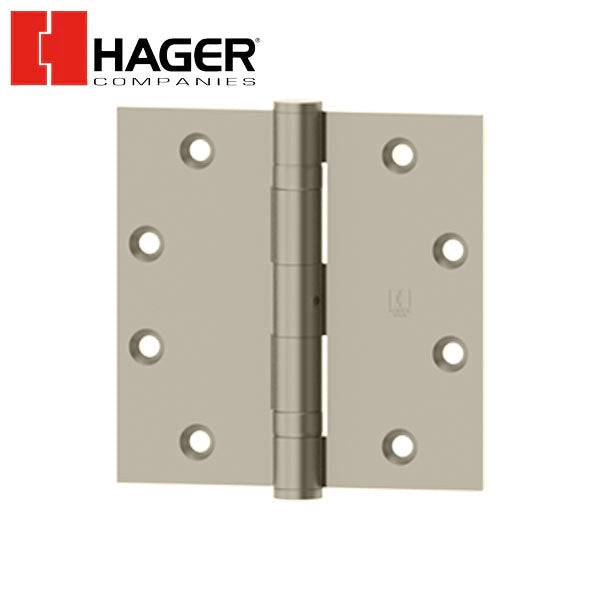

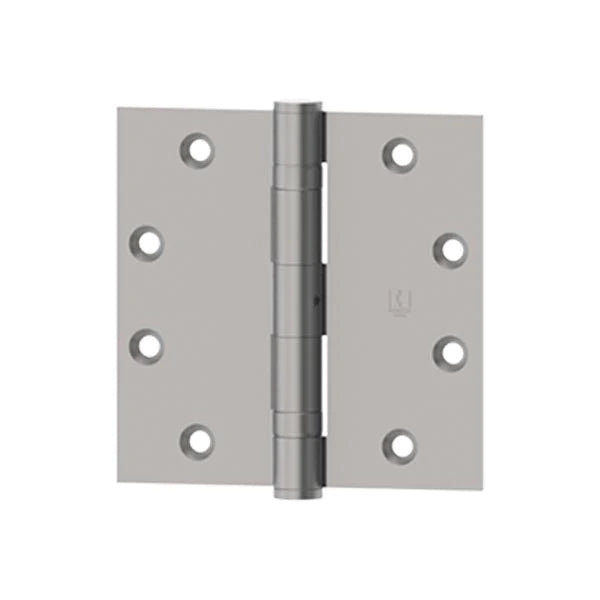

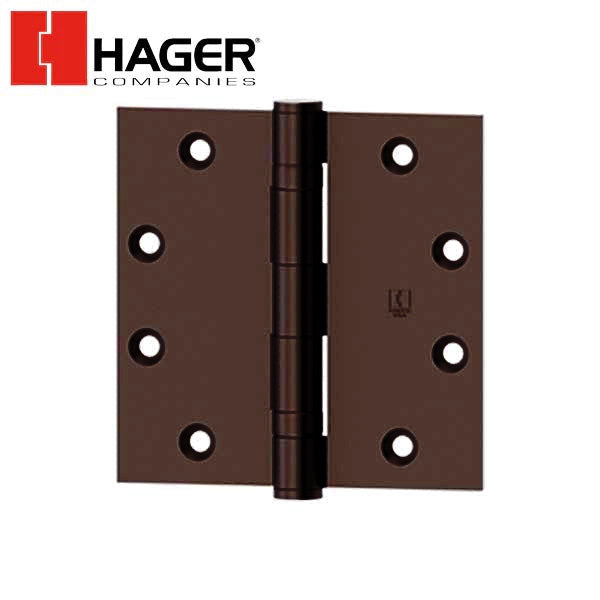

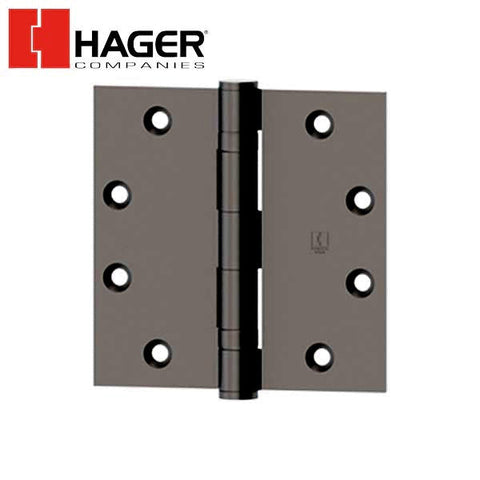

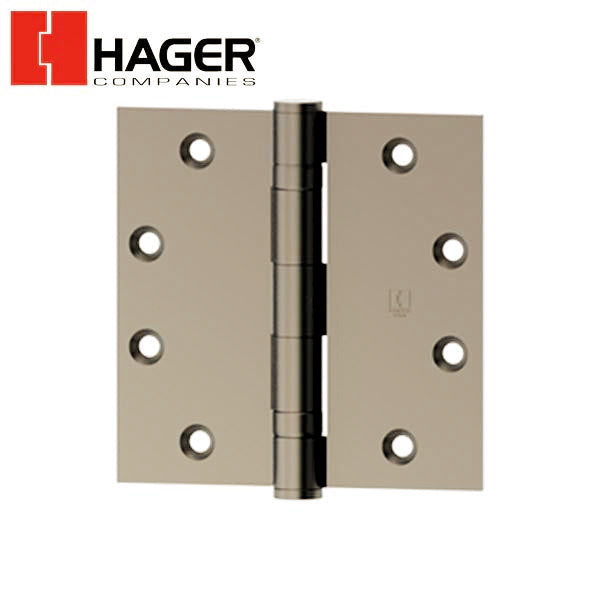

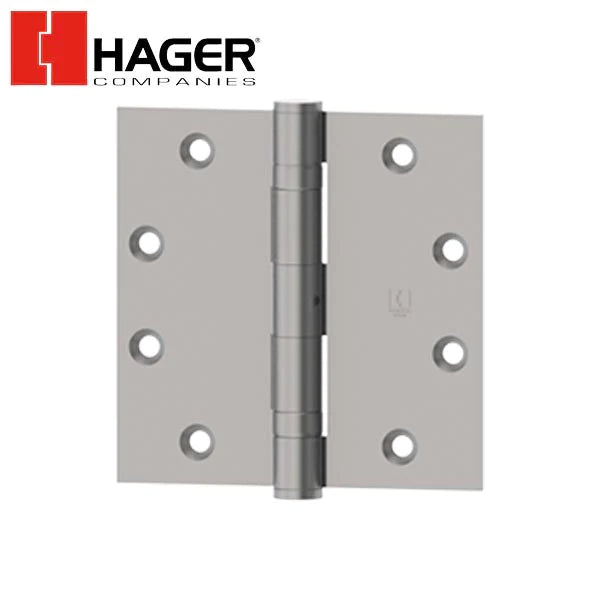

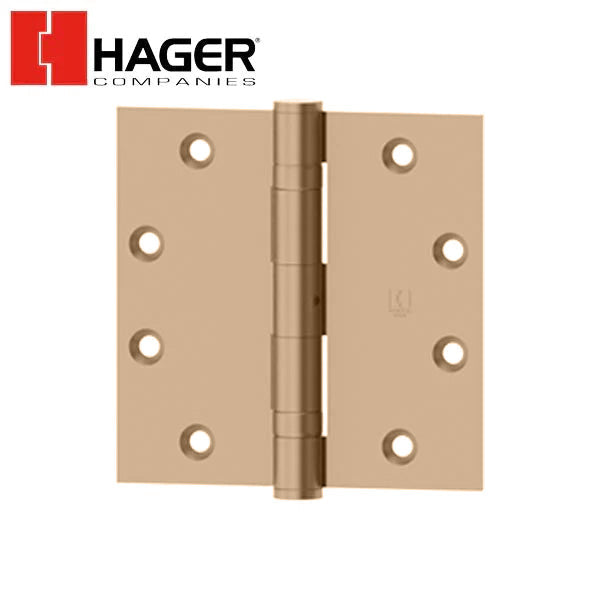

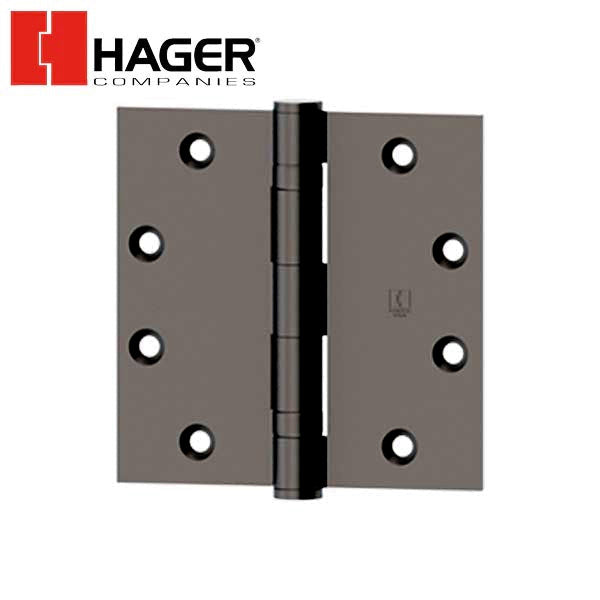

Hager - BB1279 - Full Mortise - Ball Bearing - Standard Weight - Optional Size - Optional Finish - Optional Pin Function

Hager - BB1279 - Full Mortise - Ball Bearing - Standard Weight - Optional Size - Optional Finish - Optional Pin Function

In stock
SKU HGR-1279B0040004026D NSID 65445
$32.15$38.58On Sale You save $6.43 (17%)
Get it shipped Today! Order within:
Finish
Size
Pin Function


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:

    Call 1-800-878-6604 for Bulk / Dealer Pricing!
    View full details

    Details

    Specs

    Certifications
    • ANSI A8112
    Electric Modifications
    • EMN (Electric Monitor Only), ETW (Electric Through-Wire Only), ETM (Electric Through-Wire with Monitoring), Quick Connect
    Features
    • Two ball bearings. Non-rising removable pin with button tip and plug.
    Fire Rating
    • Complies with NFPA80 requirements for use on fire rated door assemblies
    Knuckles
    • 5
    Material
    • Steel with Steel Pin
    Notes
    • Available with reversible hole pattern.
    Options
    • Sizes (below)
    • NRP (Non-removable pin)
    • Stamped with UL logo when ordered for export

    Hinge Size (inches) Hinge Size (mm) Gauge of Metal Hole Count Screw Size (Machine) Screw Size (Wood)
    4 x 4 102 x 102 0.129 8 1/2 x 12-24 1 1/4 x 12
    4 1/2 x 4 114 x 102 0.134 8 1/2 x 12-24 1 1/4 x 12
    4 1/2 x 4 1/2 114 x 114 0.134 8 1/2 x 12-24 1 1/4 x 12
    5 x 4 127 x 102 0.145 8 1/2 x 12-24 1 1/4 x 12
    5 x 4 1/2 127 x 114 0.145 8 1/2 x 12-24 1 1/4 x 12
    5 x 5 127 x 127 0.145 8 1/2 x 12-24 1 1/4 x 12
