Details

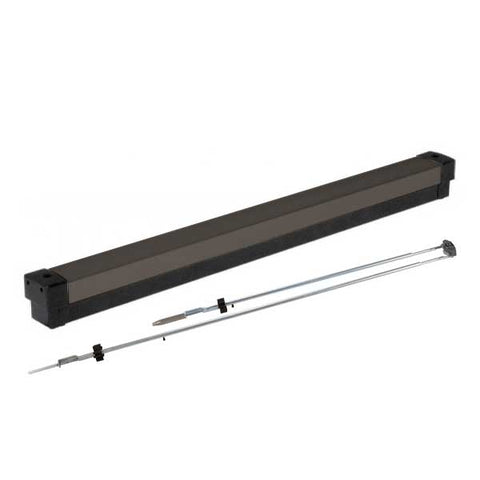

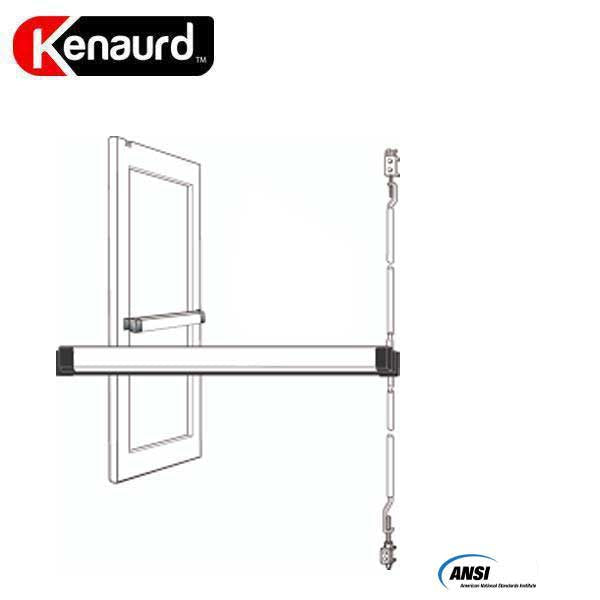

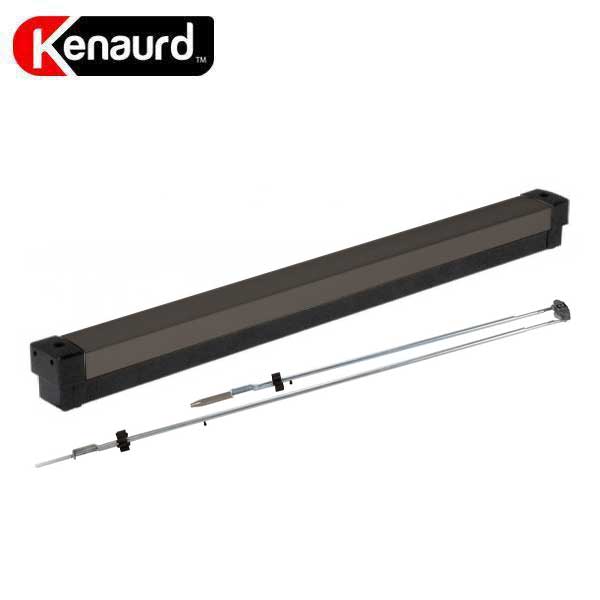

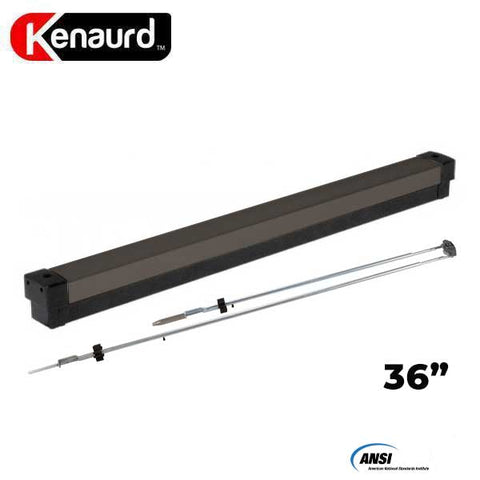

| Device Type | Concealed Vertical Rod Exit Device (No Trim) |
| Certifications | Grade 1 |
| Device Length | 34.5" for 28" to 36" doors |
| Bar Height | Standard model adjusts from 30" to 44" |
| Door Height | Standard model fits up to 8 ft door with bar height at 40"- 44" |
| Door Thickness | Suits 1-3/4" standard up to 2-1/4" |
| Handing | Field Reversible |
| Material | Pushbar made of extruded aluminum, clad or anodized material |
| Stile Width | Minimum 2" Stile |
| Projection | 2-5/8" when fully projected |
| Finish | Duranodic Bronze Finish |
