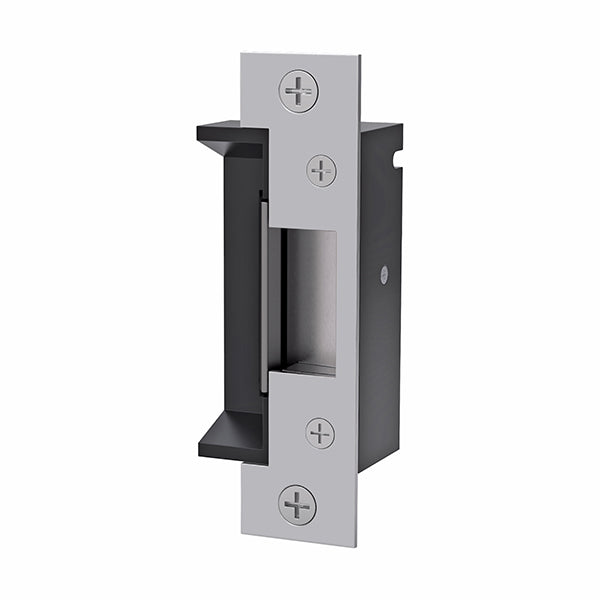

HES - 5000 - Complete Electric Strike with Optional Faceplate Kit - Fail Safe/Fail Secure - 12/24VDC - Up To 5/8" Throw Latchbolt - Satin Stainless Steel - Grade 1
- $124.89
-
$149.87 - $124.89
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

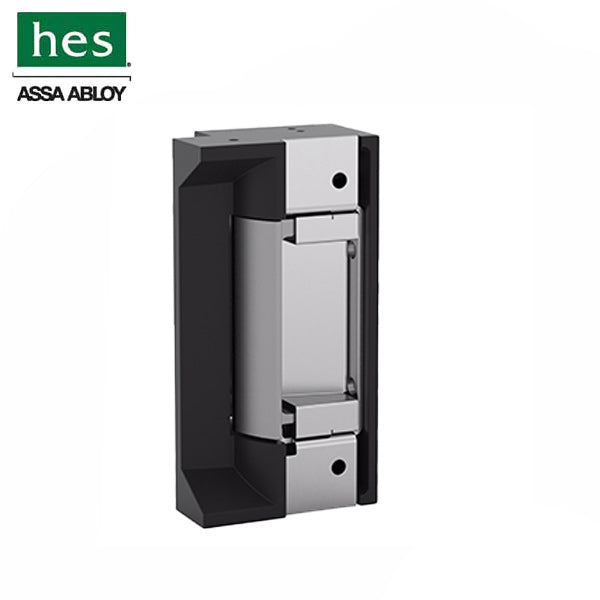

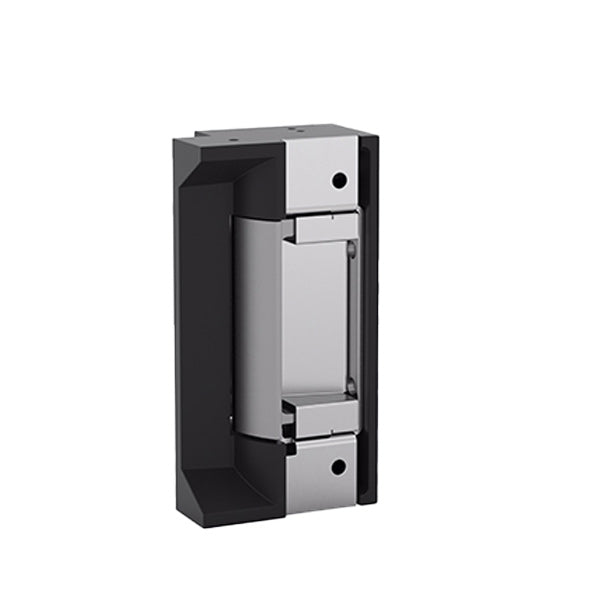

The 5000 Series Electric Strike is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail safe/fail secure unit is easy to install and accommodates latchbolts up to 5/8" throw.
Select Option Below-

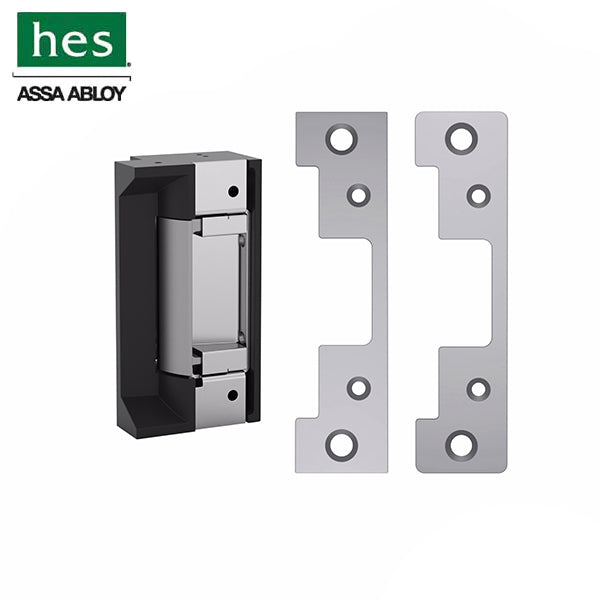

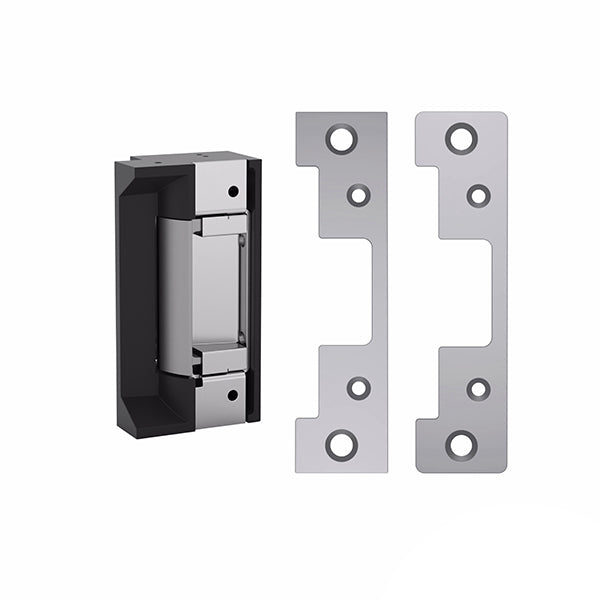

Faceplate Kit Option Includes:

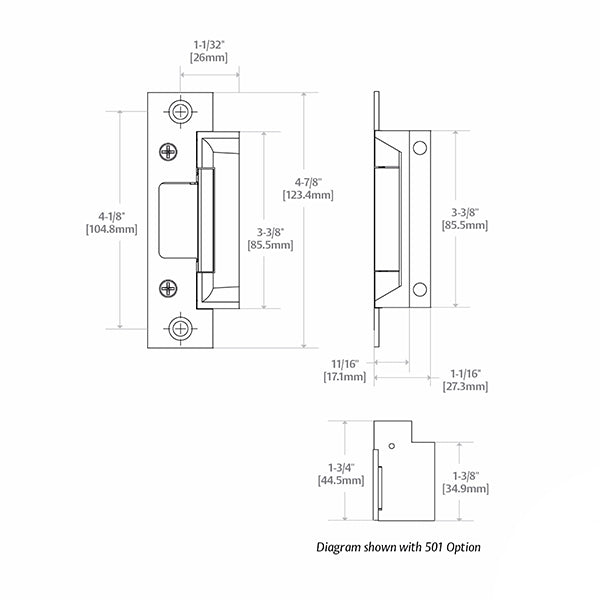

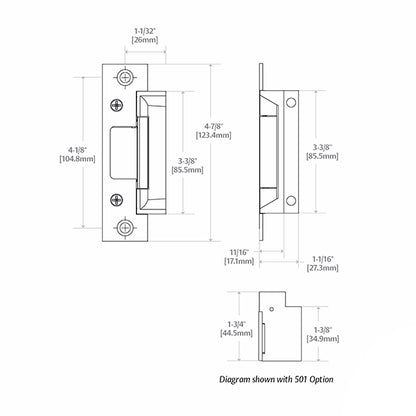

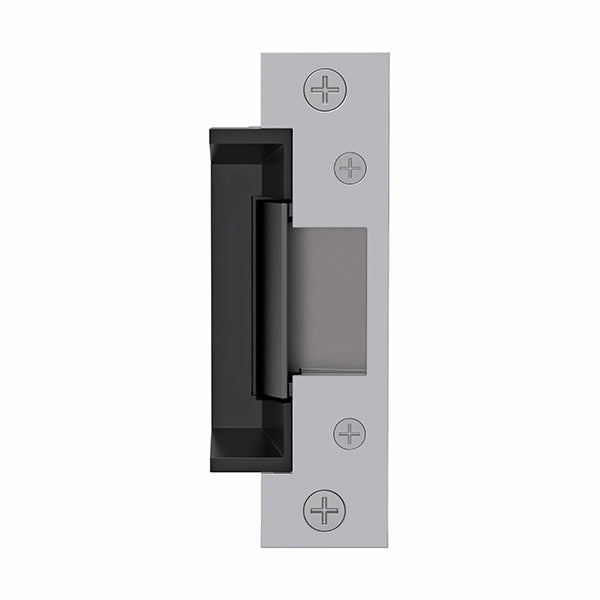

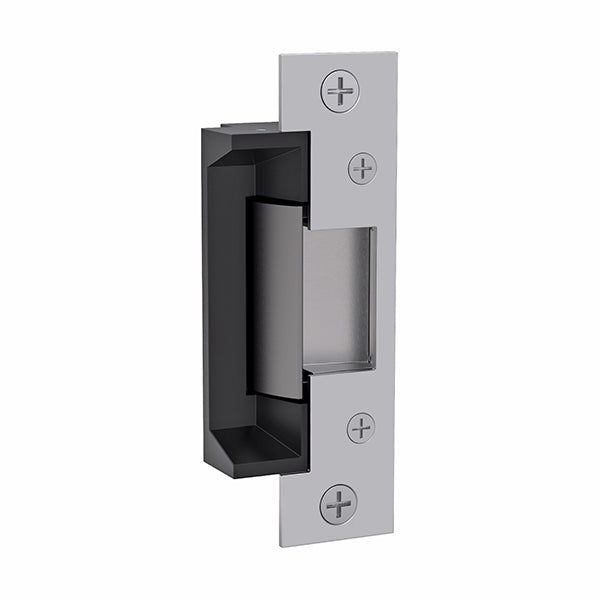

501 Faceplate: 4-7/8" x 1-1/4" Square corners and flat faceplate (For use with: Cylindrical locksets in ANSI metal jambs)
501A Faceplate: 4-7/8" x 1-1/4" Radius corners and flat faceplate (For use with: Cylindrical locksets or spring latch in aluminum frames. Includes universal mounting tabs.)
Features:
- Tamper resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1 million cycles
- Field selectable fail safe/fail secure
- Non-handed
- Internally mounted solenoid
- Accommodates 1/2" – 5/8" [12.7mm – 15.9mm] latchbolt (5/8" [15.9mm] with 1/8" [3.2mm] door gap)
- Strike body depth 1-1/16" [27.3mm]
- Plug-in connector
- Trim enhancer included
- SecuriCare five-year, no-fault, no questions asked warranty (Addition of SMART Pac® III extends the warranty to 10 years)
Specifications:
| Frame Application: | Metal, Wood |
| Handing: | Non-handed |
| Shim Type: | Field Adjustable |
| Voltage: | 12/24 |
| Static Strength: | 1500 lbs |
| Dynamic Strength: | 70 ft-lbs |
| Endurance: | 1,000,000 Cycles |
| Finish: | 630 - Satin Stainless Steel |
| Warranty: | 5 Year |
| Certifications: | UL 1034, UL 294, UL 305, Grade 1, RoHS Compliant |
