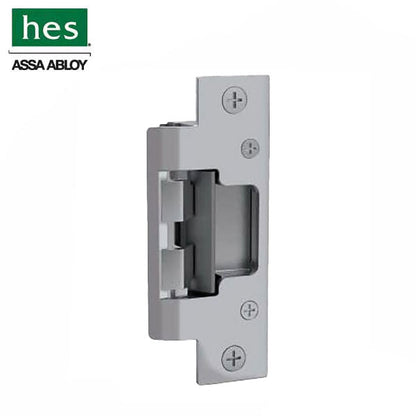

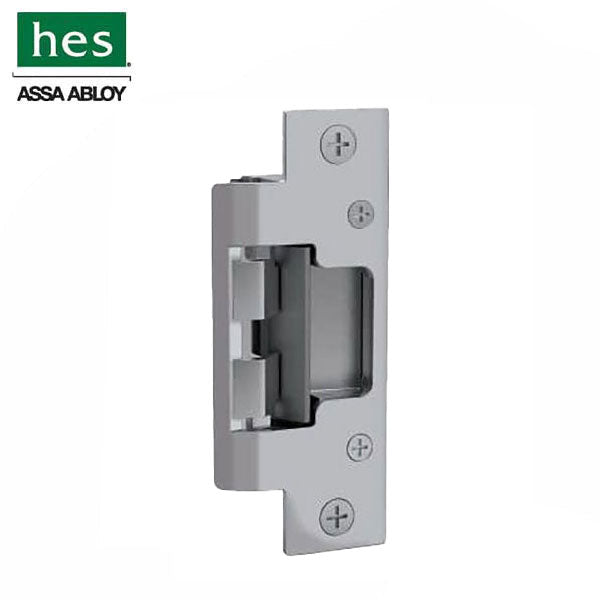

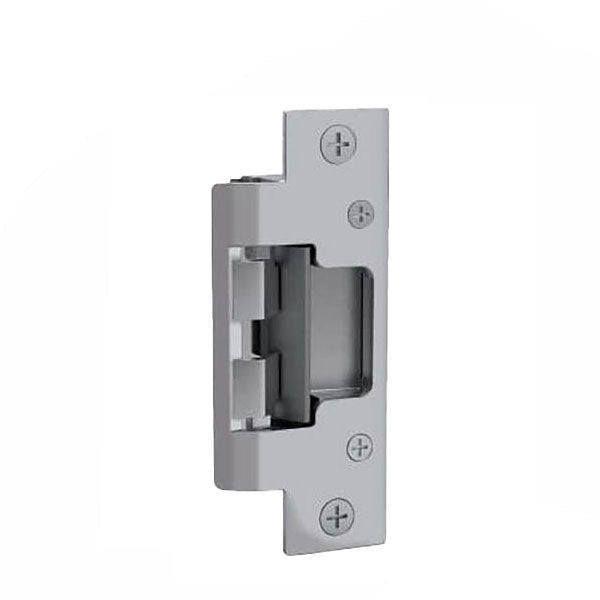

HES - 8500 - Complete Electric Strike - Fail Safe/Fail Secure - 12/24VDC - Up To 5/8" Throw Latchbolt - Satin Stainless Steel - Grade 1

HES - 8500 - Complete Electric Strike - Fail Safe/Fail Secure - 12/24VDC - Up To 5/8" Throw Latchbolt - Satin Stainless Steel - Grade 1

In stock
SKU HES-8500-630-LBSM NSID 69122
$426.92$512.30On Sale You save $85.38 (17%)
Get it shipped Today! Order within:

The 8000 series is a compact, high-performance electric strike featuring a unique concealed design for use with cylindrical locksets. No cutting on the frame is required. Simply remove the existing strike plate, adjust the vertical alignment feature to the latchbolt centerline, and install. Its strength is derived from a unique keeper pin locking design, enabling the 8000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8" throw.

Features:

  • No cutting of the face of the frame
  • Stainless steel construction
  • Tamper resistant
  • Static strength 1,500 lbs
  • Dynamic strength 70 ft-lbs
  • Endurance 500,000 cycles
  • Field selectable fail safe / fail secure
  • Dual voltage 12 or 24 VDC/VAC
  • Non-handed
  • Metal or Wood Frame
Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Ā

Specifications:

Frame Application: Metal, Wood
Adjustability: Vertical
Shim Type: NA
Latchbolt Accommodation: 1/2" - 5/8"
Voltage: 12/24
Monitoring Installation: Factory Configured
Monitoring Options: Latchbolt Monitoring
Endurance (cycles): 1,000,000
Dynamic Strength (ft-lbs): 70
Tamper Resistant: Yes
Grade: Grade 1
Warranty: 5 Year
Certifications: UL 1034, UL 294, UL 305, Grade 1,Ā RoHS Compliant
