HES - 9400 - Electric Strike - Fail Safe/Fail Secure - 12/24VDC - Surface Mounted - 1/2" Thickness - Satin Stainless Steel
- Product SKU: HES-9400-630
- NSID: 32801
-
HES-9400-630

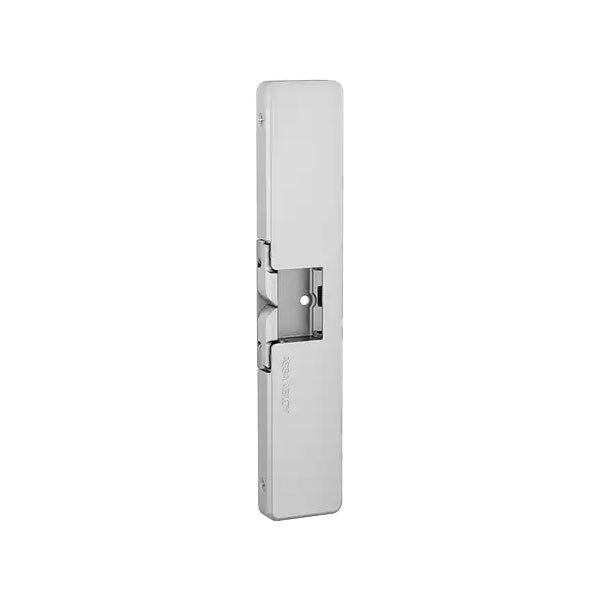

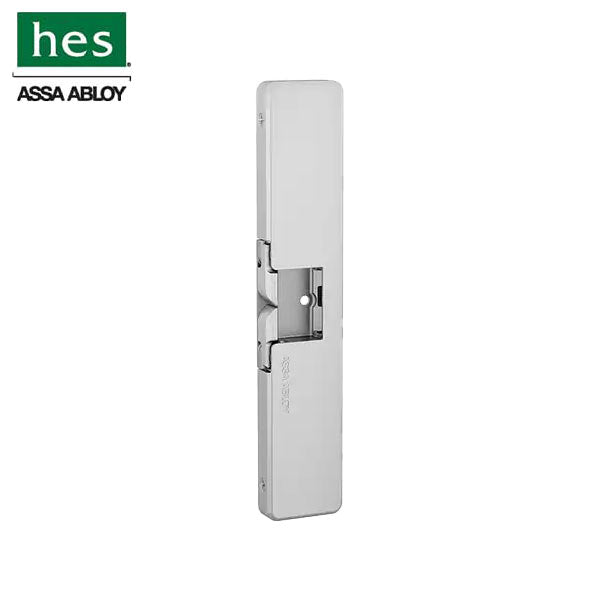

The HES 9400 series is a slim-line, outdoor rated surface mounted electric strike designed to accommodate rim exit devices with a 1/2" Pullman latch. All components are completely encased within its 5/8" thick stainless steel housing. No cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt, and install.
The HES 9400 ships with a 1/8" spacer plate to accommodate varying door gaps. The HES 9400 exceeds Grade 1 standards for strength and performance. It is field selectable for fail secure/fail safe operation, and for 12 or 24VDC. The HES 9400 features a smooth cover to conceal the mounting screws and provide a sleek surface for superior looks.
Features:
- Installs in metal and wood frames
- Completely surface mounted
- Decorative cover for sleek new look
- Stainless steel construction
- Tamper resistant
- Static strength 1,500 lbs.
- Dynamic strength 70 ft-lbs.
- Endurance 500,000 cycles
- 1/8" + 1/16" spacer plate included
- Field selectable fail safe/fail secure
Specifications:
| Frame Application: | Metal, Wood |
| Input Current: | 250 mA, 450 mA |
| Input Voltage | 12 V AC, 12 V DC, 24 V AC, 24 V DC |
| Strike Height: | 3.63" |
| Strike Width: | 1" |
| Finish: | 630 - Satin Stainless Steel |
| Warranty: | 5 Year |
| Certifications: | UL 1034, UL 294, UL 305, Grade 1, RoHS Compliant |
Downloads:
