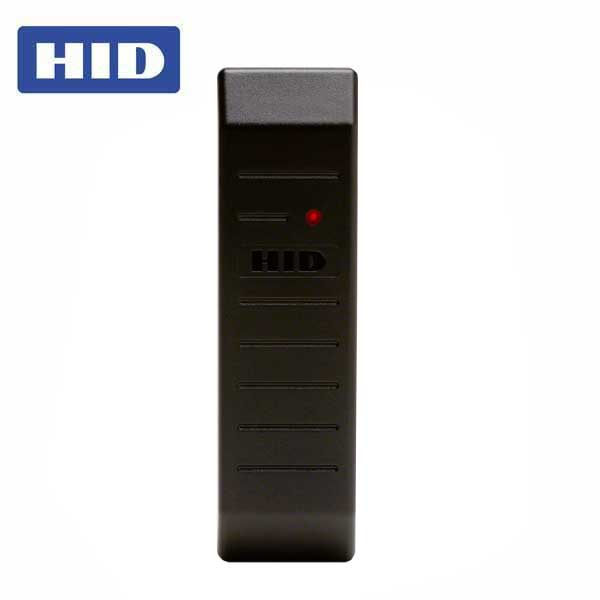

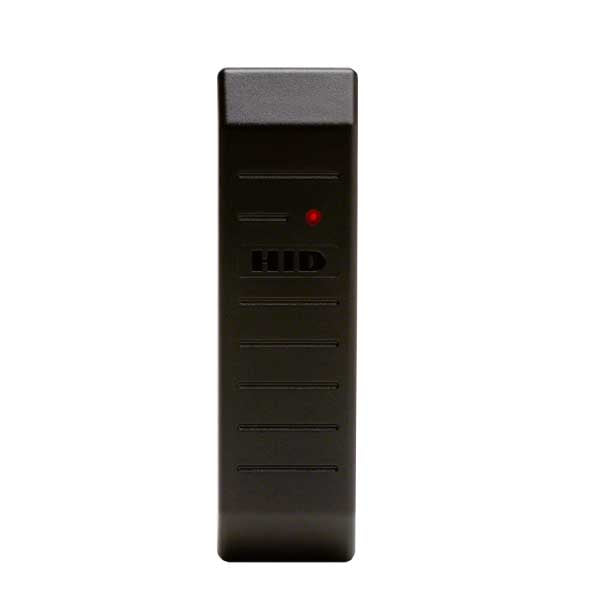

HID - 5365EGP00 - MiniProx Mullion Mount Proximity Reader - Wiegand - 18" Pigtail (125 kHz)
HID - 5365EGP00 - MiniProx Mullion Mount Proximity Reader - Wiegand - 18" Pigtail  (125 kHz)
HID - 5365EGP00 - MiniProx Mullion Mount Proximity Reader - Wiegand - 18" Pigtail  (125 kHz)
HID - 5365EGP00 - MiniProx Mullion Mount Proximity Reader - Wiegand - 18" Pigtail  (125 kHz)
HID - 5365EGP00 - MiniProx Mullion Mount Proximity Reader - Wiegand - 18" Pigtail  (125 kHz)

HID - 5365EGP00 - MiniProx Mullion Mount Proximity Reader - Wiegand - 18" Pigtail (125 kHz)

$209.00 $354.83
Available: In Stock
Wishlist
  • Product SKU: HID-5365EGP00
  • HID-5365EGP00
    Item Number: 8567

    The MiniProx® proximity card reader’s potted electronics enhance the security
    of the reader. The slim, attractive design is ideal for indoor or outdoor
    mounting.

    • Accepts 5 to 16 volts, meeting most voltage requirements.
    • Wiegand  interface.
    • Includes 8" Inch pigtail
    • Allows easy upgrade from magstripe to a proximity reader; no rewiring or pulling of new cable required.
    • Offers high reliability, consistent read-range and low power consumption in an easy-to-install package.
    • Mounts directly onto metal with no change in read range performance.
    • Provides multicolor LED, compatibility with all standard access control systems and internal or host control of LED and beeper.
    • Includes multilingual installation manual.

    $209.00



Typical Maximum Read Range
ProxCard® II Card - up to 5.5" (14 cm)
ISOProx® II Card - up to 5" (12.7 cm)
DuoProx® II Card - up to 5" (12.7 cm)
Smart ISOProx®/DuoProx® cards - up to 5" (12.7 cm)
Proximity & MIFARE® Card - up to 5" (12.7 cm)
ProxCard Plus® Card - up to 2" (5.1 cm)
ProxKey® II Keyfob - up to 2" (5.1 cm)
MicroProx® Tag - up to 2.5" (6.4 cm)

*Depending on local installation conditions.

Dimensions
6.0" x 1.7" x 1.0"(15.2 x 4.3 x 2.54 cm)

Power Supply
Standard MiniProx: 5-16 VDC
Haz. Loc. MiniProx: 5-16 VDC
Linear power supplies are recommended.

Current Requirements
Average: 30 mA (5 VDC); 20 mA (12 VDC)
Peak: 110 mA (5 VDC); 110 mA (12 VDC)

Operating Temperature
-22° to 150° F (-30° to 65° C)

Operating Humidity
0-95% relative humidity non-condensing

Weight
With terminal strip: 3.5 oz. (99 gm)
With pigtail: 3.8 oz. (108 gm)
Haz. Loc. MiniProx: 3.8 oz. (108 gm)

Cable distance
Wiegand interface: 500 feet (150 m)
Recommended cable is ALPHA 1295 (22 AWG)
5 conductor minimum stranded with overall shield or equivalent. Additional conductors may be required for LED or beeper control.

Downloads



HID-5365EGP00
Item Number: 8567

The MiniProx® proximity card reader’s potted electronics enhance the security
of the reader. The slim, attractive design is ideal for indoor or outdoor
mounting.

  • Accepts 5 to 16 volts, meeting most voltage requirements.
  • Wiegand  interface.
  • Includes 8" Inch pigtail
  • Allows easy upgrade from magstripe to a proximity reader; no rewiring or pulling of new cable required.
  • Offers high reliability, consistent read-range and low power consumption in an easy-to-install package.
  • Mounts directly onto metal with no change in read range performance.
  • Provides multicolor LED, compatibility with all standard access control systems and internal or host control of LED and beeper.
  • Includes multilingual installation manual.



Typical Maximum Read Range
ProxCard® II Card - up to 5.5" (14 cm)
ISOProx® II Card - up to 5" (12.7 cm)
DuoProx® II Card - up to 5" (12.7 cm)
Smart ISOProx®/DuoProx® cards - up to 5" (12.7 cm)
Proximity & MIFARE® Card - up to 5" (12.7 cm)
ProxCard Plus® Card - up to 2" (5.1 cm)
ProxKey® II Keyfob - up to 2" (5.1 cm)
MicroProx® Tag - up to 2.5" (6.4 cm)

*Depending on local installation conditions.

Dimensions
6.0" x 1.7" x 1.0"(15.2 x 4.3 x 2.54 cm)

Power Supply
Standard MiniProx: 5-16 VDC
Haz. Loc. MiniProx: 5-16 VDC
Linear power supplies are recommended.

Current Requirements
Average: 30 mA (5 VDC); 20 mA (12 VDC)
Peak: 110 mA (5 VDC); 110 mA (12 VDC)

Operating Temperature
-22° to 150° F (-30° to 65° C)

Operating Humidity
0-95% relative humidity non-condensing

Weight
With terminal strip: 3.5 oz. (99 gm)
With pigtail: 3.8 oz. (108 gm)
Haz. Loc. MiniProx: 3.8 oz. (108 gm)

Cable distance
Wiegand interface: 500 feet (150 m)
Recommended cable is ALPHA 1295 (22 AWG)
5 conductor minimum stranded with overall shield or equivalent. Additional conductors may be required for LED or beeper control.
