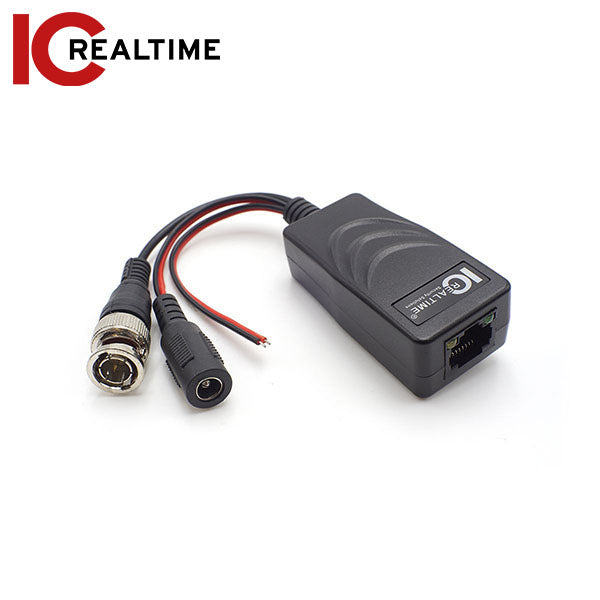

*Discontinued* IC Realtime - IVB-213VPD / 1-Channel PoE Passive Balun To Transmit Data - Video And Power 1080P Max Resolution / 2 Pack
Out of Stock
SKU:
ICR-IVB-213VPD
NSID:
68539
- $92.00
-
- $92.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
- Real-time transmission over UTP cat5e/6
- No power required | RJ-45 Jack for UTP cable
- Compatible with all HD- AVS/TVI/CVI/AHD/CVBS analog cameras
- Audio distance up to 984ft (300m) via UTP cat5e/6
- $92.00
-
- $92.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description

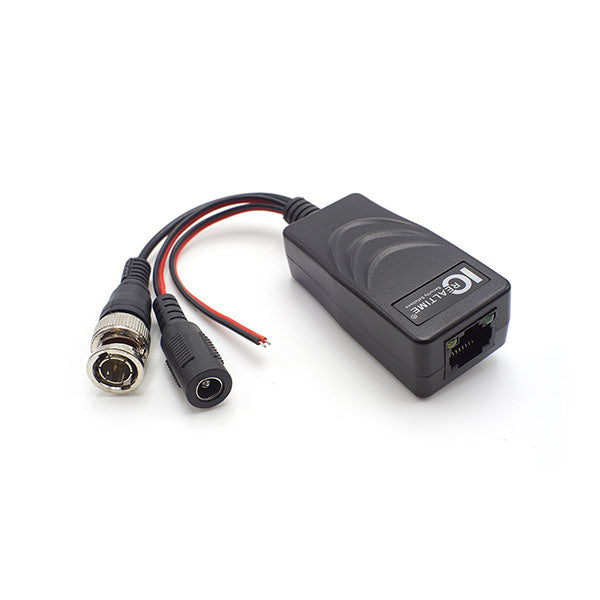

xThe IVB-213VPD video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV video signal via cost-effective unshielded Twisted Paired (UTP) cable. Baseband (composite) signals of any type are support.
Used in pairs, IVB-213VPD eliminates costly and bulky coaxial cable, allowing live CCTV color video signal up to 1312ft (400m), power transmission up to 656ft (200m) and PTZ signal up to 984ft(300m)
The superior interference rejection and low emissions of the IVB-213VPD allow video signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant. IVB-213VPD has built-in surge suppressor to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals.
