*Discontinued* IC Realtime - NVR-EL16-2U12MP1 / 16Ch Rack-Mount NVR - 80TB Max (Starting At 4TB HDD) / 2xRJ45 / 12MP IP Support / 320Mbps Bandwidth

If your camera installation uses cameras running on remote POE switches, IC Realtime’s new South Korean-made NVR-EL16-2U12MP1 is the ideal 16 channel, high-capacity 4k network video appliance for your system. This NVR’s massive 320Mbps thruput, Multi-Core processor, FlexSmartAI intelligent features, Dual IP, HDMI, and VGA ports, numerous alarm & expansion ports, and included rack ears make this 16 channel NVR the ideal surveillance camera core for any facility.

TAA COMPLIANT NETWORK VIDEO VAULT
NVR-EL16 is IC Realtime’s generation of NVRs and a worthy successor to our rock-solid NVR-6016K model it replaces. That unit was so dependable & successful that aside from our latest operating system & firmware upgrades, the NVR-EL16 is nearly identical to the previous unit - but made in South Korea to be fully TAA compliant. With its 2U chassis and the space & power requirements saved by off-boarding POE ports, the NVR-EL16 has room for 8 internal SATAIII hard drive ports and a large internal power supply. With the max 10TB hard drive in each port, the NVR-EL16 can support up to 80TB (800GB!) onboard storage in its sturdy rack-compatible frame.

12MP CAMERA & FISHEYE DE-WARPING
NVR-EL16 has the channel by channel flexibility to handle IP cameras up to 12-megapixel, with all 16 channels capable of 1080P and up to 4 channels at 4K resolution on the local display. The unit can also de-warp our famous 360° camera into flat, normal camera views. Like its predecessor, the NVR-EL16 is designed to be compatible with numerous third-party devices and work with video management systems. Open architecture ensures interoperability & integration with ONVIF 2.4 protocols for multiple IP-enabled solutions.

INDUSTRIAL-SCALE DETECTION INTELLIGENCE
As a FlexSmartAi recorder, the NVR-EL16 enables camera-based Intelligent Video System (IVS) capabilities on all 16 channels. Additional intelligence also empowers camera-based IMD (Intelligent Motion Detection) and perimeter protection, heat mapping, face detection & recognition, people counting to operate at full capacities.

MULTIPLE PORTS & INTERFACE CONNECTIONS

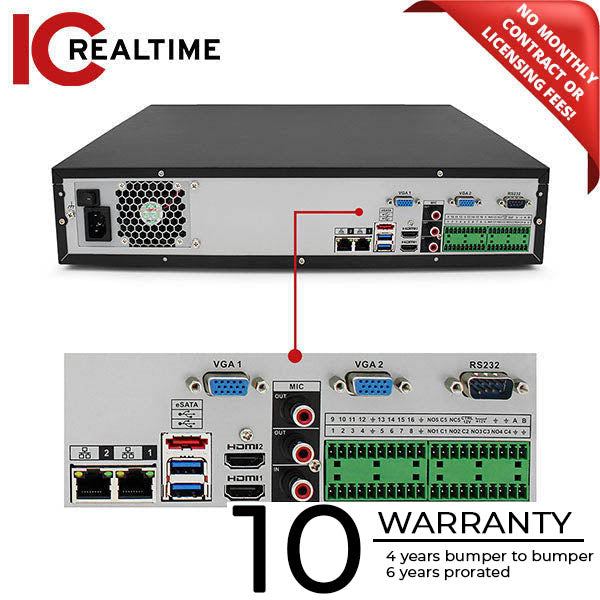

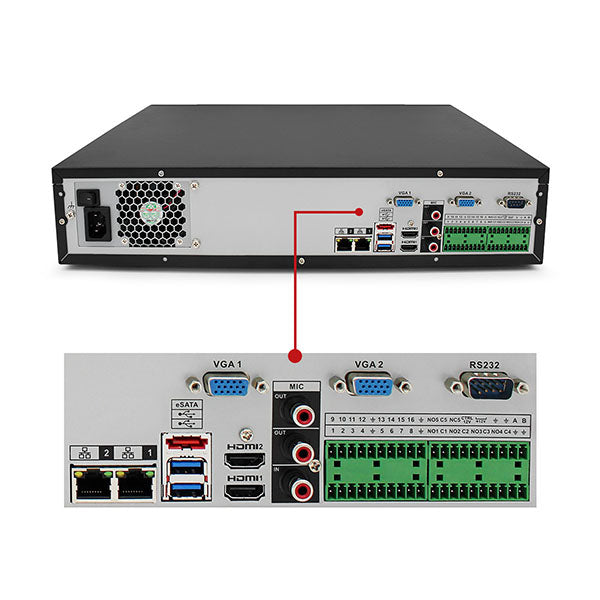

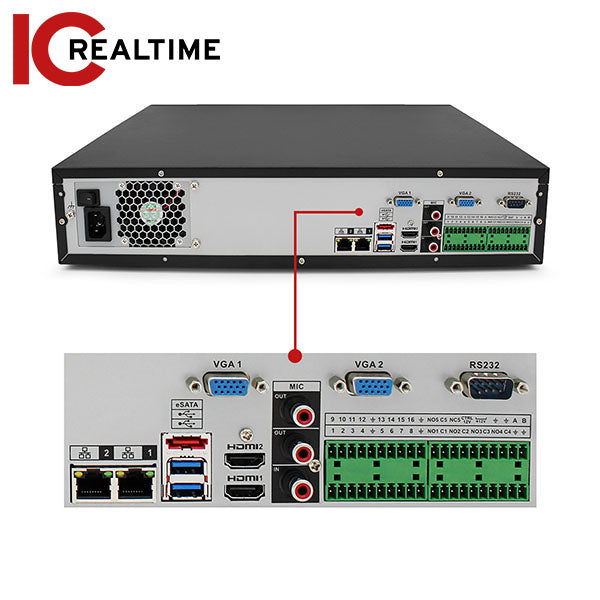

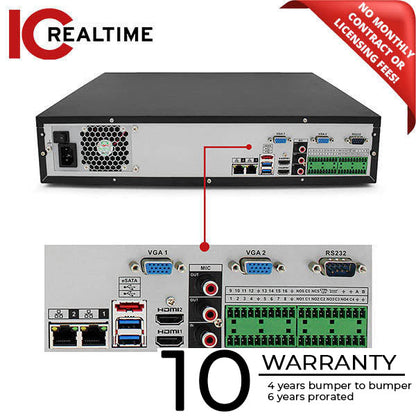

One look at the NVR-EL16’s backplane tells the unit’s extensive connection story. Besides the dual RJ-45 1000MB network ports, there are 2 HDMI outputs, 2 VGA outputs, 16 alarm inputs plus 6 outputs, an eSATA port, and a set of RCA jack audio in/out ports.

If your surveillance installation already has the network connections & switches to serve 16 IP cameras, then what you need is a 4K capable, commercial-grade head unit that can handle constant video feeds with dependable ease. Ideally, it will also enable professional-level intelligent detection and store huge amounts of footage onboard.  Lucky for you - you are already looking at your ideal choice because IC Realtime’s new TAA compliant NVR-EL16-2U12MP1 is the best 4K compatible, long-warranty, 16 channel network video recorder on the market today.

Downloads:

• Spec Sheet
• User Manual
• Quickstart
