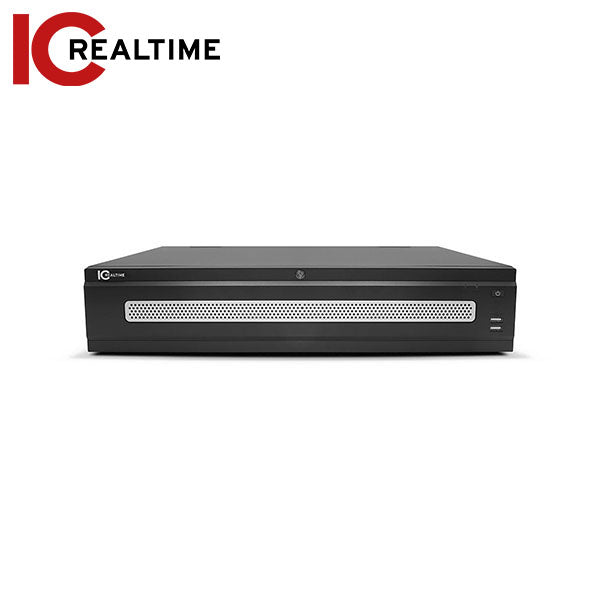

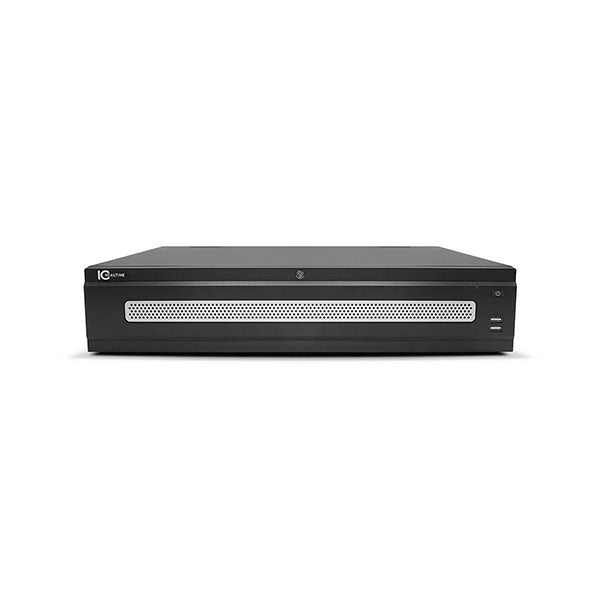

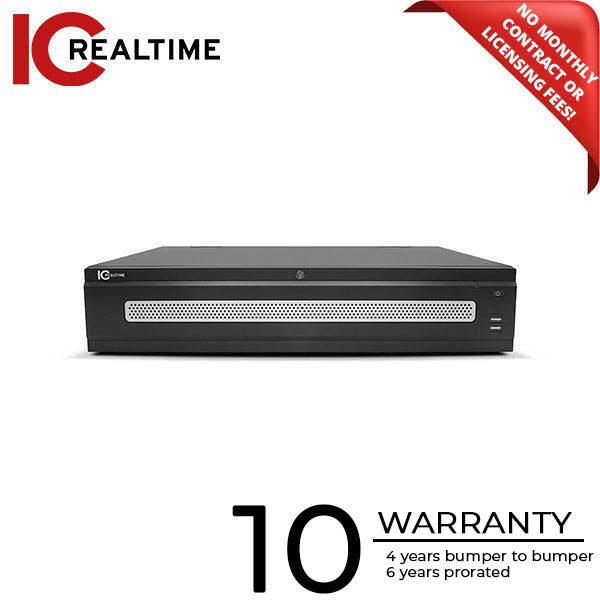

*Discontinued* IC Realtime - NVR-EL64-2U12MP1 / 64Ch Rack-Mount NVR. 80TB Max (Starting At 10TB HDD) / 2xRJ45 / 12MP IP Support / 384Mbps Bandwidth / TAA Complliant
- $6,984.00
-
- $6,984.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
- 64 Channels | Up to 12MP | 384Mbps Bandwidth
- 8 HDDs | 80TB Max (Starting at 10TB HDD) |RAID 0/1/5/6/10 Support
- ICR OS 4.0 | 2 Gigabit RJ-45 | AI + IVS Support
- 4 USB | Alarm 16/8 | 2 HDMI + 1 VGA
- ONVIF 2.4 | 2U | Rack Mountable
- Made in South Korea and conforms to the Trade Agreements Act (TAA)
- $6,984.00
-
- $6,984.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xWhen your system design says you need access to up to 64 channels of video storage with the video processing overhead & massive hard drive capacity to match, IC Realtime’s new South Korean-made NVR-EL64-2U12MP1 is the perfect answer. Its 2U chassis with space for up to 8 SATA III hard drives, TAA Compliant multicore embedded processor & 384Mbs of throughput is the ideal size for greenhouses, large warehouses or as the central video vault for local or remote camera feeds from fast food & retail locations.
ONE OF LARGEST NVRs AVAILABLE
The NVR-EL64 is IC Realtime’s second-largest NVR we currently sell in channel, second only to the behemoth 4U cased, 128 channel / 16 drive NVR-EL128-4U12MP1. By off-boarding POE ports, the NVR-EL64 has room for 8 internal SATAIII hard drive bays so with the max 10TB hard drive in each port, the NVR-EL64 can support up to 80TB onboard storage. The EL64 is the new replacement for our classic NVR-6064K industrial-grade NVR and features our new ICR O/S 4.0 with the totally redesigned Graphical User Interface and upgraded cybersecurity dashboard. Optimized for installations with a large number of camera locations, the EL64 is nonetheless capable of custom throughput allocations up to 20Mps per channel so it is capable of supporting as many as 12 - 4K cameras up to 12MP and had built-in de-warping capability for 360° cameras like our IPEL-F12F or IPEL-F50F.
HOT-SWAPPABLE 8 PORT “HARD DRIVE GARAGE”
While the NVR-EL64 shares many of its NVR-EL siblings’ awesome features like the Series South Korean dependability heritage, TAA certification, and 10 Year Limited Warranty, it has one unique feature shared only with its larger 128 channel cousin: A hot-swappable, front-access hard drive array with a flip-up access door that eliminates the need to de-rack and open the case to swap out hard drives. This “garage” space is easily accessible using a lockable front plate “garage door,” perfect for “hot-swapping” hard drives. This is especially important if you need to set up RAID arrays, and the EL64 supports multiple hard drive modes including single, Raid 0/1/5/6/10, Global HDD hot spare and includes digital records preserving “Hot Standby” capability to ensure a secure "failover" system where the slave instantly takes over a failed drive for immediate backup.
MASSIVE CHANNEL CAPACITY & CONNECTIONS IN A 2U RACK SPACE
All these features add up to the best solution if you need to support more than 32 video channels and need a single, high capacity 4k capable network video appliance that only takes up 2 rack spaces. EL64 shares the EL32’s huge processing capabilities and thruput, Linux OS & multicore processor, and 2 network ports that assign your network POE switch camera inputs on #2 to keep bandwidth available on net port #1 for NVR access. Dual IP and dual HDMI local monitor ports, and a VGA port for direct interface at the recorder, and the complete suite of FlexSmartAI intelligent features, RCA audio in/out for a 2-way talk system, 16 in & 8 out alarm ports. Like all of the EL-Series NVRs, 2U rack ears are included in the box. There’s an RS485 port for legacy PTZ control and even an RS232 port for external PC comm & keyboards.
ONVIF 2.4 CAMERA SUPPORT & NO PLUGINS NEEDED
Even if not all your cameras are IC Realtime, our wide-ranging OnVif 2.4 compatibility ensures they will work with the EL64. And say goodbye to the dreaded need to download & install plug-ins to view cameras - the new ICR 4.0 O/S is HTML5 compatible, allowing the NVR to be easily viewed by common browsers like Firefox and Chrome. Designed to be compatible with numerous third-party devices and work with video management systems, EL64’s open architecture endows it with interoperability for use in integration situations and works with multiple IP-enabled solutions.
DETECTION INTELLIGENCE
As part of the latest generation FlexSmartAi recorders, the new NVR-EL64 uses AI-enhanced detection systems and enables camera-based Intelligent Video System (IVS) capabilities on all channels. IMD (Intelligent Motion Detection) and perimeter protection, heat mapping, face detection & recognition, people counting are all supported.
Considering a 64 channel NVR for your installation means you have digital records requirements that need a serious, commercial-grade processing & storage solution that brings the latest in video management & analysis capabilities and is built with the quality & precision to deliver long-term reliability. When weighing your decision, take a look at any NVR’s warranty and you will see what the provider really thinks about the quality of their machines. IC Realtime’s 10 Year Limited Warranty is the longest of any in the industry. When your digital video security is paramount and you need 64 channels of the best there is, look no further than our new South Korean-made, TAA Compliant NVR-EL64-2U12MP1.
