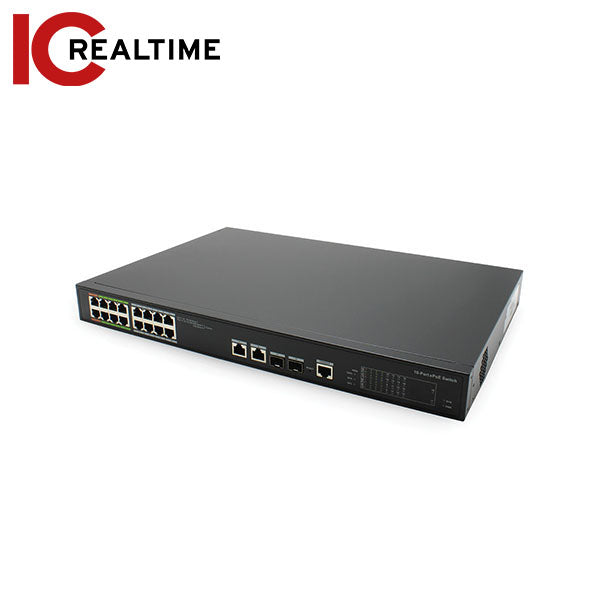

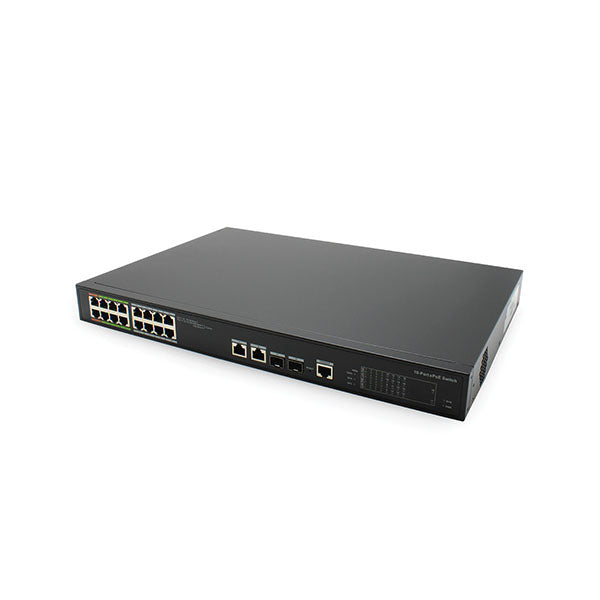

*Discontinued* IC Realtime - PWR-EPOE-16-V2 / Layer-Two Web-Managed EPoE Switch / Supports Long-Distance PoE Transmission Up To 800m With EPoE
Out of Stock
SKU:
ICR-PWR-EPOE-16-V2
NSID:
68525
- $1,150.00
-
- $1,150.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
- Supports long distance PoE transmission up to 800m with ePoE technology
- Ports 1-8 support ePOE and POC technology
- Both twisted-pair transmission and coaxial cable transmission.
- PoE management | Green PoE | Legacy Support
- Supports web and port management, 802.1Q VLAN, STP/RSTP, LACP, 802.1X, QoS
- IEEE802.3af, IEEE802.3at and Hi-PoE compliant
- $1,150.00
-
- $1,150.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xCamera installation pros know a strong POE switch can make all the difference in camera to recorder performance & reliability. That’s why IC Realtime’s new PWR-EPOE-16-V2 Layer-two web-managed ePoE switch is such a big deal for camera integrators. It goes above & beyond the call with 8-pin simultaneous CCAT5/6 data & power transmission, two 60W HI-POE ports for high-draw cameras, full POE management & control, and even full ePOE compatibility.
WIRING FREEDOM FOR NEW & UPGRADING SYSTEMS
ePOE can only be described as a gift to installers tasked with upgrading or replacing existing camera systems. PWR-EPOE-16-V2 not only provides a high switch supply voltage of 53VDC to ensure excellent overall CAT5/6 long-distance performance, it also supports ePOE and Power Over Coax technology. This allows using both coax cable and even twisted-pair for network camera & NVRS using our IVB-E102C and IVB-E202 baluns to reduce new wire pulls and simplify installations.
BUILT TO RUN LONGER & STRONGER
PWR-EPOE-16-V2 is capable of extended transmission range - up to 2600+ feet of data and power transmission - over 8x the distance of a standard IP switch. Where our original PWR-EPOE-16 was strong, version 2 is even stronger. The -V2 version adds upgraded POE management features while keeping the original’s IT manager pleasing control & tracking skills. With PWR-EPOE-16-V2, POE power stays on during a soft switch reset (including a web reboot, import configuration, or FW upgrade) so camera power never falters. PD Alive monitors switch PD status performance in real-time monitoring to keep it alive, and you can even schedule power to turn on/off on selected ports to save energy.
ADVANCED MANAGEMENT & 2 HIGH POE PORTS
PWR-EPOE-16-V2 can deliver up to 60W of HI-PoE power (IEEE802.3bt) on ports 1-2. These “orange ports” dish out up to 60W for power-hungry cameras like PTZs and multi-head & panoramic cameras and up to 30W on ports 3-16. Intelligent POE delivers priority power supply for ports with smaller port numbers to keep your most essential cameras live. PWR-EPOE-16-V2 is a layer-two web-managed network switch is backward compatible with standard PoE, it has a massive Power Over Ethernet budget of 240 watts, and both static discharge and lightning protection are built in.
IP POE camera systems need dependable POE power & constant streaming, and that’s precisely what PWR-EPOE-16-V2 is built to provide. When you add in its remote & automated switch management capabilities, it’s easy to see why any camera integrator would choose IC Realtime’s PWR-EPOE-16-V2 as their default camera POE switch choice.
WIRING FREEDOM FOR NEW & UPGRADING SYSTEMS
ePOE can only be described as a gift to installers tasked with upgrading or replacing existing camera systems. PWR-EPOE-16-V2 not only provides a high switch supply voltage of 53VDC to ensure excellent overall CAT5/6 long-distance performance, it also supports ePOE and Power Over Coax technology. This allows using both coax cable and even twisted-pair for network camera & NVRS using our IVB-E102C and IVB-E202 baluns to reduce new wire pulls and simplify installations.
BUILT TO RUN LONGER & STRONGER
PWR-EPOE-16-V2 is capable of extended transmission range - up to 2600+ feet of data and power transmission - over 8x the distance of a standard IP switch. Where our original PWR-EPOE-16 was strong, version 2 is even stronger. The -V2 version adds upgraded POE management features while keeping the original’s IT manager pleasing control & tracking skills. With PWR-EPOE-16-V2, POE power stays on during a soft switch reset (including a web reboot, import configuration, or FW upgrade) so camera power never falters. PD Alive monitors switch PD status performance in real-time monitoring to keep it alive, and you can even schedule power to turn on/off on selected ports to save energy.
ADVANCED MANAGEMENT & 2 HIGH POE PORTS
PWR-EPOE-16-V2 can deliver up to 60W of HI-PoE power (IEEE802.3bt) on ports 1-2. These “orange ports” dish out up to 60W for power-hungry cameras like PTZs and multi-head & panoramic cameras and up to 30W on ports 3-16. Intelligent POE delivers priority power supply for ports with smaller port numbers to keep your most essential cameras live. PWR-EPOE-16-V2 is a layer-two web-managed network switch is backward compatible with standard PoE, it has a massive Power Over Ethernet budget of 240 watts, and both static discharge and lightning protection are built in.
IP POE camera systems need dependable POE power & constant streaming, and that’s precisely what PWR-EPOE-16-V2 is built to provide. When you add in its remote & automated switch management capabilities, it’s easy to see why any camera integrator would choose IC Realtime’s PWR-EPOE-16-V2 as their default camera POE switch choice.
Downloads:
