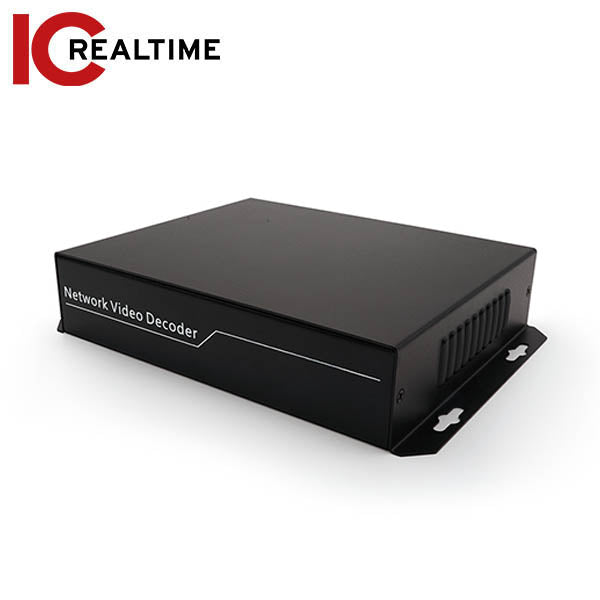

IC Realtime - STREAM-3s-016 / 16-Ch IP Camera Decoder Streaming Box / Hdmi, Vga And Bnc Video Outputs

Available to Order
SKU: ICR-STREAM-3s-016
NSID: 68496

Please Note: This product has a lead time

$590.00
$708.00
$590.00

The Stream-3s-016 is an innovative and extremely cost effective solution for the implementation of Spot monitor applications among IP and Analog Surveillance Installations. It’s the perfect solution over traditional use of expensive, service intensive often bulky PC solutions or the use of limited function single input decoders.The appliance is extremely ergonomic in design and installation and configuration can be carried out quickly without any disruption.The Stream-3s-016 runs completely independent to the DVR/NVR or VMS environment and setup and maintenance is done via the local on screen interface using the supplied wireless USB mouse or the Web management Interface.

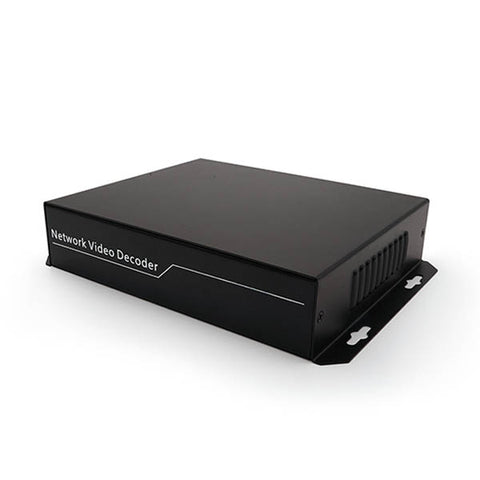

The Stream-3s-016 performance offers 8 channel ONVIF streaming with direct driver support for other camera manufacturers. It has 8 video channels with 64mb of incoming stream capacity and supports resolutions up to 5632x4224p. Compact in size and measuring only 190x155x45mm (WxDxH), the appliance can be installed discreetly behind public display monitors or above ceiling tiles. Incorporated in the Stream-3s-016 are HDMI, VGA & BNC Video Outputs allowing for connectivity to all types of monitors.This ensures for effective cost management where existing screens can be utilised when migrating from Analogue to IP technologies.The Stream-3s-016 is compatible with all IC Realtime recorders (Analog DVRs, AVS, AVRs and NVRs) and IP Cameras.

More Information Below:

  •
Call 1-800-878-6604 for Bulk / Dealer Pricing!
Video
Compression: Video: H.265, H.264
Audio: G.711A, G.711 ulaw, G726
Resolution: HDMI - 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768.
VGA - 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Interface

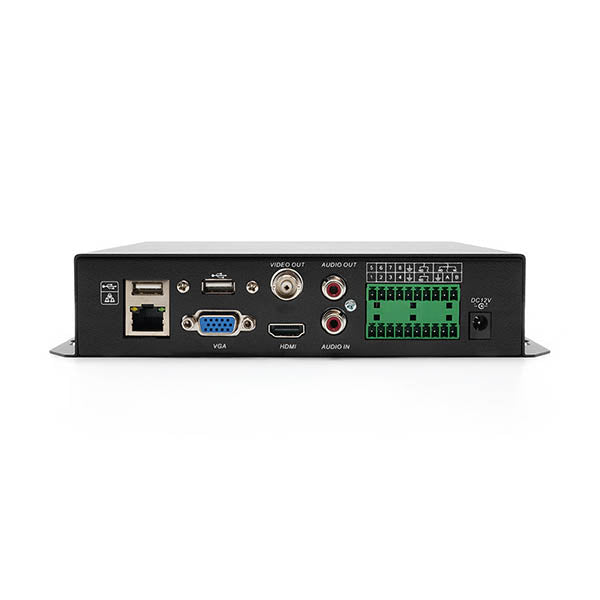

Video Interface: 1 1.4 HDMI, 1 VGA, 1 CVBS (BNC, 1.0Vp-p, 75 ohms)
RS485: 1 ch, Half-duplex
Alarm I/O: Input: 8 ch, switchable.
Output: 4 ch, Relay NO/NC
Factory Reset: .9 Kg
Electrical
Power Consumption: 6W
Environmental
Operating Conditions: -10° C - +55° C; 10% - 90% RH
