Ilco - Deadbolt Mortise Lock - Hookbolt - Storefront - 1-1/2" Backset - Clear/Dark Bronze Faceplate
In Stock
SKU:
ILCO-HB185-F-4-NH-SINGLE-628/313
NSID:
75751
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $20.59
-
$21.07 - $20.59
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

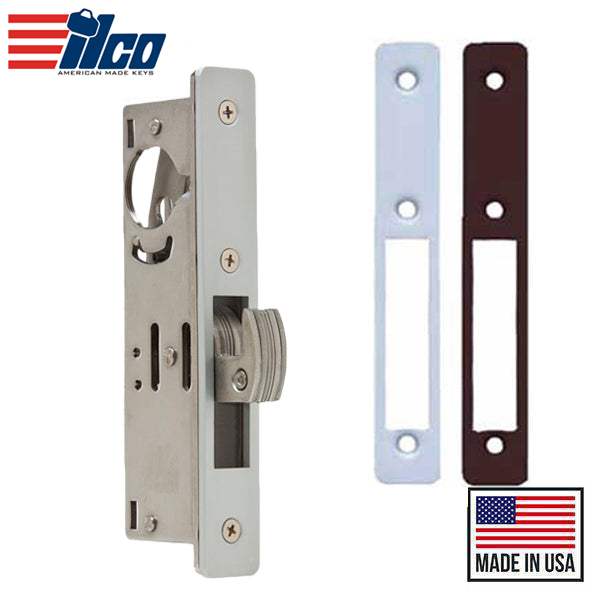

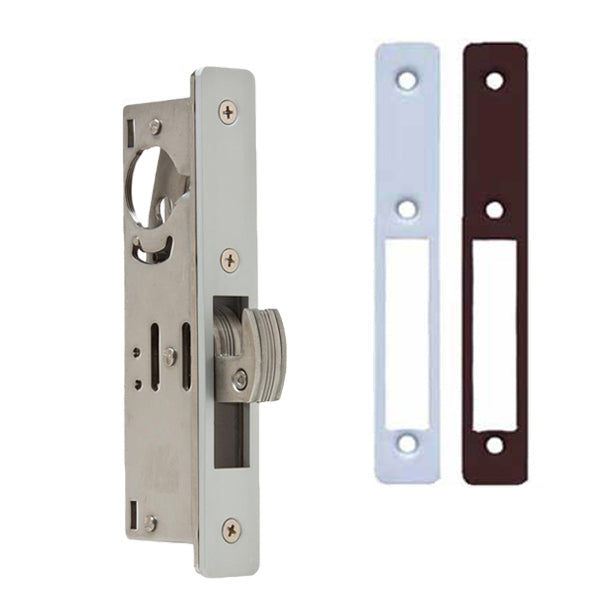

Storefront Hookbolt Mortise Lock HB185 - Flat, No Hand, 1 1/2 Backset, Single Pack, 628 / 313 Aluminum & Duranodic Faceplates
Features:
- Five-ply laminated steel bolt with concealed hardened steel pin provides maximum security on single-leaf doors
- Cycle testing exceeds ANSI Grade 1 standards
- Steel case with corrosion-resistant plating
- Accepts standard 1 5/32" (29.36 mm) Zinc or Brass threaded mortise cylinder or thumb turn
- Interchangeable with 451/452 Series Deadlatches
- Includes two faceplates - 628 / 313 Aluminum & Duranodic
- For Aluminum Stile Doors
Specifications:
| Face-Plate | Flat |
| Backset | 1 1/2" (38.1 mm) |
| Bolt | 5/8”W x 1-3/8" (15.88 mm x 34.925 mm) |
| Throw | 13/16" (20.6 mm) |
| Case | Steel with corrosion-resistant plating |
| Handling | Non-Handle |
| Packout | Single Pack |
| Finish | Aluminum and Dark Bronze |
