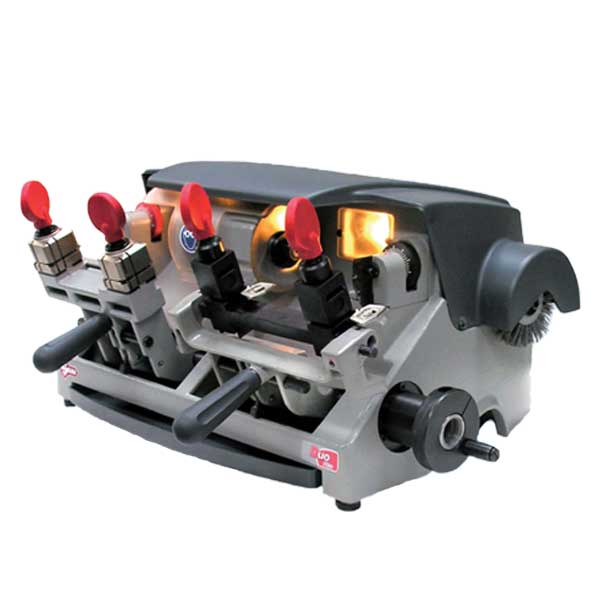

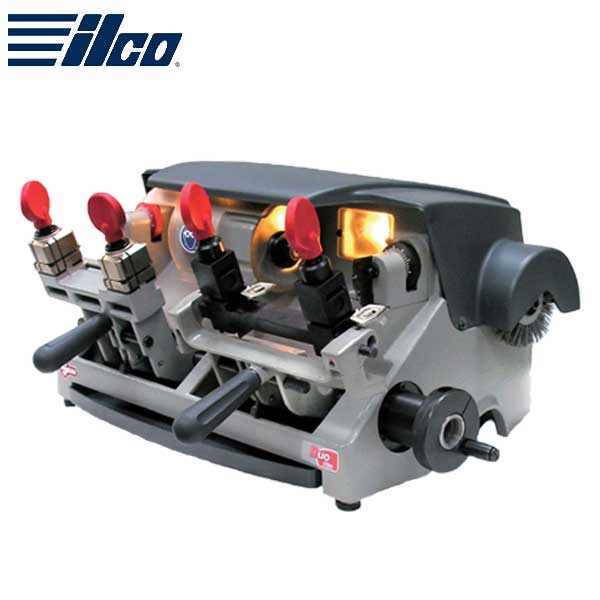

*Discontinued* Ilco - Silca Duo Plus - Mechanical Flat Key Duplicator - 120V - Factory Refurbished
*Discontinued* Ilco - Silca Duo Plus - Mechanical Flat Key Duplicator - 120V - Factory Refurbished
This is the ILCO Certified Refurbished version of the Duo Plus Key Machine. A Mechanical key-cutting machine for making copies of: flat cylinder and vehicle keys and cruciform keys (left-hand carriage); bit and double bit keys, post box keys and special keys such as Abus® and Abloy® type keys (right-hand carriage)
The Duo Plus key machine has an innovative release system to allow working with a free moving or regulated carriage. The four sided clamps allow virtually all flat keys on the present market to be cut. This machine is equipped with tracer point adjustment rings for precise calibration. Equipped with on board lighting and a pull out swarf tray, this machine is built for comfort and efficiency.
Details
- Flared cuts: the special tilting mechanism provided by the combination of a dedicated shaft and carriage movement makes it possible to make excellent flares on bit and double bit keys.
- Carriage movement: provided with an innovative release system to allow working with a free-moving or regulated carriage.
- Cylinder keys carriage: four-sided revolving clamps.
- Bit and double bit keys carriage: two/three sided revolving clamps with special gripping system for Abus® and Abloy® type keys.
- Operator safety: mobile cutter safety shield, cut-out switch that triggers automatically if power fails.
| Motor: | One-speed single phase |
| Power Supply: |
230V-50Hz; 1400rpm 120V-60Hz; 1700rpm |
| Movements: | By gear on rectified carriage |
| Cutters: | HSS (High Speed Steel) |
| Max Length of Cuts: | Flat Keys; 42mm Bit, Double Bit, Special Keys; 25mm |
| Brush: | BJ0929XXXX 3/8" (10 mm) Nylon |
| Dimensions: |
20" W x 17.7" D x 11" H |
