Jackson - 10 Series - RHR Rim Crossbar Exit Device - Crossbar Type - Narrow Stile Glass Doors - 48" - Grade 1 - 628 Satin Aluminum
- $239.00
-
$286.80 - $239.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

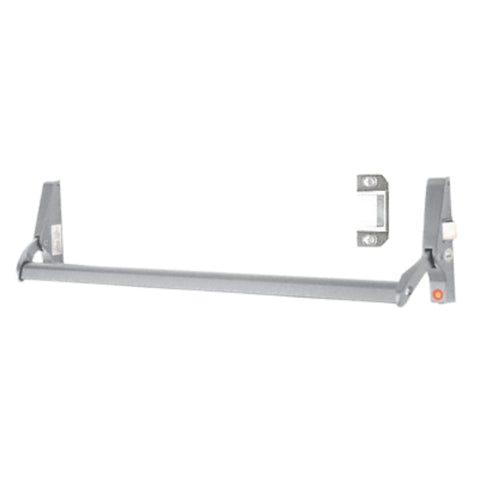

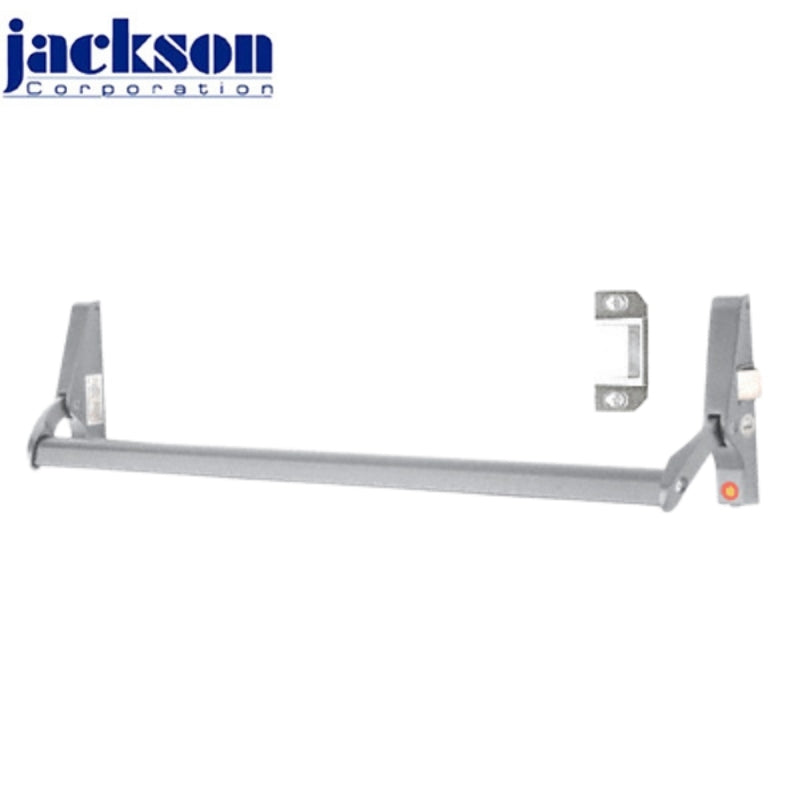

The Jackson® CRL - RHR Rim Crossbar Exit Device is engineered for narrow stile glass, aluminum, wood, or hollow-metal doors up to 48" wide and 1¾" thick. Crafted from high-tensile aluminum with a sleek satin aluminum (US28/628) finish, this Grade 1 panic hardware is ANSI/BHMA 156.3 certified, ensuring premium commercial safety compliance.
Featuring a field‑sizeable 48‑in contoured crossbar, dual dogging via cylinder or housing pins, and concealed fastening, it blends both aesthetic finesse and robust performance. Nylon-sleeved wear points and rollers ensure whisper‑quiet operation. The projection is 4‑5/8 in (117.5 mm). This right‑hand, reverse‑bevel model ships complete with mounting hardware and requires a rim cylinder (mounting pad not needed). Ideal for high‑traffic storefronts and emergency egress systems.
| Product Details | |
|---|---|
| Brand | Jackson |
| Certification | ANSI/BHMA 156.3 |
| Door Thickness | 1-3/4 in. (44.5 mm) |
| Door Width | 48 in. (1219.2 mm) |
| Finish/Color | Aluminum |
| Handing | Right Hand Reverse Bevel (RHR) |
| Includes | Mounting Hardware |
| Material - Housing | Aluminum |
| Material - Latch & Strike | Sintered Steel |
| Material - Mechanical Components | Stainless and Hardened Plated Steel |
| Minimum Stile Width | 1-3/4 in. (44.5 mm) |
| Model | 1095 |
| Panic Bar Projection | 4-5/8 in. (117.5 mm) |
| Panic Bar Width Net | 48 in. (1219.2 mm) |
| Panic Dogging | Screw Driver |
| Panic Head Base Width | 1-1/4 in. (31.8 mm) |
| Panic Head Height | 7-5/16 in. (185.7 mm) |
| Panic Type | Rim |
| Recommended Door Type | Narrow, Medium, Wide Stile, Aluminum, Wood, Hollow Metal |
| Replacement Parts | 30115, 30117628, 301409, DL9115CKDA, DL9115CKAA |
| Series | 10 |
| UL Listed | Yes |
