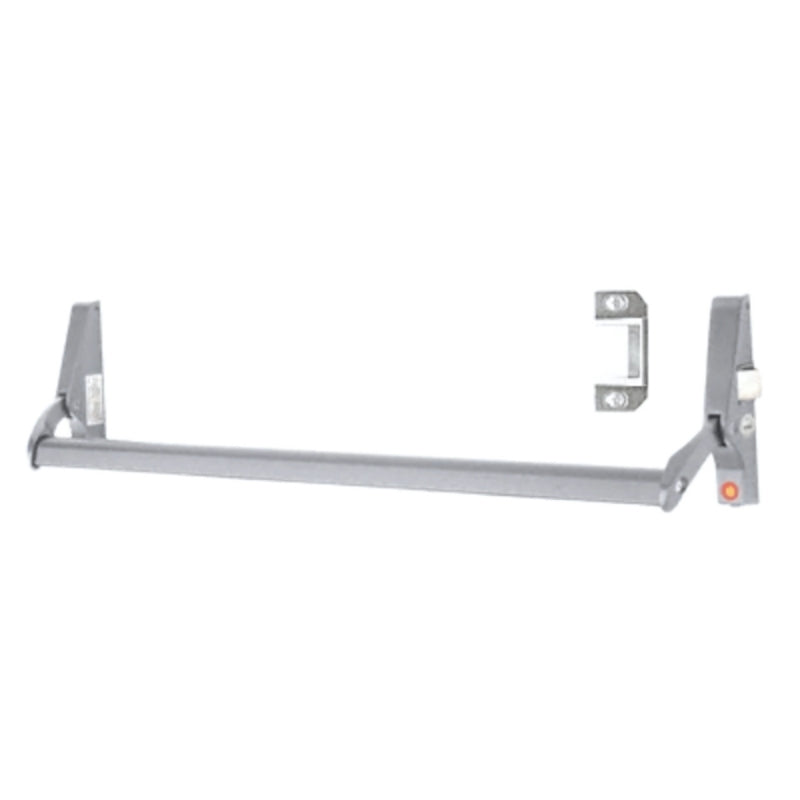

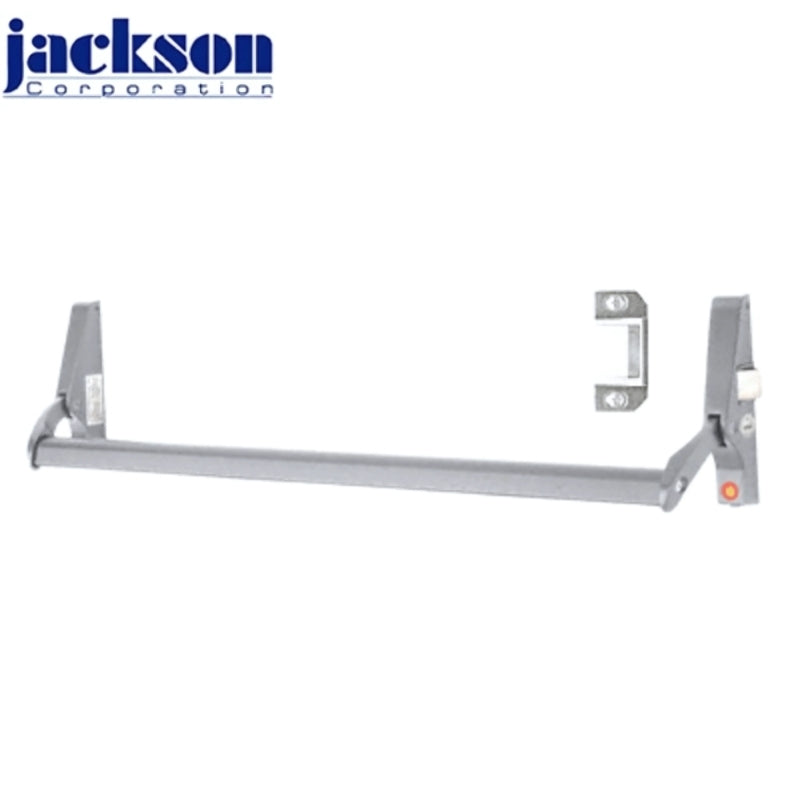

Jackson - RHR Rim Crossbar Exit Device - Crossbar Type - Narrow Stile Glass Doors - 48" - Grade 1 - 628 Satin Aluminum - CRL / CR
Out of Stock
SKU:
JAC-311095RC4628
NSID:
78602
- $140.32
-
$168.38 - $140.32
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Jackson 10‑Series RHR Rim Crossbar Exit Device is designed for narrow‑stile glass, aluminum, wood, or hollow‑metal doors up to 48″ wide and 1¾″ thick. Constructed with a high‑tensile aluminum housing and finished in satin aluminum (US28/628), this Grade 1 exit device meets ANSI/BHMA 156.3 certification. It features a field‑sizeable contoured 48″ crossbar, concealed fasteners, and dual dogging capability. Essential components are crafted from stainless and hardened plated steel, ensuring smooth, whisper‑quiet operation ideal for commercial storefronts and high‑traffic emergency egress systems.
Features:
- Designed for Use with 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum, Wood, or Hollow Metal Doors
- Available with Crossbar or Engraved "Push" Paddle Operation on Active Side
- Concealed Fastening for Added Security
| Technical Specifications | |
|---|---|
| Model | JAC‑311095RC4628 (Jackson 1095 Series – RHR) |
| Overall Bar Width | 48″ (1.22 m) |
| Door Compatibility | Up to 48″ wide and 1¾″ thick, narrow stile or standard |
| Panic Bar Projection | 4‑5/8″ (117.5 mm) |
| Panic Head Dimensions | Base width: 1¼″ (31.8 mm); Height: 7‑5/16″ (185.7 mm) |
| Housing Material | High‑tensile aluminum |
| Latch & Strike Material | Sintered steel |
| Internal Mechanisms | Stainless & hardened plated steel |
| Dogging | Dual-mode: Outside cylinder or housing pins |
| Fastening Type | Concealed |
| Minimum Stile Width | 1¾″ (44.5 mm) |
| Certification | ANSI/BHMA A156.3, UL Listed |
| Finish | 628 Satin Aluminum (US28) |
| Handing | Right Hand Reverse Bevel |
| Installation Hardware | Included (rim cylinder not included) |
| Series | Jackson 10 Series |
| Reinforcement Sleeves | Nylon sleeves & rollers |
| Suitable Door Types | Aluminum, wood, hollow metal; narrow to wide stile |
