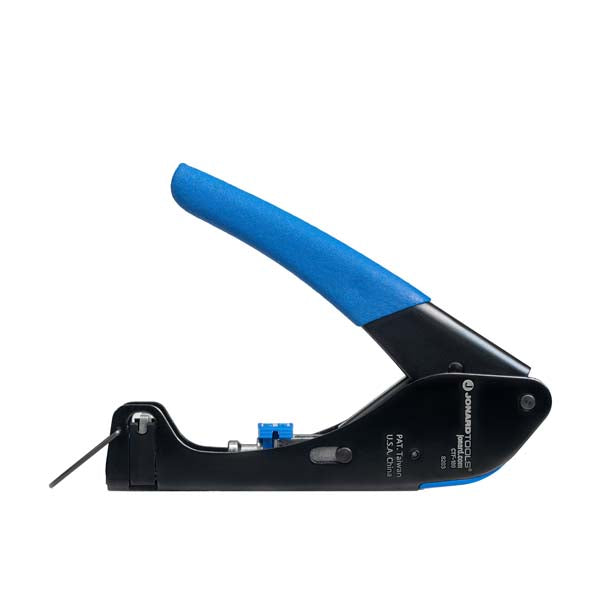

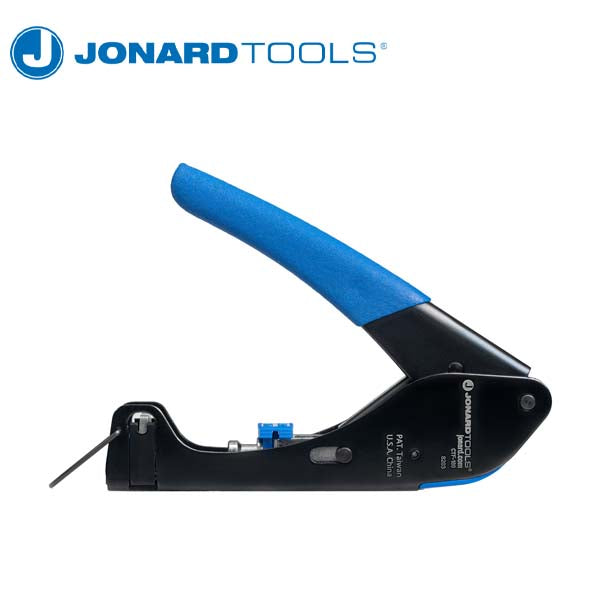

Jonard Tools - 360° Compression Tool - RG59 and RG6 Connectors
Available to Order
SKU:
JND-CTF-180
NSID:
44644
- $22.95
-
$26.34 - $22.95
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Jonard Tools 360° Compression Tool is designed for use on both short and long style F connectors. The tool is ideal for installing CATV network cables. It also features the following:
- 360° of F connector support designed to accommodate PCT connectors
- Compressed length of short and long connectors is 17.9 mm and 20.8 mm respectively, which can be used with most F connectors in conjunction with RG59 and RG6 COAX cables
- Made of durable high carbon steel with a black oxide finish and spring loaded design
- Plastic cushion grips make the tool rugged and provide a comfortable experience
- Integrated handle lock for storage
- Fixed design so no adjustments are needed
Compatible Connectors:
- PCT or other brand short and long style F connectors
Specifications
| Connector Type |
F Type for RG59 & RG6 COAX Cables |
|---|---|
| Material |
Carbon Steel |
| Dimensions | 5.5 in x 2 in x 1 in (13.97 cm x 5.08 cm x 2.54 cm) |
| Weight | 0.64 lb (290.56 g) |
| UPC # | 811490018464 |
