*Discontinued* Jonard Tools - Adjustable Round Hole Cutter - 2.2"-10"

*Discontinued* Jonard Tools - Adjustable Round Hole Cutter - 2.2"-10"

Discontinued
SKU JND-AHC-10 NSID 44562
$121.95

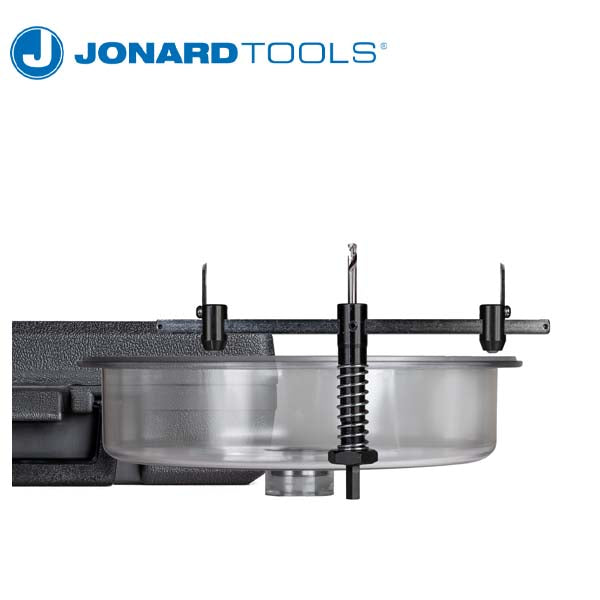

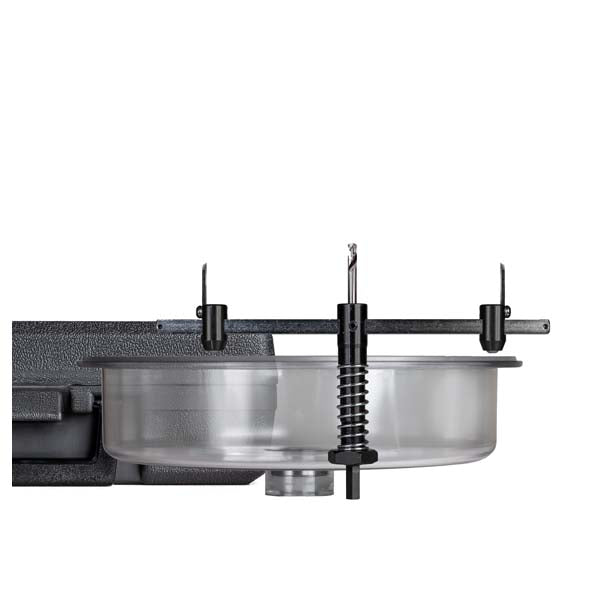

The Jonard Tools AHC-10 adjustable hole cutter is designed for cutting round holes in ceilings, walls, and floors and is the perfect tool for installing recessed speakers, lighting, or other round objects. This adjustable hole cutter features the following:

  • Cuts plywood, sheetrock, plasterboard, and acrylic sheet up to 1 1/16” (2.7 cm) thick
  • Cutting depth is adjustable via hex locknut and compression spring
  • Cuts hole sizes from 2.2” (55 mm) to 10” (254 mm)
  • Polycarbonate transparent dust shield collects dust and prevents chips from flying into eyes while cutting
  • Rubber gasket provides surface protection against damage, tight seal against flat surfaces, and prevents fallout from debris
  • Compression spring absorbs vibrations while cutting
  • Can be used with any variable-speed drill
  • Includes rugged carry case
  • Power drill not included with hole cutter
View full details

Details

    Specifications

      Cut Type

      Round Hole
      Works On

      Plywood, Sheetrock, Plasterboard, Acrylic Sheet
      Cutting Diameter Range

      2.2"-10" (56 mm-256 mm)
      Maximum Cutting Depth

      1.1" (27 mm)
      Bit Diameter

      0.236” (6.0 mm)
      Bit Length

      1.70” (43.27 mm)
      Bit Material

      Steel
      Hex Chuck Size/Arbor Size

      3/8" (9.53 mm)
      Dimensions

      13.5" x 4.6" x 14.1" (342 mm x 118 mm x 360 mm)
      Weight 2.53 lb (1148.62 g)
      UPC # 811490017764
