*Discontinued* Jonard Tools - Cable Mapper Pro

*Discontinued* Jonard Tools - Cable Mapper Pro

Discontinued
SKU JND-CM-100 NSID 44611
$99.95

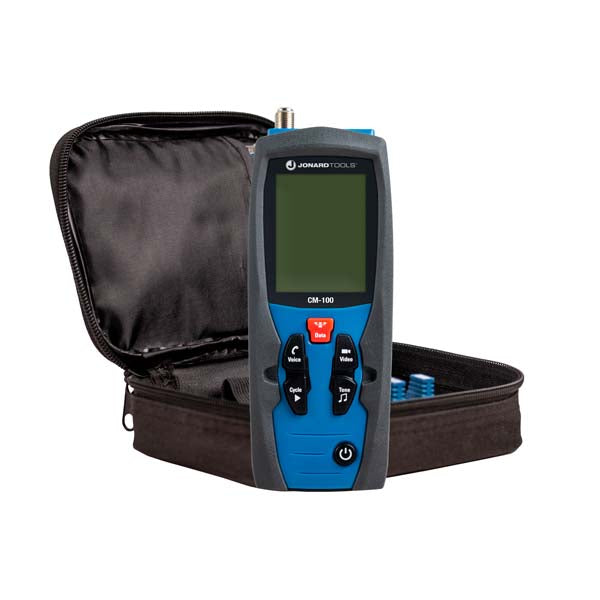

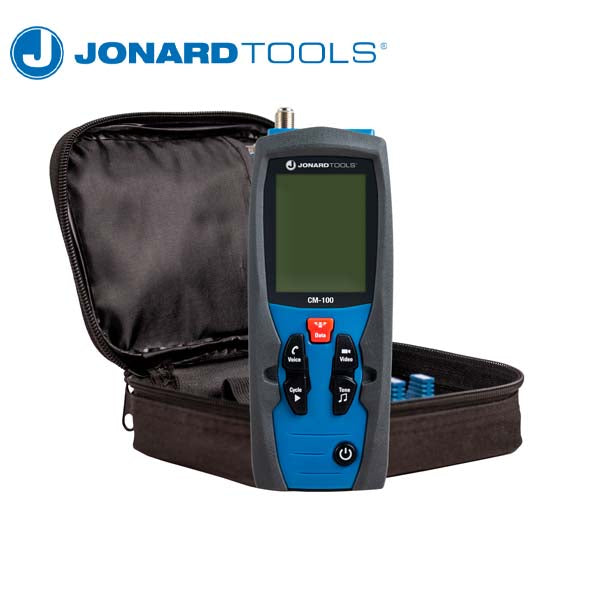

Designed for finding and identifying up to 8 COAX and network cables in main cable boxes, this cable mapper and toner is the perfect tool for use on cables for CATV, network installations, satellite installations, telephone systems, audio-video equipment, CCTV, and security & alarm installations. This 8-way cable mapper and toner kit features the following:

  • Maps up to 8 COAX or Network Cables simultaneously, up to 1,000 ft
  • Tone Generator makes it quick and easy to locate cables in wiring closets or patch panels
  • Tests Network and Telephone Cables using RJ11 or RJ45 connectors for shorts and wire mispairs
  • Backlit LCD clearly maps out connections and describes wiring faults when testing
  • Rugged rubber housing protects it from accidental drops and damage
  • Live voltage detection warns you if the cable is live
  • Powered by (2) AA Batteries (included) and automatically powers off after 30 minutes to conserve battery life
View full details

Details

    Specifications


      Includes

      Cable Mapper/Tester/Toner, 8 COAX Identifiers, 8 Network Cable Identifiers, 2 Data Patch Cords, Coax Patch Cord, Network Cable Remote, Rugged Nylon Case, 2 AA Batteries, and an Instruction Sheet
      Display

      Backlit LCD
      Max Cable Length

      1000 ft (304.8 m)
      Max DC Cable Resistance

      100 Ohms
      Batteries

      x2 AA
      Dimensions

      4.75" x 2.1" x 6.5" (12.1 cm x 5.3 cm x 16.5 cm)
      Weight 0.93 lb (422.22 g)
      UPC # 810053350874
