*Discontinued* Jonard Tools - COAX Cable Stub End Stripper (12 mm/7 mm)
Out of Stock
SKU:
JND-CSS-5127
NSID:
44630
- $27.95
-
$0.00 - $27.95
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

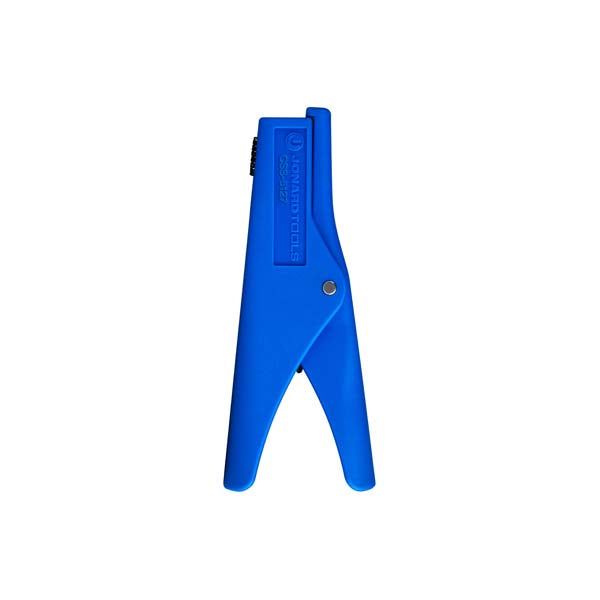

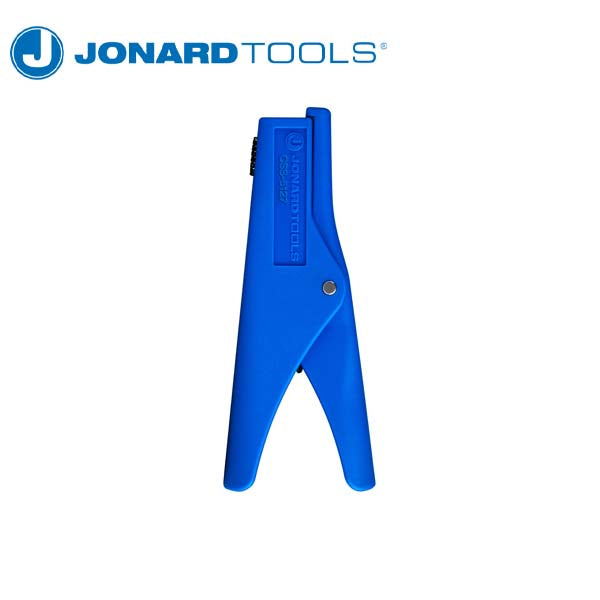

The CSS-5127 is a coaxial cable stripper specifically designed to strip the stub end of a coax cable in a wall outlet, exposing 12 mm of braid and 7 mm of the center conductor, which eliminates the need to run new cable. This coaxial cable stripper features the following:
- Easy to use: Simply insert cable, rotate like a screwdriver, and remove to strip
- Will not cut or damage the braid or score the center conductor
- High carbon steel blades last for over 5,000 strips on each side
- Hook and loop strip on bottom of tool is used to fold back braid on cable after being stripped
- Can be used with other blade cartridges, such as the CSS-105/115/120/125/130/135
- Replacement cartridge for this tool is: CSS-110
- $27.95
-
$0.00 - $27.95
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xBlade Replacement Instructions:
- To replace blade cartridge: open jaws and push upwards on the front of the blade cartridge. Cartridge will lift out.
- To install new blade cartridge: insert cartridge into tool and close jaws. Give the jaws a squeeze to insure the blade locks into place.
Specifications
| Cable Type |
COAX |
|---|---|
| Cable Size |
RG59 and RG6 |
| Strip Length |
Exposes 12 mm braid and 7 mm center conductor |
| Dimensions | 4.26 in x 1.19 in x 1.69 in (10.82 cm x 3.03 cm x 4.3 cm) |
| Weight | 0.07 lb (33.596 g) |
| UPC # | 811490019010 |
