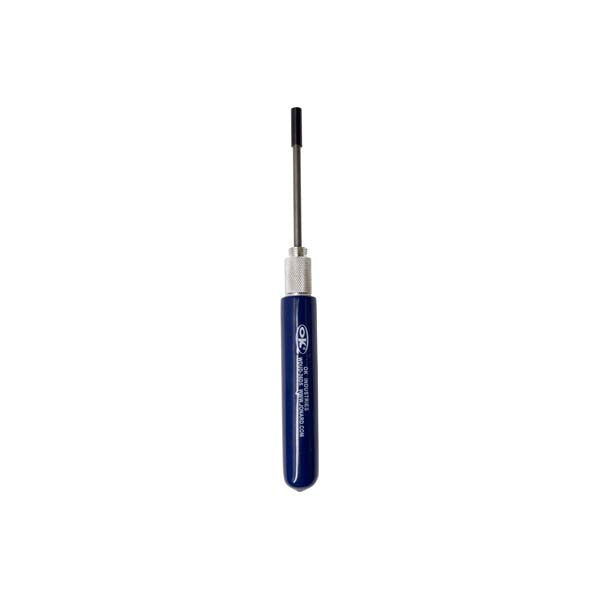

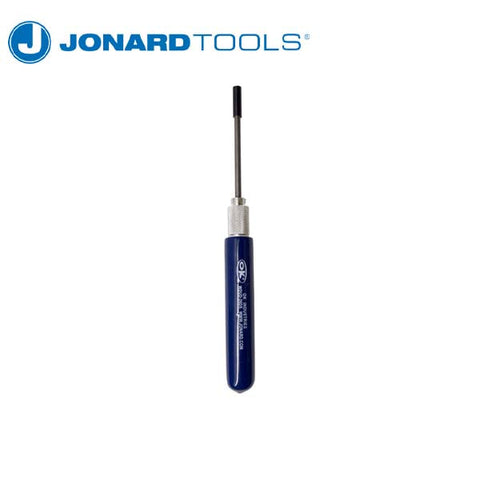

Jonard Tools - DSL Wrap and Unwrap Tool
- Product SKU: JND-WDUD-26DS
- NSID: 45389
-
JND-WDUD-26DS
Designed to wrap or unwrap DSL (Digital Subscriber Line) connections, this hand wrap tool is perfect for occasional wire wraps or where power wire-wrapping tools are not practical. This hand wrap tool also features the following:
- Switch from wrapping to unwrapping quickly by changing the cap from one end to the other
- Insulated handle for dielectric protection
- Wraps 26 AWG (0.40 mm) wire and unwraps 20-26 AWG (0.81 mm-0.40 mm) wire
Specifications
| Wrap Type |
Regular |
|---|---|
| Wrap Wire Gauge |
26 AWG (0.40 mm) |
| Wrap Terminal Hole Diameter |
0.075" (1.90 mm) |
| Wrap Terminal Hole Depth |
1" (25.40 mm) |
| Wrap Outside Diameter |
0.218" (5.54 mm) |
| Wrap Post Size |
0.045" (1.14 mm) |
| Unwrap Wire Gauge |
20-26 AWG (0.81 mm-0.40 mm) |
| Unwrap Terminal Hole Diameter |
0.070" (1.77 mm) |
| Unwrap Terminal Hole Depth |
1" (25.40 mm) |
| Unwrap Outside Diameter |
0.156" (3.96 mm) |
| Handle Type |
Insulated |
| Dimensions | 7.06 in x 0.62 in x 0.62 in (17.94 cm x 1.56 cm x 1.56 cm) |
| Weight | 0.09 lb (42.676 g) |
| UPC # | 811490013032 |
