Jonard Tools - Fiber Optic Power Meter (-50 to +26 dBm) w/ FC/SC/LC Adapters

Jonard Tools - Fiber Optic Power Meter (-50 to +26 dBm) w/ FC/SC/LC Adapters

Available to order
SKU JND-FPM-50A NSID 44742
$279.95$335.94On Sale You save $55.99 (17%)
Please Note: This product ships within 5 Days

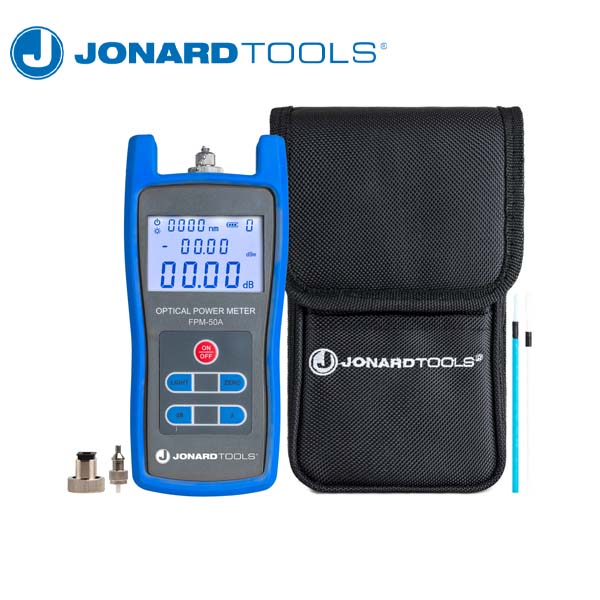

The Jonard Tools Fiber Optic Power Meter is perfect for measuring both the absolute optical power and relative power loss in fiber optic cables. This power meter features the following:

  • Measures a wide variety of wavelengths from 800-1650 nm, with a mere 0.01 dB resolution
  • Measures 6 preset calibrated wavelengths with high precision to determine absolute or relative power
  • Special function of the unit allows the device to be manually calibrated as needed
  • LED screen is backlit for viewing in low light locations and a 10 minute auto-off helps preserve battery life
  • Dust-proof button design and shatter-resistant sleeve protect the tool to last a lifetime
  • Comes with FC, SC, and LC adapters so that fiber connectors can be directly connected to the tool
    • The FC/SC adapters are for APC/PC/UPC connectors
    • The LC adapter is for PC/UPC connectors only
Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Includes:

  • Fiber Optic Power Meter
  • Instruction Manual
  • Protective Cover
  • (3) AA Batteries (required for operation)
  • (2) Cleaning Swabs
  • FC Adapter
  • LC Adapter
  • SC Adapter
  • Nylon Carry Case
Specifications


Connector Types

FC, SC (APC/PC/UPC) & LC (PC/UPC)
Calibrated Wavelengths (nm)

850, 980, 1300, 1310, 1490, 1550, 1625, 1650
Detector Type

InGaAs
Measurement Range

-50 dBm to +26 dBm
Single Mode Range

850, 980, 1300, 1310, 1490, 1550, 1625, 1650 nm, ≤ ± 0.25 dB
Multi Mode Range

850, 1300 nm, ≤ ± 0.8 dB
Resolution

0.01 dB
Operating Time

≥ 130 hours
Battery Type

(3) AA batteries
Dimensions

7" x 3.25" x 1.5" (17.78 cm x 8.26 cm x 2.54 cm)
Weight 0.5 lb (227 g)
UPC # 811490019966
