*Discontinued* Jonard Tools - Fiber Power Meter & Optical Light Source Kit (-50 to +26 dBm - single-mode)

*Discontinued* Jonard Tools - Fiber Power Meter & Optical Light Source Kit (-50 to +26 dBm - single-mode)

Discontinued
SKU JND-FPL-5050 NSID 44741
$599.95

This tool kit provides everything you need to measure power and provide a stable light source for fiber optic cable testing. The FPL-5050 Fiber Power Meter & Optical Light Source Kit (-50 to +26 dBm, single-mode) includes:

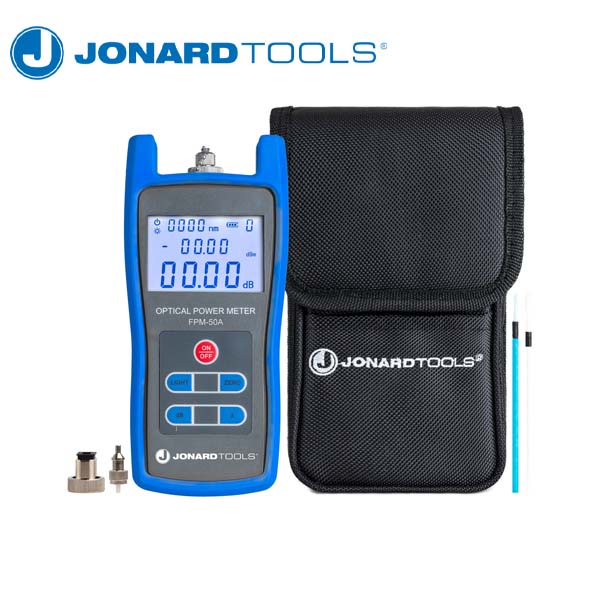

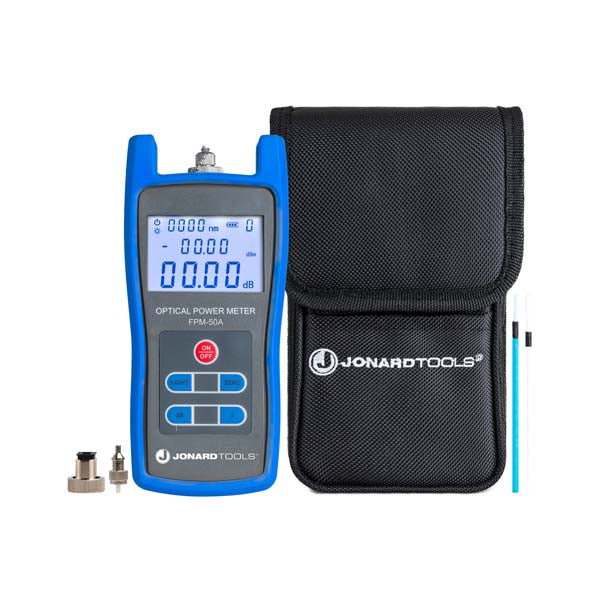

  • The FPM-50A Fiber Optic Power Meter to measure wavelengths from 800-1650 nm, with a mere 0.01 dB resolution
    • Measures 6 preset calibrated wavelengths with high precision to determine absolute or relative power
    • Includes FC/SC adapters for APC/PC/UPC connectors and an LC adapter for PC/UPC connectors only
View full details

Details

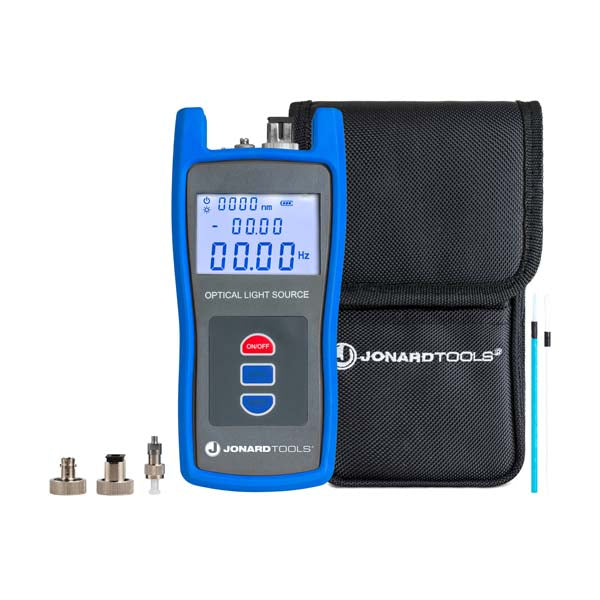

  • The FLS-50 Fiber Optic Light Source to provide either 1310 nm or 1550 nm wavelengths for a stable light source for single-mode fiber measurements
    • Has four different modulation outputs (CW, 270 Hz, 1 kHz, 2 kHz) at 1310 nm and 1550 nm wavelengths
    • Includes FC, SC, and LC adapters to directly connect to UPC/PC FC, SC, and LC fiber connectors
  • A FREE BAG! The H-22 Rugged Carrying Case with Straps ($35 value)!
  • Nylon Carry Case (FPM-50A)
  • Protective Cover (FPM-50A)
  • Storage Pouch (FLS-50)
  • With both the FPM-50A and FLS-50
    • Instruction Manuals
    • (3) AA Batteries each (required for operation)
    • (2) Cleaning Swabs each
    • FC Adapter, LC Adapter, and SC Adapters

    • Click Here for a full list of our 2021 Product Winners

      Specifications


        Connector Types

        FC, SC (APC/PC/UPC) & LC (PC/UPC)
        Power Meter Wavelengths

        850, 980, 1300, 1310, 1490, 1550, 1625, 1650
        Light Source Wavelengths

        1310, 1550
        Power Measurement Range

        -50 dBm to +26 dBm
        Dimensions 10.5 in x 8.5 in x 6 in (26.67 cm x 21.59 cm x 15.24 cm)
        Weight 3.5 lb (1589 g)
        UPC # 810053350492
