*Discontinued* Jonard Tools - Mid Span Slit & Ring Tool (7.9 mm-11 mm)

*Discontinued* Jonard Tools - Mid Span Slit & Ring Tool (7.9 mm-11 mm)

Discontinued
SKU JND-MS-336 NSID 44986
$123.95

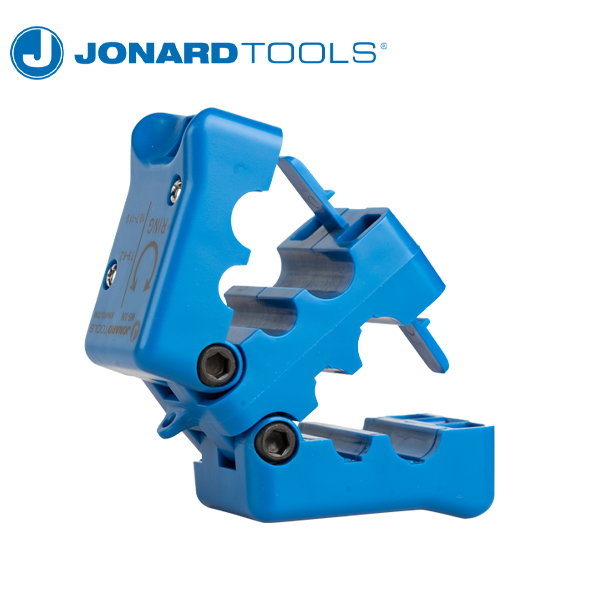

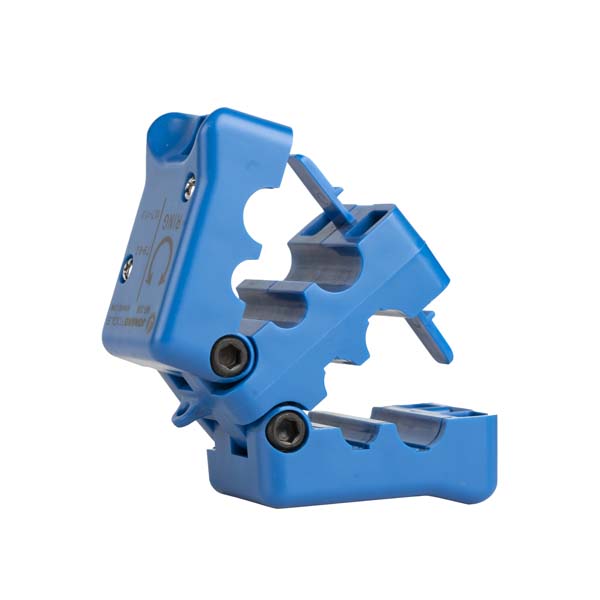

The PATENTED MS-336 Mid Span Slit and Ring Tool is designed to provide easy access to optical fibers in thin walled outer jacketed cables. The MS-336 is an extension of the MS-326 series tool targeting larger cables such as Cornings Minixtend HD 288 and 432 fiber count cables.

  • Consists of 2 precision slitting grooves and 2 precision ring grooves ranging in sizes from 7.9-8.2 & 10.7-11 mm
  • One side of tool performs Radial/ring cuts and the other side slits the cable (longitudinal cut)
  • Indicator line on top of the unit indicates the position of the blade for accurate slitting and ringing
  • This tool is specifically designed for use on Corning Minixtend HD 288F and Minixtend HD 432F cable. Both with FastAccess
  • Replacement blades available, part number MS-336RB
  • Blades last at least 5,000 slits/cuts
View full details

Details

Groove Sizes: 7.9-8.2 | 10.7-11.0 mm

Specifications


Cut Type

Slit, Ring
Number of Slitting Grooves

4
Number of Ringing Grooves

4
Cable Type

Corning's Minixtend HD 288 and 432
Cable Diameter

7.9 - 11 mm
Dimensions

2.3" x 1.5" x 2.2" (58.4mm x 38.1mm x 55.9mm)
Weight 0.18 lb (80.812 g)
UPC # 811490014770
