Jonard Tools - Modified Wire Wrapping Bit - 22-24 AWG

Jonard Tools - Modified Wire Wrapping Bit - 22-24 AWG

Available to order
SKU JND-WB224M NSID 45372
$66.95$80.34On Sale You save $13.39 (17%)
Please Note: This product ships within 5 Days

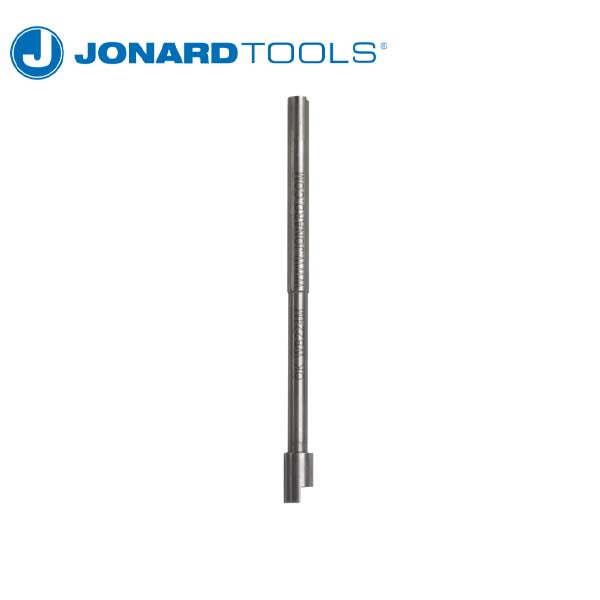

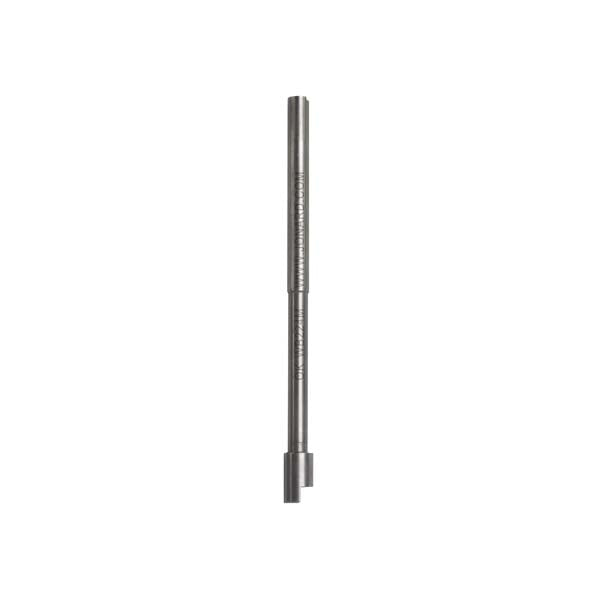

Fully compatible with any make or model of wire wrapping tools, this 3" modified wire wrapping bit is perfect for wrapping 22-24 AWG wire around binding posts when used in conjunction with a wire wrapping tool.

  • Provides one and a half turns of insulation per wire wrap, increasing the mechanical stability the wrap
  • Recommended for use on 0.025" (0.63 mm) square terminals with 0.100" (2.54 mm) center-to-center of the pins

    • Compatible Wrap Sleeve Part #: P2224 and P2224INS

      Call 1-800-878-6604 for Bulk / Dealer Pricing!
      View full details

      Details

      Specifications


        Sleeve Part No.

        P2224 and P2224INS (sold separately)
        Wrap Function

        Wrap
        Wrap Type

        Modified
        Wire Gauge

        22-24 AWG (0.65 mm-0.50 mm)
        Maximum Insulation Diameter

        0.05" (1.27 mm)
        Minimum Terminal Diagonal

        0.049" (1.24 mm)
        Maximum Terminal Diagonal

        0.074" (1.87 mm)
        Terminal Hole Depth

        1.25" (31.75 mm)
        Terminal Hole Diameter

        0.075" (1.9 mm)
        Effective Radius

        0.121" (3.07 mm)
        Wrap Post Size

        0.045" (1.14 mm)
        Dimensions 3.11 in x 0.23 in x 0.22 in (7.89 cm x 0.59 cm x 0.55 cm)
        Weight 0.02 lb (7.264 g)
        UPC # 811490013094
