Jonard Tools - Pulley for Low Voltage Electrical - Network - & COAX Cables (2 pack)
- Product SKU: JND-CP-475
- NSID: 44616
-
JND-CP-475

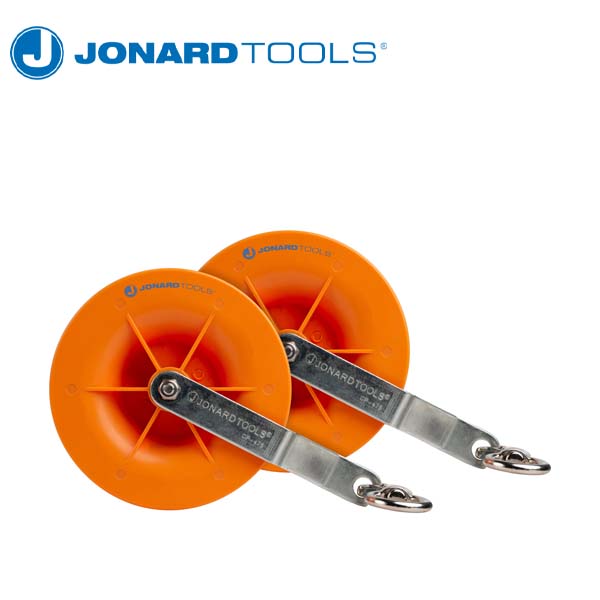

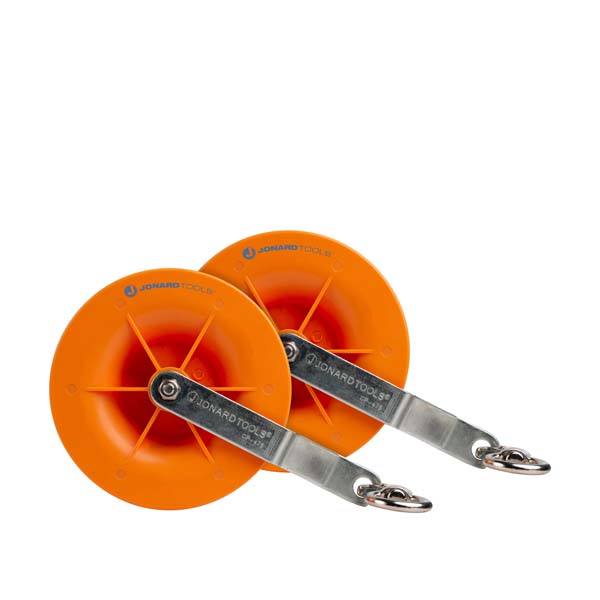

The CP-475 is a set of two cable pulleys designed to help install electrical, COAX, network, and other various low voltage cables. With their swivel snap hooks, deep grooves, and anti-friction bearings, these pulleys keeps cables aligned with the direction of the pull, preventing snags and kinks.
- Holds up to 20 CAT5/6 network cables
- Swivel snap hook installs easily and keeps pulley aligned with direction of pull to prevent kinks
- Anti-friction roller bearings and deep grooves allow cable to be pulled smoothly and easily
- Made from a high strength ABS plastic and zinc coated steel to provide enhanced durability and longer life
- Easy to remove the pulley after cable is installed
- Includes (2) pulleys
Specifications
| Number of Cables |
Up to 20 |
|---|---|
| Maximum Weight Capacity |
120 lb (54.43 kg) |
| Channel Width |
1.43" (36.41 mm) |
| Diameter |
4.75" (12.07 cm) |
| Pulley Weight |
.63 lb each (287.58 g) |
| Total Weight |
1.27 lb (576.06 g) |
| Length | 4.75(12.065cm) |
| Weight | 1.27 lb (576.58 g) |
| UPC # | 810053350805 |
