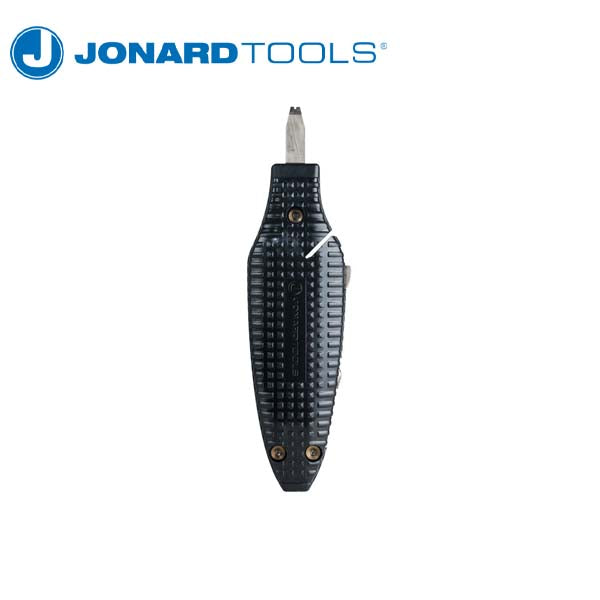

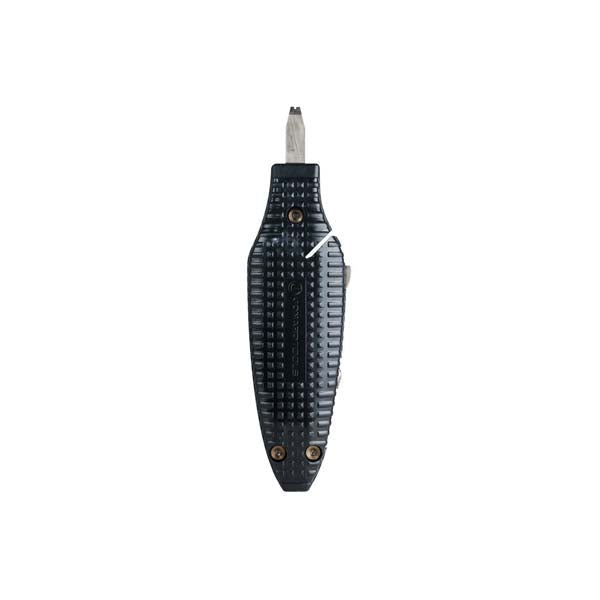

Jonard Tools - Quick Clip Insertion Tool
Available to Order
SKU:
JND-JIC-950C
NSID:
44901
- $184.95
-
$222.44 - $184.95
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Designed to cut and insert 22 and 24-gauge wire into terminal blocks, this multipurpose wire insertion tool is the perfect tool for performing several critical functions for wire insertion. This insertion tool features the following:
- Wire cutter cuts 22 and 24 AWG (0.65 mm and 0.51 mm diameter) wire
- Hook on back of unit is used for jumper and back-tap removal
- Bit inserts 22 and 24 AWG (0.65 mm and 0.51 mm diameter) wire into the appropriate terminal block
- Ideal for use on 3-beam (112-type) and 4-beam (78-type) terminal blocks in Cosmic & Cosmic II distributing frames
Specifications
| Block Type |
3-beam (112-type) and 4-beam (78-type) terminal blocks |
|---|---|
| Functions |
Insertion, Cutting |
| Cable Diameter |
22 and 24 AWG (0.65 mm and 0.51 mm diameter) |
| Dimensions | 6 in x 1.75 in x 1.21 in (15.24 cm x 4.45 cm x 3.07 cm) |
| Weight | 0.28 lb (126.212 g) |
| UPC # | 811490011991 |
