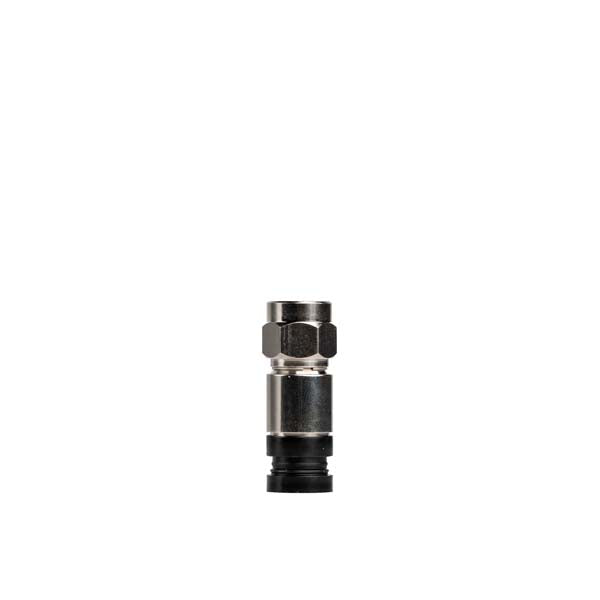

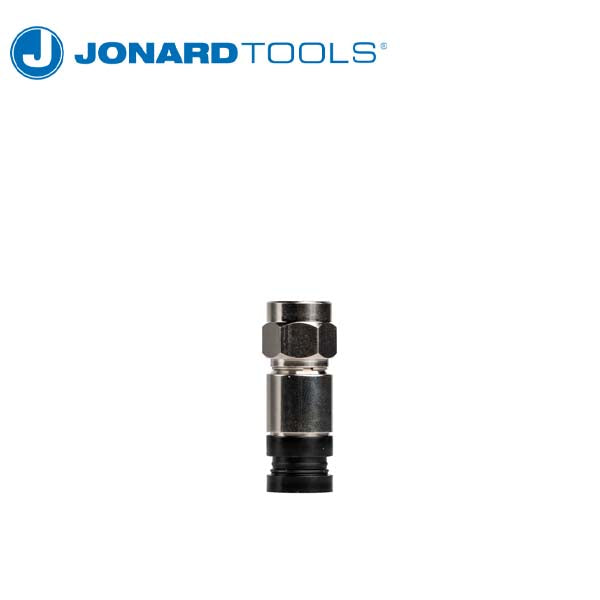

*Discontinued* Jonard Tools - RG6 Connectors (Pack of 50)
- $37.95
-
$0.00 - $37.95
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
These RG6 connectors are universal compression connectors, ideally suited for professional and consumer use. The one-piece design of these connectors makes them simple to use and provides a secure 360° compression seal, resulting in maximum RF shielding performance. The all-metal design of the connector body and nut allows for unparalleled electrical and mechanical performance. The detachably coupled advanced polymer compression system is pre-positioned to ensure a consistent fit with the cable. These connectors also feature the following:
- The universal one-piece, all-metal design works with Standard, Trishield, and Quadshield RG6 cables
- Detachably coupled, advanced polymer compression system compresses the connector perfectly each time
- Triple internal weather sealing prevents moisture from entering cable without the use of an external weather grommet
- Standard 5/16" - 1/4" cable preparation using industry-standard preparation tools
- Superior RF performance at CATV and satellite TV frequencies
- Quickshield® ground feature provides weather sealing to prevent signal ingress and egress
- Works with our CTF-200, CTF-230, and CT-200 COAX Compression Tools
- $37.95
-
$0.00 - $37.95
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications
| Connector Size |
RG6 |
|---|---|
| Connector Type |
Q II F-Type Compression Connector (Series 6 Universal Design) |
| Plating Material |
Nickel |
| Return Loss |
> 30 dB (5-1000 MHz) |
| Shielding Effectiveness |
> 95 dB (0-300 MHz), > 70 dB (300 MHz - 1 GHz) |
| Screening Attenuation |
> 80 dB (3 MHz - 3.0 GHz) |
| Dielectric Strength |
> 1.0 kVAC for 1 minute |
| Insulation Resistance |
> 5000 MΩ@ 100 VDC |
| Weight | 0 lb (0 g) |
| UPC # | 810053351796 |
