Jonard Tools - Round Cable Strip & Ring Tool
Available to Order
SKU:
JND-CST-1900
NSID:
44639
- $56.95
-
$68.69 - $56.95
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

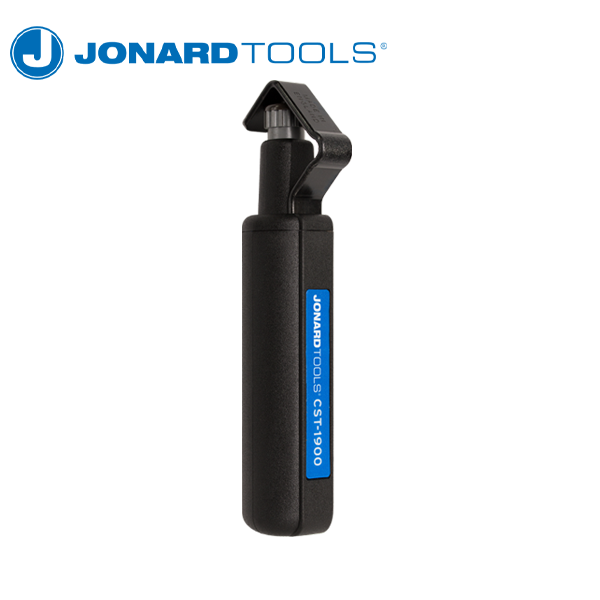

The PATENTED CST-1900 Round Cable Strip & Ring Tool is designed for fast and precise removal of cable jackets from round cables that are 3/16” to 1 1/8” (4.5 mm-29 mm) in diameter. This round cable stripper features the following:
- Patented stripping mechanism provides a "spiral stripping mode" to strip and remove tough insulations
- Can cut through a variety of jacket materials such as PVC, rubber, PE, and many more
- Triple action design as it can make longitudinal cuts for end stripping, spiral cuts for end and mid span stripping, and circular cuts for jacket removal
- Spring-loaded blade can be rotated 90 degrees for versatile slitting and can be adjusted for multiple round cable sizes from 3/16" to 1 1/8" (4.5 mm-29 mm) in diameter
- Blade depth 0 mm-3 mm
- Replacement blade is available (part #: CST-7915)
Specifications
| Cut Type |
Slit, Ring |
|---|---|
| Cable Type |
Jacket, Round Distribution |
| Cable Diameter |
3/16"-1 1/8" (4.5 mm-29 mm) |
| Blade Depth |
0 mm-3 mm |
| Overall Length |
5 1/4" (133 mm) |
| Dimensions | 5.4 in x 1.49 in x 1.2 in (13.7 cm x 3.78 cm x 3.04 cm) |
| Weight | 0.21 lb (95.34 g) |
| UPC # | 811490011977 |
