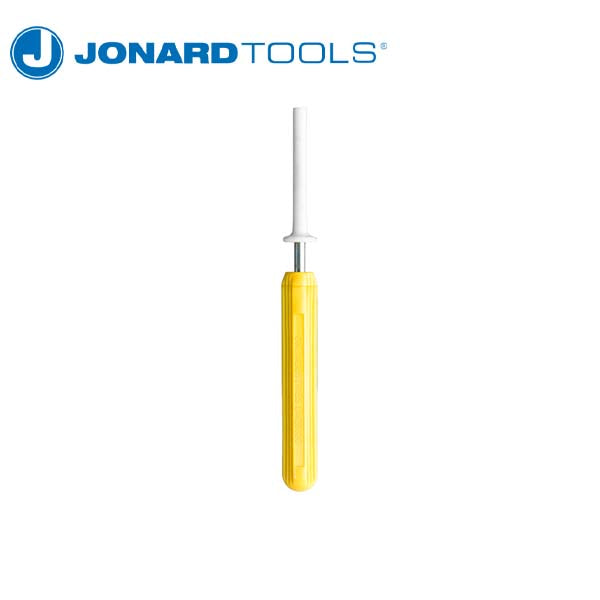

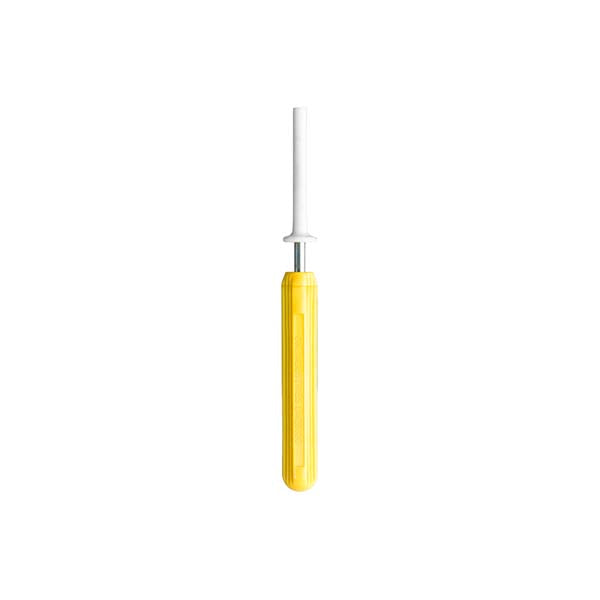

Jonard Tools - Spring-Loaded Unwrap Tool - 28-32 AWG
- Product SKU: JND-UW2832C
- NSID: 45362
-
JND-UW2832C
Designed to unwrap wire on binding posts in the left-hand or right-hand direction, this spring-loaded hand wrap tool is perfect for unwrapping 28-32 AWG (0.32 mm-020 mm) wire quickly and easily. This unwrap tool features the following:
- Spring-loaded retractable sleeve
- Simple two step operation: Push the tool onto a wrapped wire then pull back shield to remove the wire
- Unwraps wire in the left-hand or right-hand direction
- Molded sleeve and stainless steel shaft for long-life and durability
Specifications
| Unwrap Wire Gauge |
28-32 AWG (0.32 mm-0.20 mm) |
|---|---|
| Unwrap Direction |
Left-hand, right-hand |
| Terminal Hole Diameter |
0.038" (0.965 mm) |
| Outside Diameter |
0.156" (3.96 mm) |
| Terminal Hole Depth |
0.75" (19.05 mm) |
| Wrap Post Size |
0.025" (0.63 mm) |
| Handle Color |
Yellow |
| Dimensions | 5.46 in x 0.5 in x 0.53 in (13.86 cm x 1.27 cm x 1.33 cm) |
| Weight | 0.03 lb (13.62 g) |
| UPC # | 811490011724 |
