Jonard Tools - Thin-walled Microduct Scoring Tool - 5–16 mm
Available to Order
SKU:
JND-FS-1080
NSID:
44746
- $33.95
-
$37.44 - $33.95
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

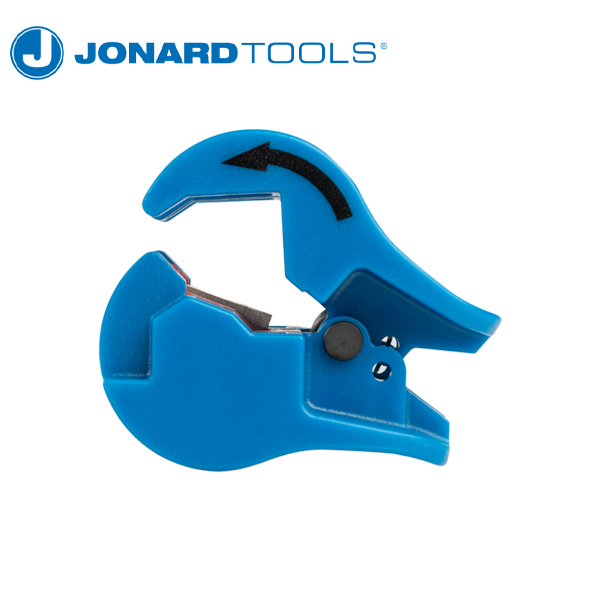

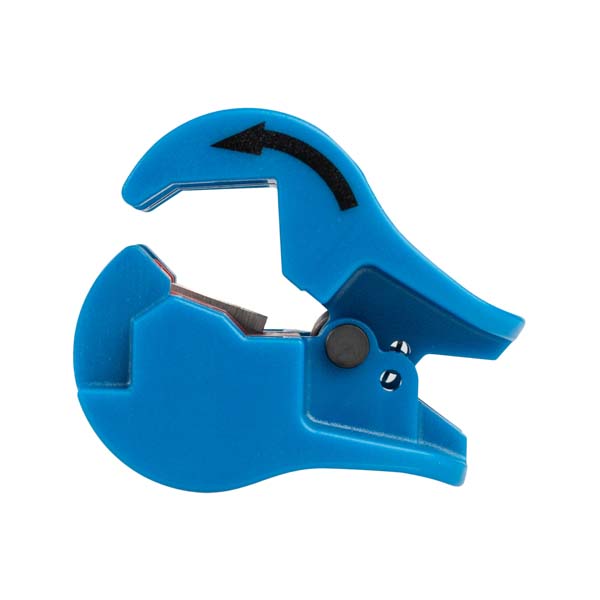

The Jonard Tools Microduct Scoring Tool is perfect for scoring and ringing 10/8 and 12/10 fiber optic microducts without damaging the fibers inside. This scoring tool features the following:
- Unique design allows you to score and ring 10/8, 12/10, and 14/12 fiber optic microducts without any adjustments to the tool
- Perfect for microducts 5 mm-16 mm (0.20"-0.63") in diameter with a wall thickness of 1.0 mm-1.3 mm
- Wide jaws curl around the microducts, holding them in place while scoring
- Spring-loaded butterfly clip makes it easy to open and position it perfectly on microducts
- Includes the FS-1080RB blade for 10/8 and 12/10 but also compatible with FS-1416RB blades for 14/10 and 16/10 fiber optic microducts
- Replacement Blades available: FS-1080RB & FS-1416RB
Specifications
| Microduct Wall Thickness | 1.0 mm-1.3 mm (0.039"-0.051") |
|---|---|
| Microduct Diameter Range | 5.0-16.0 mm (0.20"-0.63") |
| Blade Depth | 1 mm (0.039") |
| UPC # | 811490017917 |
