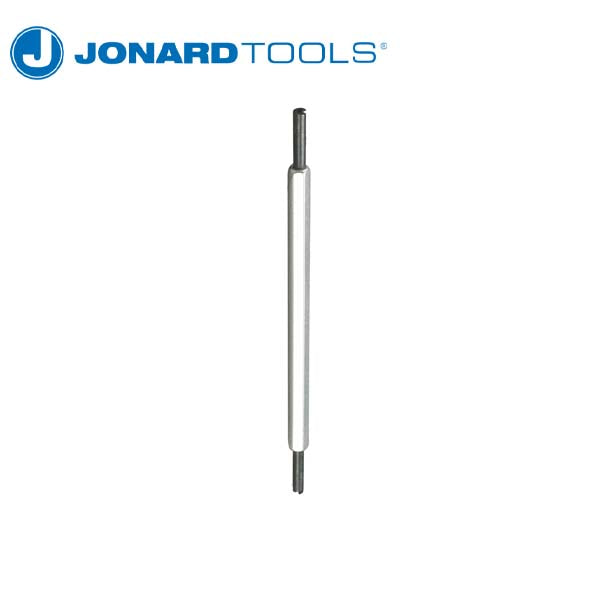

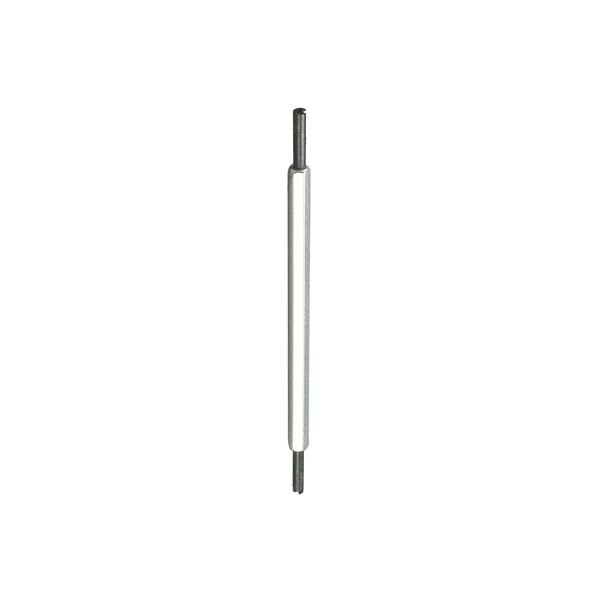

Jonard Tools - Unwrap Tool - 20-26 AWG
- Product SKU: JND-UW2
- NSID: 45361
-
JND-UW2
Designed to unwrap wire on binding posts in the left-hand or right-hand direction, this hand wrap tool is perfect for unwrapping 20-26 AWG (0.81 mm-0.40 mm) wire. This unwrap tool features the following:
- Unwraps wire in the left-hand or right-hand direction
- Aluminum housing and hardened steel probe for maximum durability
Specifications
Unwrap Wire Gauge |
20-26 AWG (0.81 mm-0.40 mm) |
---|---|
Unwrap Direction |
Left-hand, right-hand |
Terminal Hole Diameter |
0.070" (1.77 mm) |
Terminal Hole Depth |
1" (25.4 mm) |
Outside Diameter |
0.156" (3.96 mm) |
Wrap Post Size |
0.045" (1.14 mm) |
Dimensions | 5.55 in x 0.28 in x 0.25 in (14.1 cm x 0.7 cm x 0.65 cm) |
Weight | 0.03 lb (12.712 g) |
UPC # | 811490013247 |
