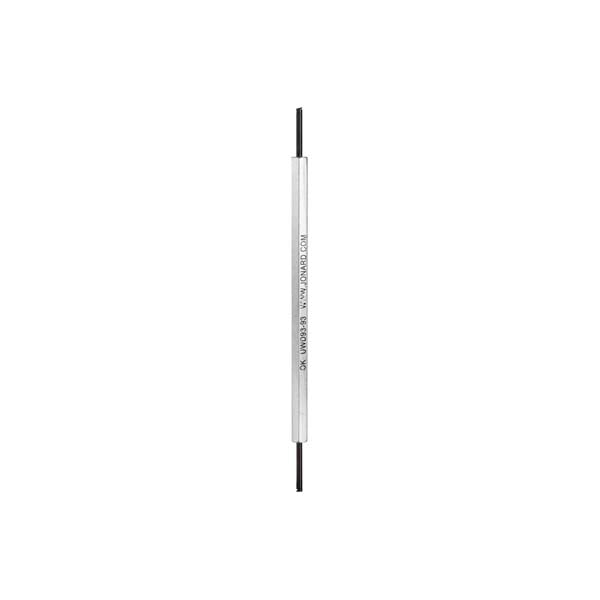

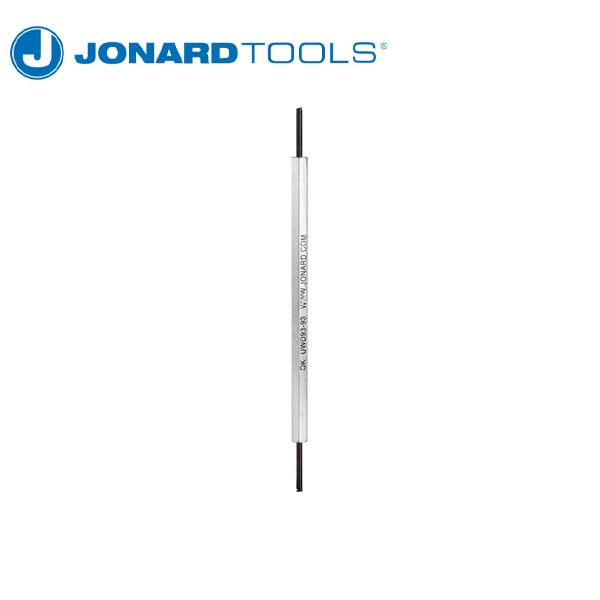

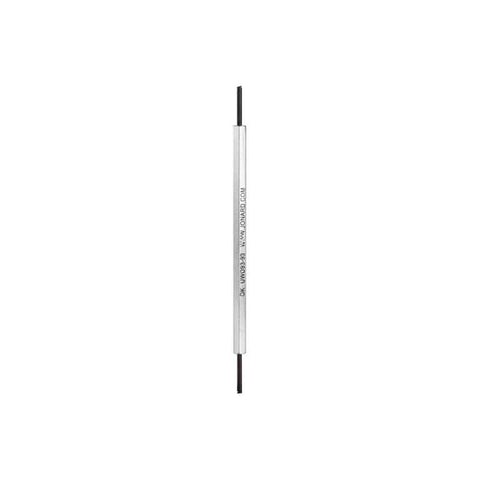

*Discontinued* Jonard Tools - Unwrap Tool - 24-32 AWG

*Discontinued* Jonard Tools - Unwrap Tool - 24-32 AWG

Discontinued
SKU JND-UWD93-93 NSID 45365
$46.95

Designed to unwrap wire on binding posts in the left-hand or right-hand direction, this hand wrap tool is perfect for unwrapping 24-32 AWG (0.51 mm-0.20 mm) wire. This unwrap tool features the following:

  • Unwraps wire in the left-hand or right-hand direction
  • Aluminum housing and hardened steel probe for maximum durability
View full details

Details

    Specifications


      Unwrap Wire Gauge

      24-32 AWG (0.51 mm-0.20 mm)
      Unwrap Direction

      Left-hand, right-hand
      Terminal Hole Diameter

      0.038" (0.965 mm)
      Terminal Hole Depth

      1" (25.4 mm)
      Outside Diameter

      0.093" (2.36 mm)
      Wrap Post Size

      0.025" (0.63 mm)
      Dimensions 5.7 in x 0.29 in x 0.25 in (14.48 cm x 0.73 cm x 0.65 cm)
      Weight 0.03 lb (11.804 g)
      UPC # 811490013643
