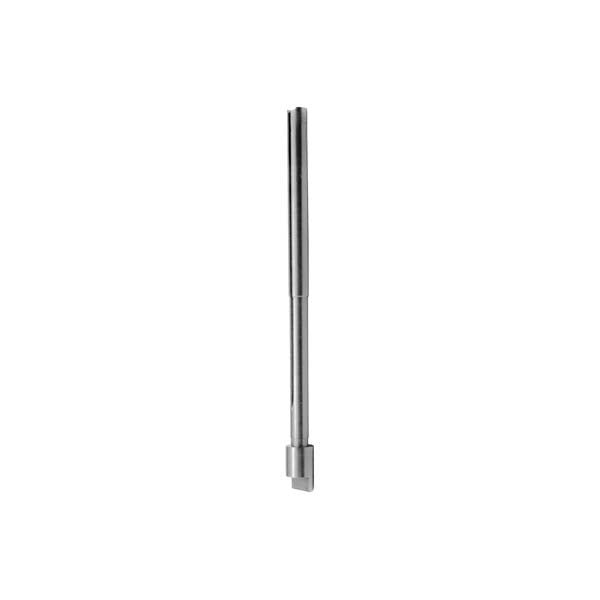

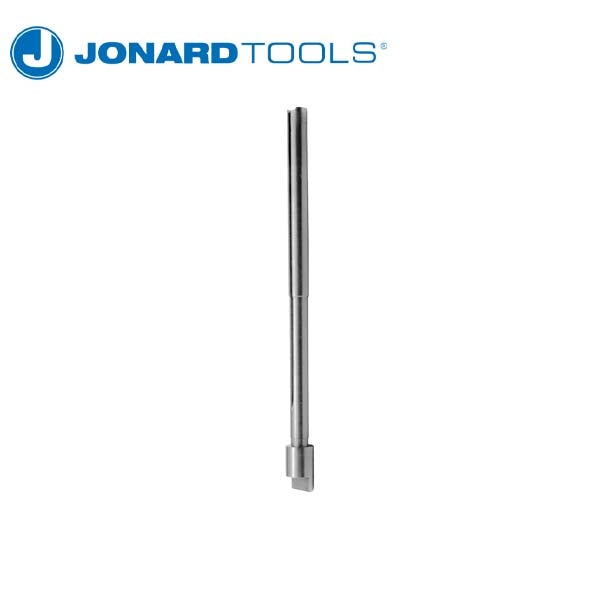

Jonard Tools - Wire Wrapping Bit - 20-22 AWG
Available to Order
SKU:
JND-KB2075
NSID:
44906
- $66.95
-
$79.94 - $66.95
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Fully compatible with any make or model of wire wrapping tools, this 3" wire wrapping bit is perfect for wrapping 20-22 AWG wire around binding posts when used in conjunction with a wire wrapping tool.
Compatible Wrap Sleeve Part No.: P2224, P2224INS
Specifications
| Sleeve Part No. |
P2224 and P2224INS (sold separately) |
|---|---|
| Wrap Function |
Wrap |
| Wrap Type |
Regular |
| Wire Gauge |
20-22 AWG (0.80 mm - 0.65 mm) |
| Minimum Terminal Diagonal |
0.042" (1.07 mm) |
| Maximum Terminal Diagonal |
0.073" (1.85 mm) |
| Terminal Hole Depth |
1" (25.4 mm) |
| Terminal Hole Diameter |
0.075" (1.9 mm) |
| Effective Radius |
0.123" (3.12 mm) |
| Wrap Post Size |
0.045" (1.14 mm) |
| Dimensions | 3.13 in x 0.23 in x 0.23 in (7.94 cm x 0.59 cm x 0.59 cm) |
| Weight | 0.02 lb (7.264 g) |
| UPC # | 811490013377 |
