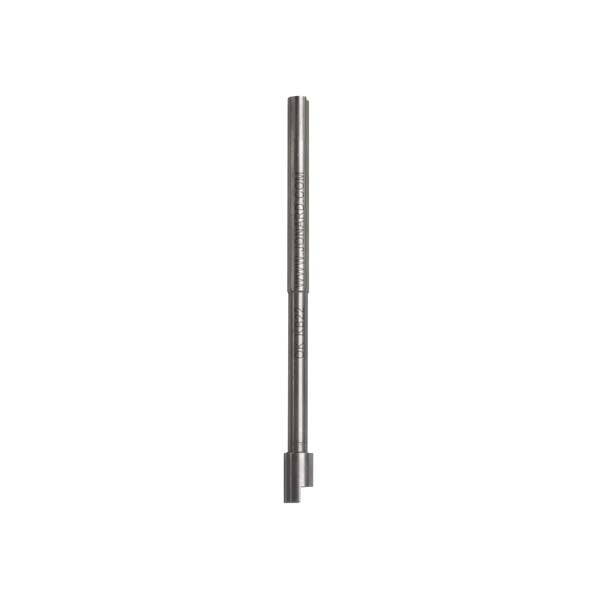

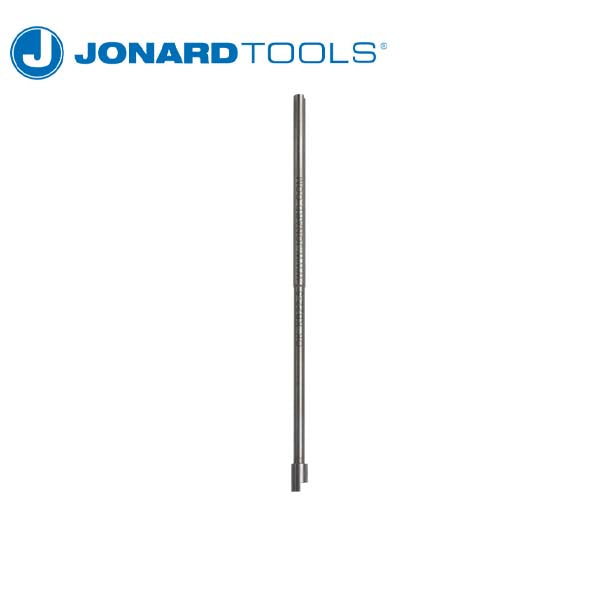

Jonard Tools - Wire Wrapping Bit - 22 AWG
Available to Order
SKU:
JND-KB22
NSID:
44909
- $62.95
-
$74.94 - $62.95
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Fully compatible with any make or model of wire wrapping tools, this 3" wire wrapping bit is perfect for wrapping 22 AWG wire around binding posts when used in conjunction with a wire wrapping tool.
Compatible Wrap Sleeve Part No.: P2224, P2224INS
Specifications
| Sleeve Part No. |
P2224 and P2224INS (sold separately) |
|---|---|
| Wrap Function |
Wrap |
| Wrap Type |
Regular |
| Wire Gauge |
22 AWG (0.65 mm) |
| Maximum Terminal Diagonal |
0.073" (1.85 mm) |
| Minimum Terminal Diagonal |
0.054" (1.37 mm) |
| Terminal Hole Diameter |
0.075" (1.9 mm) |
| Terminal Hole Depth |
0.75" (19.05 mm) |
| Effective Radius |
0.117" (2.97 mm) |
| Wrap Post Size |
0.045" (1.14 mm) |
| Dimensions | 3.13 in x 0.23 in x 0.23 in (7.94 cm x 0.59 cm x 0.59 cm) |
| Weight | 0.02 lb (8.172 g) |
| UPC # | 811490013087 |
