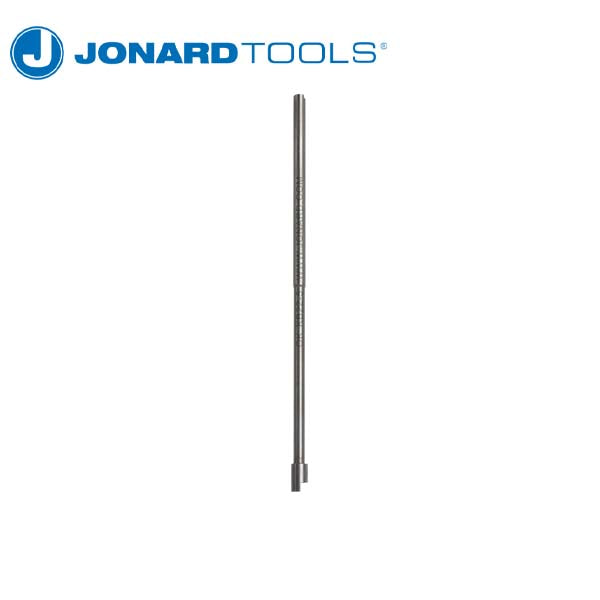

Jonard Tools - Wire Wrapping Bit - 22 AWG - 5"
- Product SKU: JND-KB22-5
- NSID: 44912
-
JND-KB22-5
Fully compatible with any make or model of wire wrapping tools, this 5" wire wrapping bit is perfect for wrapping 22 AWG wire around binding posts in hard-to-reach locations when used in conjunction with a wire wrapping tool.
Compatible Wrap Sleeve Part No.: P2224-5 and P2224-5INS
Specifications
Sleeve Part No. |
P2224-5 and P2224-5INS (sold separately) |
---|---|
Wrap Function |
Wrap |
Wrap Type |
Regular |
Wire Gauge |
22 AWG (0.65 mm) |
Minimum Terminal Diagonal |
0.054" (1.37 mm) |
Maximum Terminal Diagonal |
0.073" (1.85 mm) |
Terminal Hole Depth |
0.75" (19.05 mm) |
Terminal Hole Diameter |
0.075" (1.9 mm) |
Effective Radius |
0.117" (2.97 mm) |
Wrap Post Size |
0.045" (1.14 mm) |
Dimensions | 5.13 in x 0.23 in x 0.23 in (13.02 cm x 0.59 cm x 0.59 cm) |
Weight | 0.03 lb (12.712 g) |
UPC # | 811490013421 |
