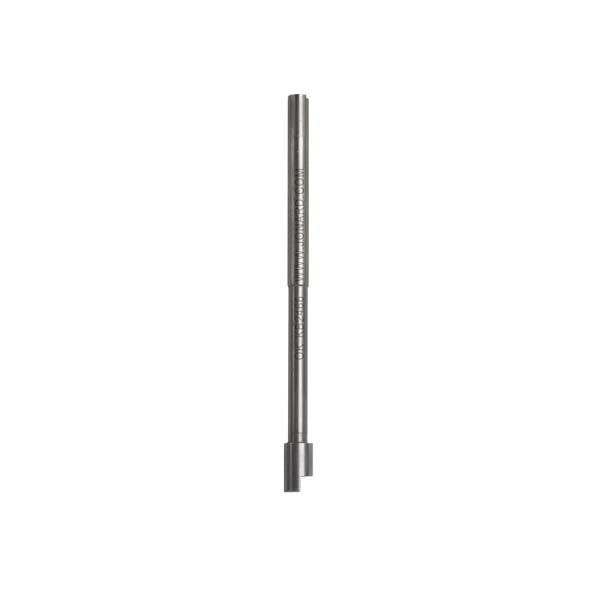

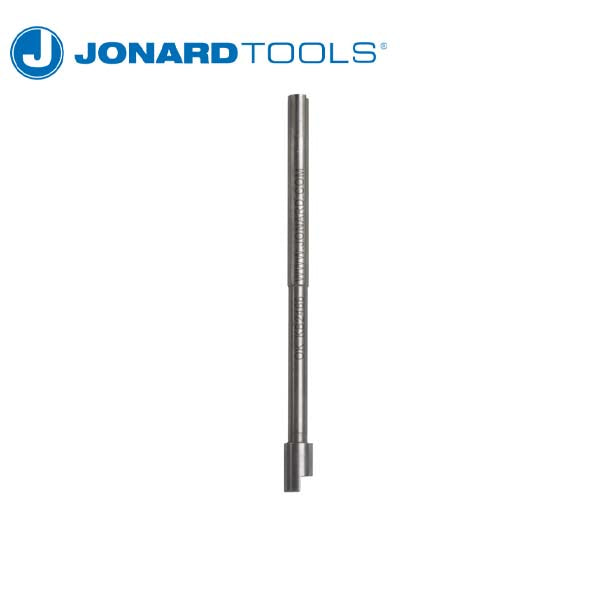

*Discontinued* Jonard Tools - Wire Wrapping Bit - 24-26 AWG

*Discontinued* Jonard Tools - Wire Wrapping Bit - 24-26 AWG

Discontinued
SKU JND-KB2466 NSID 44915
$77.95

Fully compatible with any make or model of wire wrapping tools, this 3" wire wrapping bit is perfect for wrapping 22-24 AWG wire around binding posts when used in conjunction with a wire wrapping tool.

Compatible Wrap Sleeve Part No.: OK8519

    View full details

    Details

    Specifications


      Sleeve Part No.

      OK8519 (sold separately)
      Wrap Function

      Wrap
      Wrap Type

      Regular
      Wire Gauge

      24-26 AWG (0.50 mm - 0.40 mm)
      Minimum Terminal Diagonal

      0.054" (1.37 mm)
      Maximum Terminal Diagonal

      0.065" (1.65 mm)
      Terminal Hole Diameter

      0.066" (1.67 mm)
      Terminal Hole Depth

      1" (25.4 mm)
      Effective Radius

      0.098" (2.48 mm)
      Wrap Post Size

      0.045" (1.14 mm)
      Dimensions 3.13 in x 0.23 in x 0.23 in (7.94 cm x 0.59 cm x 0.59 cm)
      Weight 0.01 lb (4.54 g)
      UPC # 811490013568
