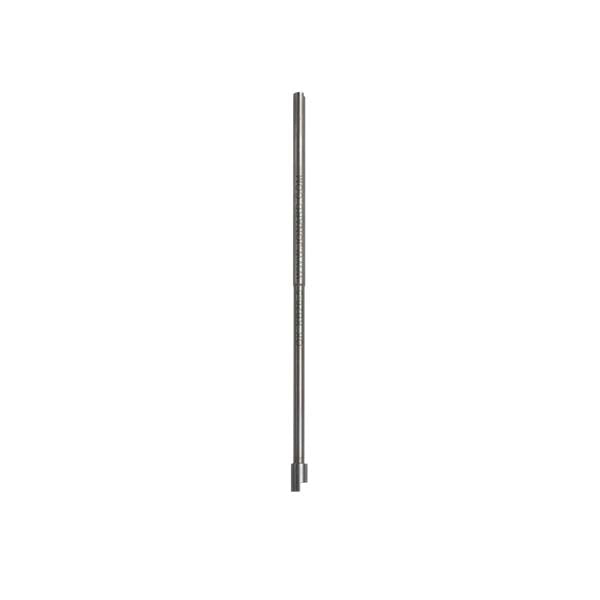

*Discontinued* Jonard Tools - Wire Wrapping Bit - 26 AWG - 5"

*Discontinued* Jonard Tools - Wire Wrapping Bit - 26 AWG - 5"

Discontinued
SKU JND-KB26-5 NSID 44914
$104.95

Fully compatible with any make or model of wire wrapping tools, this 5" wire wrapping bit is perfect for wrapping 26 AWG wire around binding posts in hard-to-reach locations when used in conjunction with a wire wrapping tool.

Compatible Wrap Sleeve Part No.: P2426-5 and P2426-5INS

    View full details

    Details

    Specifications


      Sleeve Part No.

      P2426-5 and P2426-5INS (sold separately)
      Wrap Function

      Wrap
      Wrap Type

      Regular
      Wire Gauge

      26 AWG (0.40 mm)
      Minimum Terminal Diagonal

      0.058" (1.47 mm)
      Maximum Terminal Diagonal

      0.073" (1.85 mm)
      Terminal Hole Depth

      0.75" (19.05 mm)
      Terminal Hole Diameter

      0.075" (1.9 mm)
      Effective Radius

      0.100" (2.54 mm)
      Wrap Post Size

      0.045" (1.14 mm)
      Dimensions 5.13 in x 0.23 in x 0.23 in (13.02 cm x 0.59 cm x 0.59 cm)
      Weight 0.03 lb (11.804 g)
      UPC # 811490014237
