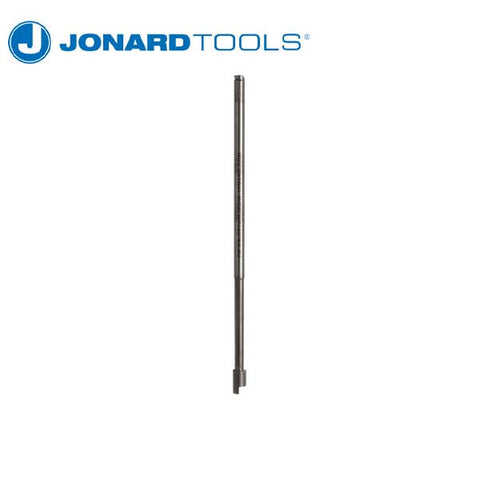

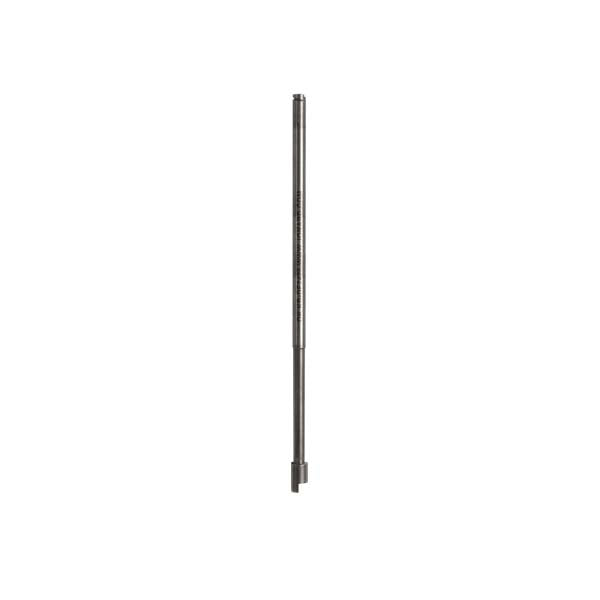

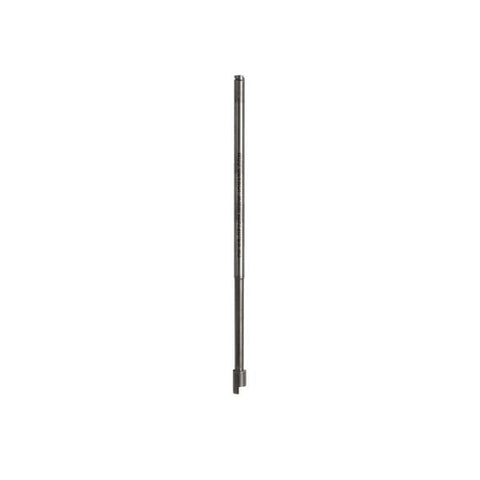

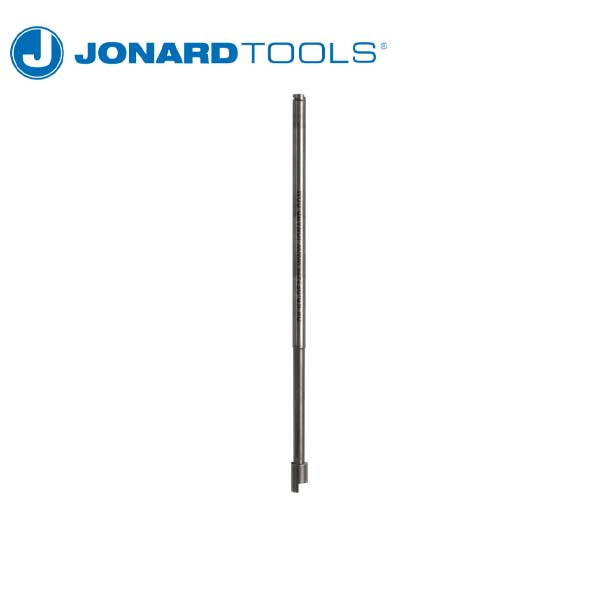

Jonard Tools - Wrap/Unwrap Bit - 24-26 AWG
Available to Order
SKU:
JND-KB-DF2426
NSID:
44917
- $82.95
-
$99.54 - $82.95
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Designed to work with our P-DF2426 Replacement Sleeve Assembly and PTX series tools, this wrap/unwrap bit is perfect for wrapping or unwrapping 24-26 AWG wire. This bit features the following:
- Precision machined for high-quality wire wrapping in the clockwise direction and unwrapping in the counterclockwise direction
- Maximizes the efficiency of wire wrapping and unwrapping 24-26 AWG wires, while eliminating the need to purchase or carry other extra tools for unwrapping
Specifications
| Wrap Function |
Wrap, Unwrap |
|---|---|
| Wire Gauge |
24-26 AWG (0.50-0.40 mm) |
| Minimum Terminal Diagonal |
0.054" (1.37 mm) |
| Maximum Terminal Diagonal |
0.073" (1.85 mm) |
| Terminal Hole Depth |
0.50" (12.70 mm) |
| Terminal Hole Diameter |
0.075" (1.90 mm) |
| Effective Radius |
0.098" (2.48 mm) |
| Wrap Post Size |
0.045" (1.14 mm) |
| Dimensions | 5.13 in x 0.23 in x 0.23 in (13.02 cm x 0.59 cm x 0.59 cm) |
| Weight | 0.03 lb (12.258 g) |
| UPC # | 811490013384 |
