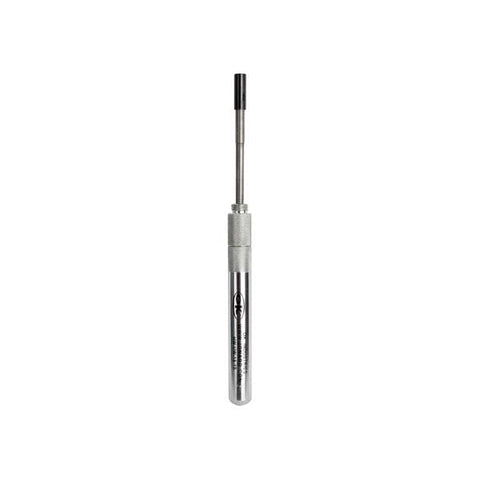

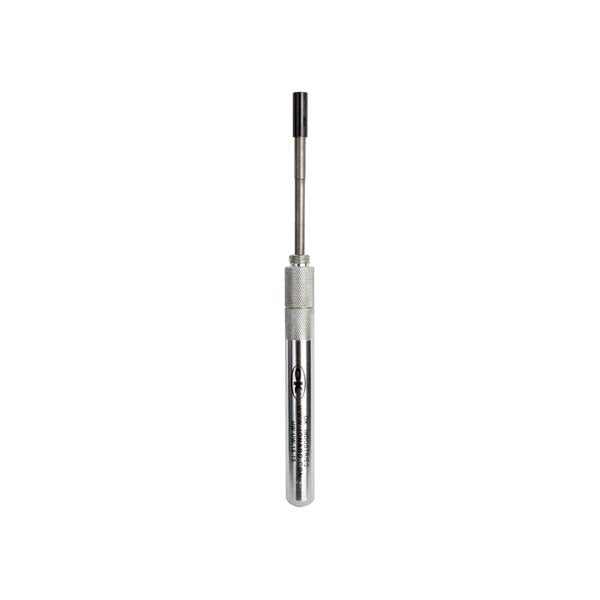

Jonard Tools - Wrap-Unwrap Tool - 18-19 AWG
Available to Order
SKU:
JND-HW-UW-18-19
NSID:
44827
- $108.95
-
$129.94 - $108.95
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Designed to wrap or unwrap wire on binding posts, this hand wrap tool is perfect for use on 18-19 AWG (1.0 mm - 0.91 mm diameter) wire. This hand wrap tool also features the following:
- Compact and convenient for making precise wire wraps where power wire wrapping tools are impractical
- Switch from Wrapping to Unwrapping quickly by changing the cap from one end to the other
Specifications
| Wrap Type |
Regular |
|---|---|
| Wrap Wire Gauge |
18-19 AWG (1.00-0.91 mm) |
| Wrap Terminal Hole Diameter |
0.075" (1.90 mm) |
| Wrap Terminal Hole Depth |
1" (25.40 mm) |
| Wrap Outside Diameter |
0.250" (6.35 mm) |
| Wrap Post Size |
0.045" (1.14 mm) |
| Unwrap Wire Gauge |
18-19 AWG (1.0-0.91 mm) |
| Unwrap Terminal Hole Diameter |
0.075" (1.90 mm) |
| Unwrap Terminal Hole Depth |
1" (25.40 mm) |
| Unwrap Outside Diameter |
0.187" (4.74 mm) |
| Handle Type |
Aluminum |
| Dimensions | 7 in x 0.5 in x 0.5 in (17.78 cm x 1.27 cm x 1.27 cm) |
| Weight | 0.09 lb (40.406 g) |
| UPC # | 811490014176 |
