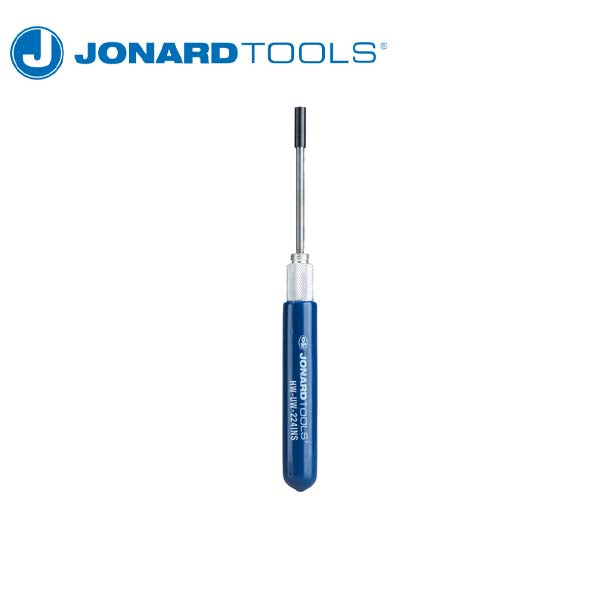

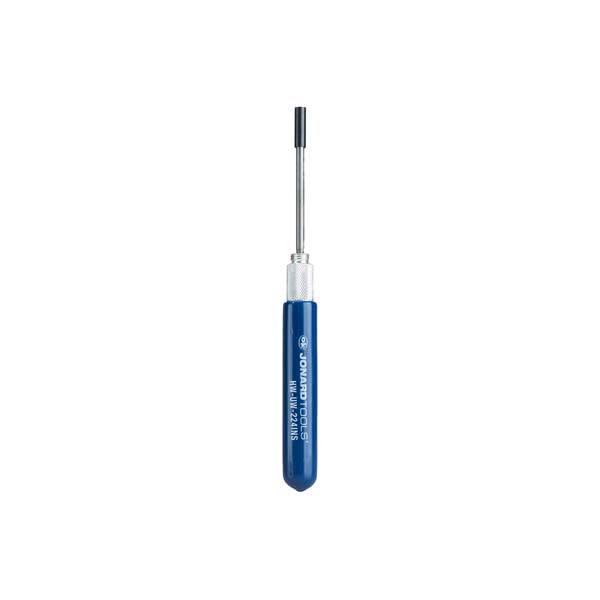

Jonard Tools - Wrap-Unwrap Tool - 22-24 AWG Insulated
- Product SKU: JND-HW-UW-224INS
- NSID: 44831
-
JND-HW-UW-224INS
Designed to wrap or unwrap wire on binding posts, this hand wrap tool is perfect for use on 22-24 AWG (0.65 mm - 0.50 mm diameter) wire. This hand wrap tool also features the following:
- Insulated handle for dielectric protection
- Compact and convenient for making precise wire wraps where power wire wrapping tools are impractical
- Switch from Wrapping to Unwrapping quickly by changing the cap from one end to the other
Specifications
| Wrap Type |
Regular |
|---|---|
| Wrap Wire Gauge |
22-24 AWG (0.65-0.50 mm) |
| Wrap Terminal Hole Diameter |
0.075" (1.90 mm) |
| Wrap Terminal Hole Depth |
1" (25.40 mm) |
| Wrap Outside Diameter |
0.218" (5.54 mm) |
| Wrap Post Size |
0.045" (1.14 mm) |
| Unwrap Wire Gauge |
20-26 AWG (0.80-0.40 mm) |
| Unwrap Terminal Hole Diameter |
0.070" (1.77 mm) |
| Unwrap Terminal Hole Depth |
1" (25.40 mm) |
| Unwrap Outside Diameter |
0.156" (3.96 mm) |
| Handle Type |
Insulated |
| Dimensions | 7.13 in x 0.63 in x 0.63 in (18.1 cm x 1.59 cm x 1.59 cm) |
| Weight | 0.1 lb (44.946 g) |
| UPC # | 811490015364 |
Downloads:
