*Discontinued* Jonard Tools - Wrap-Unwrap Tool - 24-26 AWG

*Discontinued* Jonard Tools - Wrap-Unwrap Tool - 24-26 AWG

Discontinued
SKU JND-HW-UW-2426 NSID 44832
$121.95

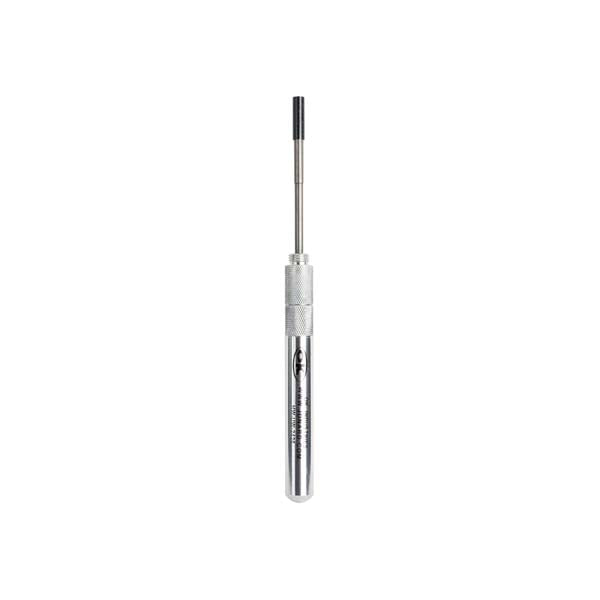

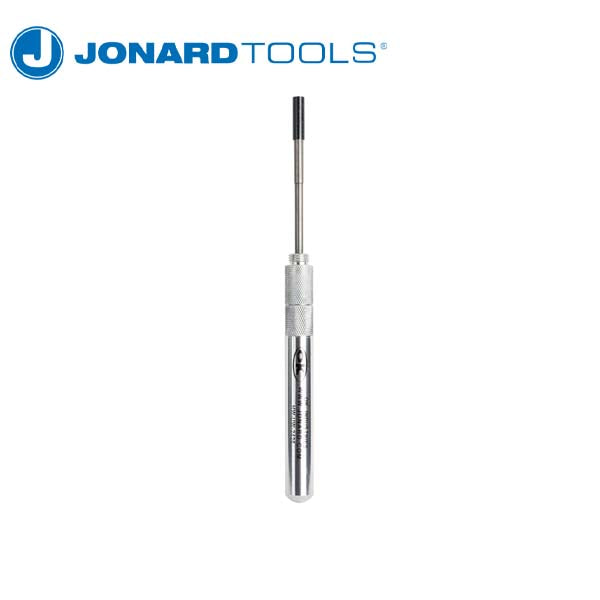

Designed to wrap or unwrap wire on binding posts, this hand wrap tool is perfect for use on 24-26 AWG (0.50 mm - 0.40 mm diameter) wire. This hand wrap tool also features the following:

  • Compact and convenient for making precise wire wraps where power wire wrapping tools are impractical
  • Switch from Wrapping to Unwrapping quickly by changing the cap from one end to the other
View full details

Details

    Specifications


      Wrap Type

      Regular
      Wrap Wire Gauge

      24-26 AWG (0.50-0.40 mm)
      Wrap Terminal Hole Diameter

      0.075" (1.90 mm)
      Wrap Terminal Hole Depth

      0.75" (19.05 mm)
      Wrap Outside Diameter

      0.218" (5.54 mm)
      Wrap Post Size

      0.045" (1.14 mm)
      Unwrap Wire Gauge

      20-26 AWG (0.80-0.40 mm)
      Unwrap Terminal Hole Diameter

      0.070" (1.77 mm)
      Unwrap Terminal Hole Depth

      1" (25.40 mm)
      Unwrap Outside Diameter

      0.156" (3.96 mm)
      Handle Type

      Aluminum
      Dimensions 7 in x 0.5 in x 0.5 in (17.78 cm x 1.27 cm x 1.27 cm)
      Weight 0.8 lb (363.2 g)
      UPC # 811490013575
