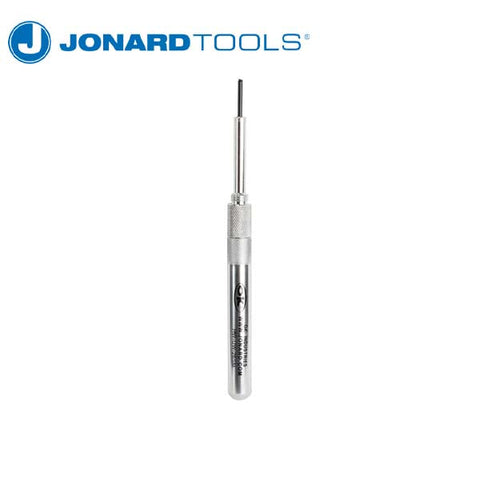

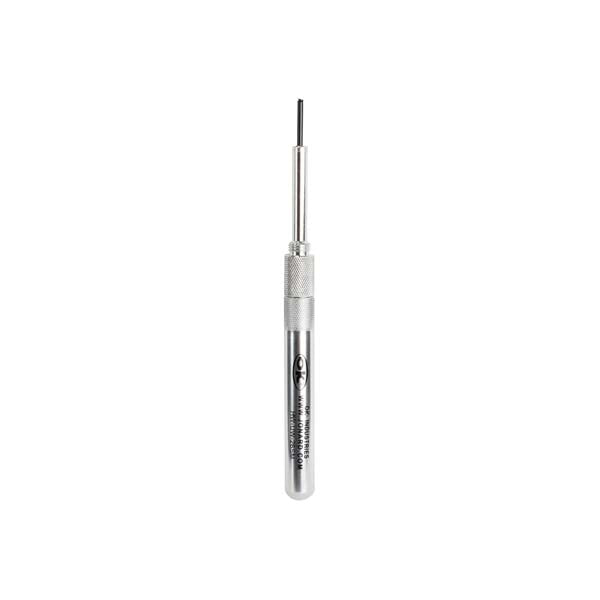

*Discontinued* Jonard Tools - Wrap-Unwrap Tool - 26 AWG

*Discontinued* Jonard Tools - Wrap-Unwrap Tool - 26 AWG

Discontinued
SKU JND-HW-UW-26SM NSID 44833
$138.95

Designed to wrap or unwrap wire on binding posts, this hand wrap tool is perfect for use on 26 AWG (0.40 mm diameter) wire. This hand wrap tool also features the following:

  • For use on 0.025" (0.63 mm) square terminals whose center-to-center of the pins are 0.100" (2.54 mm)
  • Compact and convenient for making precise wire wraps where power wire wrapping tools are impractical
  • Switch from Wrapping to Unwrapping quickly by changing the cap from one end to the other
View full details

Details

    Specifications


      Wrap Type

      Modified
      Wrap Wire Gauge

      26 AWG (0.40 mm)
      Maximum Insulation Diameter

      0.031" (0.79 mm)
      Wrap Terminal Hole Diameter

      0.040" (1.02 mm)
      Wrap Terminal Hole Depth

      0.75" (19.05 mm)
      Wrap Outside Diameter

      0.125" (3.17 mm)
      Wrap Post Size

      0.025" (0.63 mm)
      Unwrap Wire Gauge

      24-32 AWG (0.5-0.20 mm)
      Unwrap Terminal Hole Diameter

      0.038" (0.96 mm)
      Unwrap Terminal Hole Depth

      1" (25.40 mm)
      Unwrap Outside Diameter

      0.093" (2.36 mm)
      Handle Type

      Aluminum
      Dimensions 5.63 in x 0.5 in x 0.5 in (14.29 cm x 1.27 cm x 1.27 cm)
      Weight 0.06 lb (29.056 g)
      UPC # 811490013148
