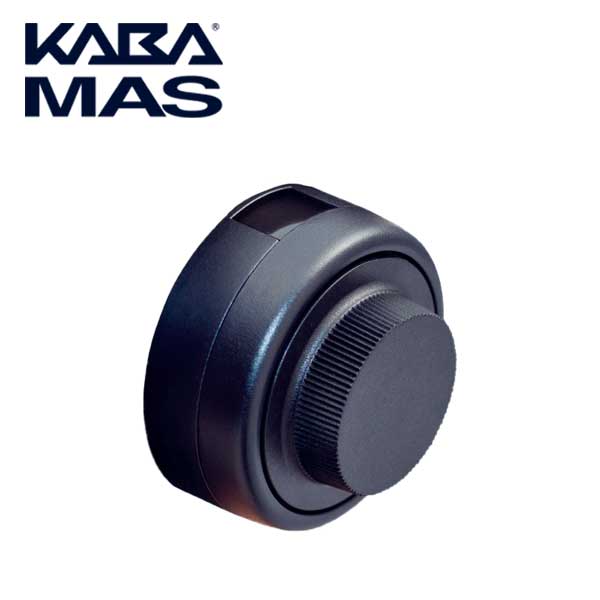

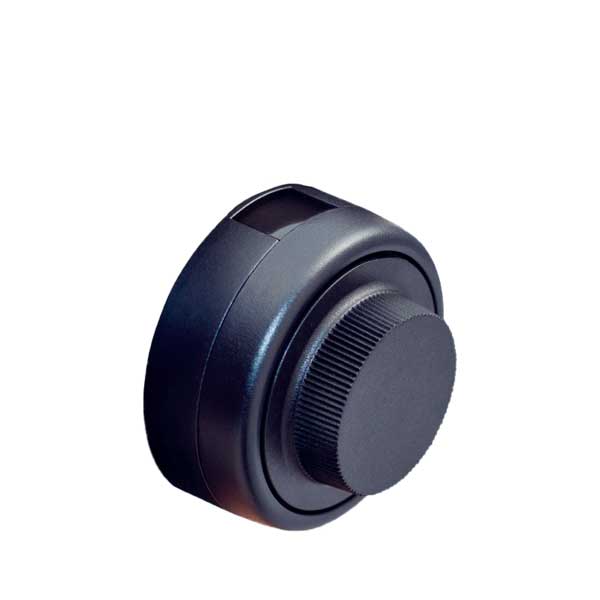

KABA MAS - X10 - High Security Electronic Combination Lock - Backlit Display - Self-Powered - Round Deadbolt - 4.5" Door - FF-L-2740B - Black
KABA MAS - X10 - High Security Electronic Combination Lock - Backlit Display - Self-Powered - Round Deadbolt - 4.5" Door - FF-L-2740B - Black
KABA MAS - X10 - High Security Electronic Combination Lock - Backlit Display - Self-Powered - Round Deadbolt - 4.5" Door - FF-L-2740B - Black
KABA MAS - X10 - High Security Electronic Combination Lock - Backlit Display - Self-Powered - Round Deadbolt - 4.5" Door - FF-L-2740B - Black
KABA MAS - X10 - High Security Electronic Combination Lock - Backlit Display - Self-Powered - Round Deadbolt - 4.5" Door - FF-L-2740B - Black
KABA MAS - X10 - High Security Electronic Combination Lock - Backlit Display - Self-Powered - Round Deadbolt - 4.5" Door - FF-L-2740B - Black
KABA MAS - X10 - High Security Electronic Combination Lock - Backlit Display - Self-Powered - Round Deadbolt - 4.5" Door - FF-L-2740B - Black

KABA MAS - X10 - High Security Electronic Combination Lock - Backlit Display - Self-Powered - Round Deadbolt - 4.5" Door - FF-L-2740B - Black

$1,546.44 $1,854.99
Availability: Available
Wishlist
  • Product SKU: KMAS-X10XRDXXTZMEZ1A
  • NSID: 2869
  • KMAS-X10XRDXXTZMEZ1A

    The Kaba Mas X-0 series is the trusted choice for securing the US Government’s most sensitive material. The X-0 series was first introduced in 1992 as the only lock to meet the strict requirements of Federal Specification FF-L-2740. This specification is the US Government’s highest security standard for electro-mechanical locks. The X-10 represents the latest edition to this secure tradition. The X-10 is the GSA (General Services Administration) approved lock for FF-L-2740, latest revision B, Style 1 applications. The X-10 is approved by the GSA for use on approved Class 5 and 6 filing cabinets and Class 5 Security vault doors.

    Features:

    • Backlit Display
    • Sealed Lock Case
    • Ease of Installation
    • 4.5" Door
    • DC Lock Motor
    • Lock Cable Opposite of Bolt and One Lock Bolt Flushed for enhanced design
    • 3 Modes of Combination: Single; 1 million combinations. Double; 500 billion combinations. Supervisor/Subordinate; 2 million combinations.
    • Powerstar Technology Self-Powered



    $1,546.44
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications:

Power: Internal, self-powered by Rotational electromechanical PowerStar™ technology.
Combinations: Single / Double / Supervisor and Subordinate
Direct Dial: No need to clear before entering combination. Once you stop turning the dial, the power will shut down after 40 seconds.
Memory: Non-Volatile
LCD: Limited View Backlit Liquid Crystal Display with visual controls makes dialing easy and exact.
Combination Changes: (LCD indicator in change key mode.) Combination changed with correct combination or serial number
Random Number View:  True Scramble
Daylocking & Backdialing: No
Lock Reset: Automatic when bolt is thrown or after 40 Secs.
Manipulation: Fail secure against high-voltage attack, robot attack, X-ray methods, magnetic, vibration, and R/F.
Audit: The X-10 records all openings, and the record is non-resettable. The X-10 records unsuccessful attempts after 3 incorrect combination attempts and resets after a correct opening.
Penalty: 10-14 errors results in a 3 minute time out. 15 errors or greater results in a 4 minute time out. Both error count and penalty time resets with valid combination.
Temp: Tested -10°F to 155°F Operational Range
Humidity: Operational after 10 days of 140°F @ 98% humidity (Operational after 10 days testing per MIL-STD-810E, Method 507.3, Procedure III, Temperature Cycling 86°F to 140°F @ 98% RH)
Salt Spray: Operational After 72 hours of continuous exposure (per UL 768 Salt Spray Conversion Test).
Cycle Test: Meets or exceeds FF-L-2740B specifications
Stress: Operational after 7 days in a stress chamber @ 194°F (per UL 768 Aging Stress Distortion Test).
Vibration: MIL-STD-810
Shock: MIL-STD-901
Electrical Discharge: 250KV on Dial
Electromagnetic Pulse: Meets FF-L-2740B specification for simulation of high altitude nuclear blast.
Case & Bolt Strength: 600 pounds in two directions.



This product has a limited use clause that states that this lock can only be sold to the Federal Government, Government contractors specifically authorized to purchase these locks, or other organizations specially authorized or required by the Government to use these locks. Limited Use Clause


Downloads:

KMAS-X10XRDXXTZMEZ1A

The Kaba Mas X-0 series is the trusted choice for securing the US Government’s most sensitive material. The X-0 series was first introduced in 1992 as the only lock to meet the strict requirements of Federal Specification FF-L-2740. This specification is the US Government’s highest security standard for electro-mechanical locks. The X-10 represents the latest edition to this secure tradition. The X-10 is the GSA (General Services Administration) approved lock for FF-L-2740, latest revision B, Style 1 applications. The X-10 is approved by the GSA for use on approved Class 5 and 6 filing cabinets and Class 5 Security vault doors.

Features:

  • Backlit Display
  • Sealed Lock Case
  • Ease of Installation
  • 4.5" Door
  • DC Lock Motor
  • Lock Cable Opposite of Bolt and One Lock Bolt Flushed for enhanced design
  • 3 Modes of Combination: Single; 1 million combinations. Double; 500 billion combinations. Supervisor/Subordinate; 2 million combinations.
  • Powerstar Technology Self-Powered


Specifications:

Power: Internal, self-powered by Rotational electromechanical PowerStar™ technology.
Combinations: Single / Double / Supervisor and Subordinate
Direct Dial: No need to clear before entering combination. Once you stop turning the dial, the power will shut down after 40 seconds.
Memory: Non-Volatile
LCD: Limited View Backlit Liquid Crystal Display with visual controls makes dialing easy and exact.
Combination Changes: (LCD indicator in change key mode.) Combination changed with correct combination or serial number
Random Number View:  True Scramble
Daylocking & Backdialing: No
Lock Reset: Automatic when bolt is thrown or after 40 Secs.
Manipulation: Fail secure against high-voltage attack, robot attack, X-ray methods, magnetic, vibration, and R/F.
Audit: The X-10 records all openings, and the record is non-resettable. The X-10 records unsuccessful attempts after 3 incorrect combination attempts and resets after a correct opening.
Penalty: 10-14 errors results in a 3 minute time out. 15 errors or greater results in a 4 minute time out. Both error count and penalty time resets with valid combination.
Temp: Tested -10°F to 155°F Operational Range
Humidity: Operational after 10 days of 140°F @ 98% humidity (Operational after 10 days testing per MIL-STD-810E, Method 507.3, Procedure III, Temperature Cycling 86°F to 140°F @ 98% RH)
Salt Spray: Operational After 72 hours of continuous exposure (per UL 768 Salt Spray Conversion Test).
Cycle Test: Meets or exceeds FF-L-2740B specifications
Stress: Operational after 7 days in a stress chamber @ 194°F (per UL 768 Aging Stress Distortion Test).
Vibration: MIL-STD-810
Shock: MIL-STD-901
Electrical Discharge: 250KV on Dial
Electromagnetic Pulse: Meets FF-L-2740B specification for simulation of high altitude nuclear blast.
Case & Bolt Strength: 600 pounds in two directions.



This product has a limited use clause that states that this lock can only be sold to the Federal Government, Government contractors specifically authorized to purchase these locks, or other organizations specially authorized or required by the Government to use these locks. Limited Use Clause


Downloads:
