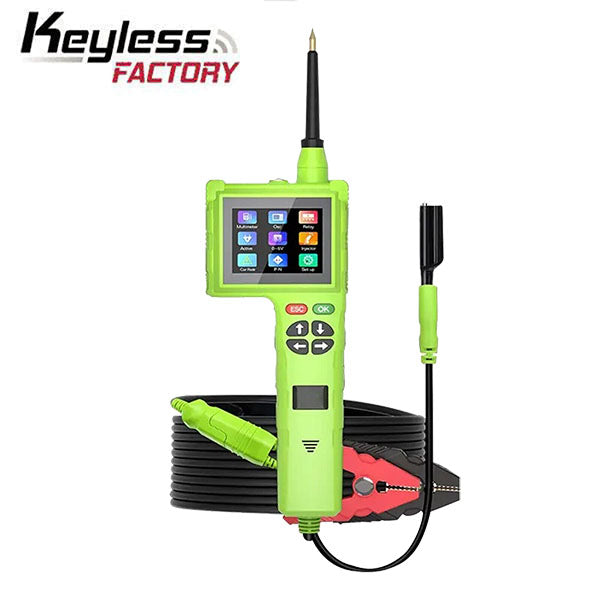

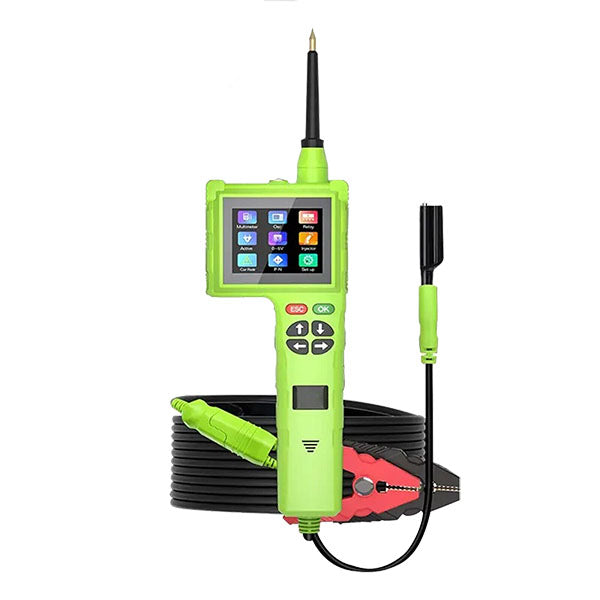

The Smart Hook Master Edition represents the pinnacle of circuit testing technology, boasting advanced capabilities to provide comprehensive electrical system diagnosis across a broad range of applications, from motorized vehicles to boats and construction machinery. Harnessing an impressive array of 200 PRO features, this cutting-edge device offers unparalleled functionality, including leakage current testing, fuel injector testing and cleaning, relay testing, component activation, mulitmeter mode, oscilloscope mode, 0-5V power supply, and P-N capabilities.
Features:
- Leakage Current Test
- Fuel Injector Test
- Fuel Injector Cleaning
- Relay Test
- Component Activation
- Multimeter Mode
- Oscilloscope Mode
- 0~5V Power Supply
- P-N
Fuel Injector: To conduct fuel injector cleaning, simply follow these steps: first, power down the engine; next, connect the BLACK clip to the negative battery terminal and the RED clip to the positive terminal; then, unplug the fuel injector connector and attach the probe auxiliary ground lead to the negative side of the injector and the positive side of the injector. Once you have entered the injector test function and selected the appropriate test mode, press the "OK" button to initiate the test and analyze the injector spraying status in order
Multi-lingual Support: The device accommodates a diverse range of languages including English, Espanol, Deutsch, Francais, Italiano, Portugal, Polish, Russian, Vietnamese, Thailand, Indonesian, Filipino, Malay, Arabic, Korean, and Japanese.
Leakage Detection Capability: The instrument can efficiently record the leakage current for up to one hour with an option of seamless playback. Nozzle Detection Feature: The device supports analog output nozzle signal, along with the capability to acquire and analyze its parameters, and draw its signal waveform for fuel injector cleaning.
Relay Testing: A convenient relay test box is available for easy wiring, which can be connected to the host via Type-c for reliable performance. Specifications: The operating voltage range for the device is 9-48V, with the frequency test range between 10 Hz-500 KHz. The test voltage range is 2mV~99.9V, and the component

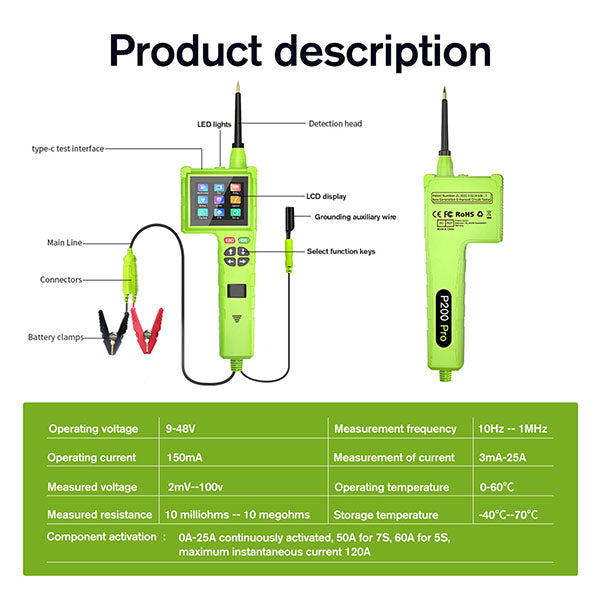

Specifications:
| Operating Voltage | 9-48V |
| Operating Current | 150mA |
| Measured Voltage | 2mV--100v |
| Measured Resistance |
10 milliohms -- 10 megohms |
| Measurement Frequency | 10Hz -- 1MHz |
| Measurement of Current | 3mA-25A |
| Operating Temperature | 0-60°C |
| Storage Temperature | -40°C--70°C |
| Component Activation | 0A-25A continuously activated, 50A for 7S, 60A for 5S, maximum instantaneous current 120A |
