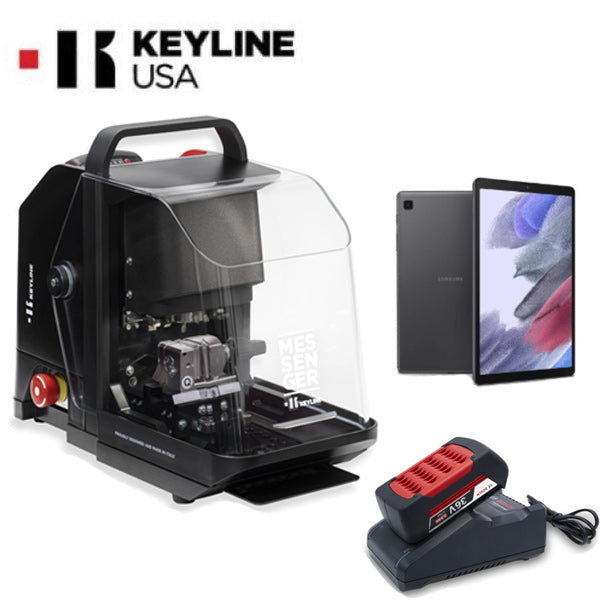

Keyline - Messenger - Key Cutting Machine - With Battery and A7 Lite Samsung Galaxy Tablet - For Edge Cut - Laser - Dimple Keys
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $4,400.00
-
$5,159.99 - $4,400.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

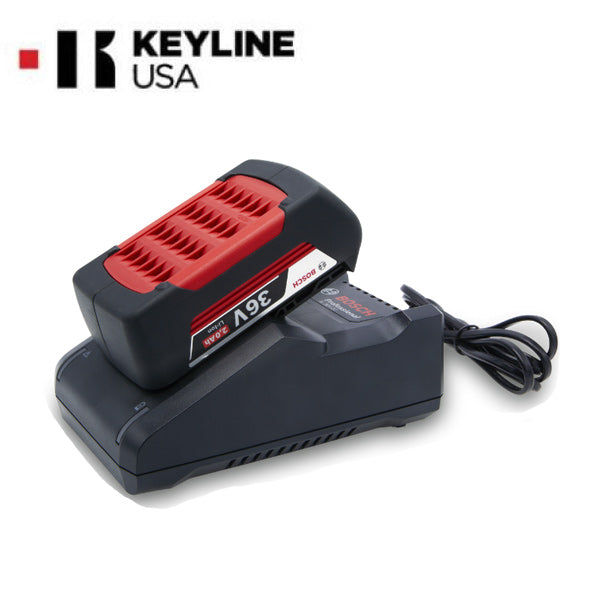

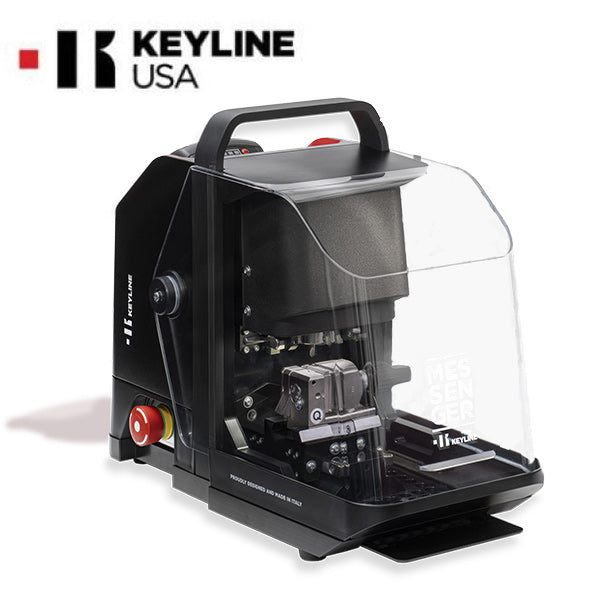

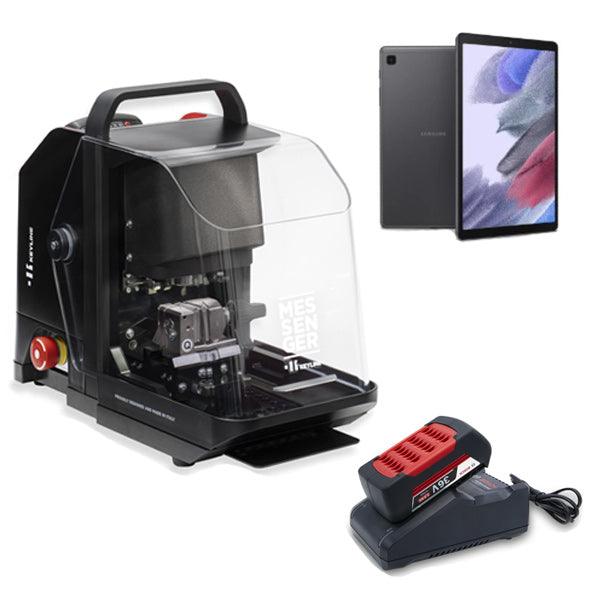

Messenger Key Machine with Bosch Rechargeable Battery, Charger and Samsung Galaxy Tablet A7 Lite
This machine is exclusively controlled by the KDT App and can cut by code, decode and copy keys. Thanks to its characteristics, and because it can also be powered by battery, it can be used in a wide variety of work situations. With Messenger you can provide commercial, residential or car key cutting service anywhere, at any time and with the utmost flexibility!
This machine has been designed for everyone who needs to duplicate keys on-the-go. Both the hardware components and the software that runs the machine were developed by the R&D Team of Keyline.
This APP does NOT have an iPHONE or PC version available...works with Android phones ONLY currently
Includes 2 Clamps:
- The Q clamp: for laser and dimple keys; an innovation in the cutting of keys, with one unique clamp you can cut the main range of laser keys
- The N clamp: for edge cut automotive keys (with symmetrical cuts on both sides without the need to turn the key)
Q Clamp:
N Clamp:
TECHNICAL SPECIFICATION
- Tablet Included - A7 Lite Samsung Tablet Included
-
Power Supply: Machine - 48V DC - 2.5 Amp - Included Battery for Portable Use
- Prepped for Built-in Battery: Standard integrated adapter for Battery use
- Key Reading / Decoding system: Electric contact
- Lighting: LED - lighted cutting bay
- Movements/Axis: 3 axis, guided by stepper motors with T-shaped screw and anti-backlash nut
- Clamps: Q clamp for laser and dimple keys / N clamp for edge cut automotive keys
- Motor: Brushless
- Cutter: V037 Carbide - 2.0mm for laser and edge cut automotive keys / V001 Carbide - 90 degrees for dimple keys
- Cutter Speed: 10,000 rpm (7,500 rpm with the battery power supply); variable speed for specific materials
- Absorption: 120W (6W stand-by)
- Dimensions: Width: 7.8" / Depth: 15.5" / Height: 12.2"
- Weight: Machine body: 22 lbs
-
Operation Control: Operates in conjunction with the Keyline KDT App
- Connections: Bluetooth
- Dedicated App: Keyline KDT App for Android devices from version 7 and up with Data connection

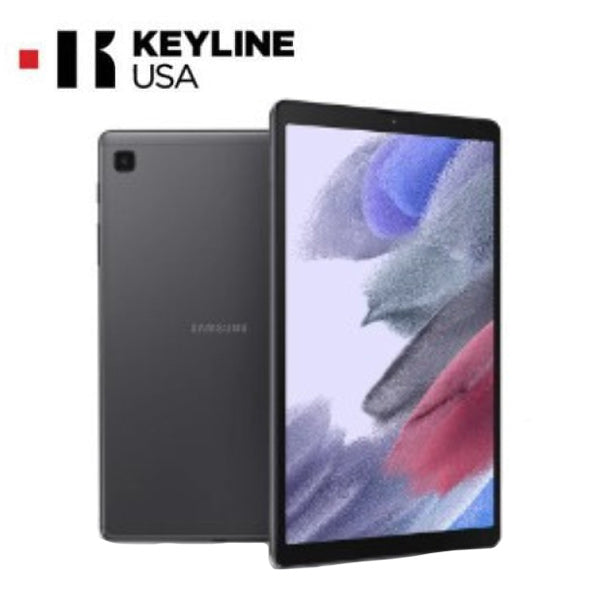

Galaxy Tab A7 Lite
Specifications:
Downloads:
- App Download (Android)
- This APP does NOT have an iPHONE or PC version available
Keyline USA Tech Support: 800-891-2118
