Details
Specifications
| Backset |
Adjustable to 2-3/8” or 2-3/4” standard. |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-3/8" - 2-1/8" |
| Edge Bore | 1" |
| Height | 2.625 in. |
| Projection | 2.15625 in. |
| Cylinder | 6 Pin - Removeable Core |
| Keyway |
KW1 |
| Strikes | 1-1/4” x 3-5/8”. Specify round corner or square corner. Other options available. |
| Bolt | 1” throw. |
| Door Handing | Reversible for right or left-hand doors. |
| ANSI/ BHMA |
A156.5 |

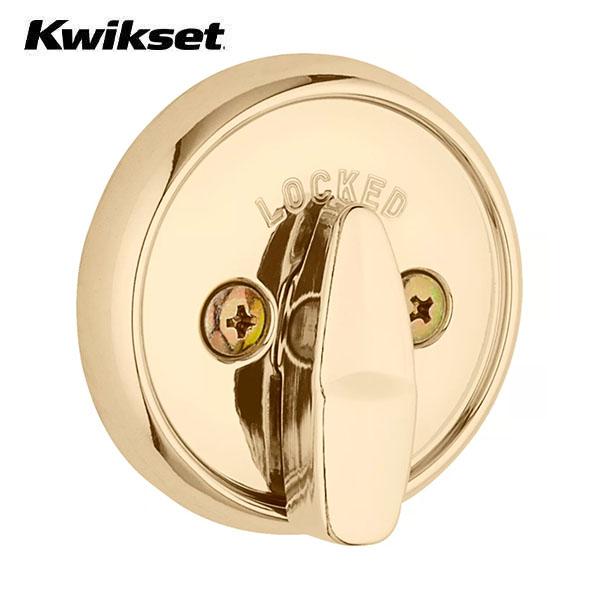

| ADA | Interior turn piece meets 4.13.9 ADA requirements. |
| UL | Meets UL 3 hour fire rating for 782 and 784. Optional UL 1/3 hour fire rating for all functions.* |
