Details
Features
- SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
- For use on exterior doors where keyed entry and security is needed
- SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway

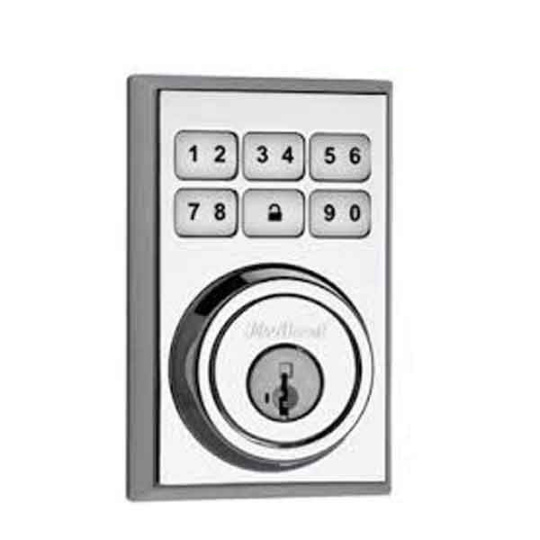

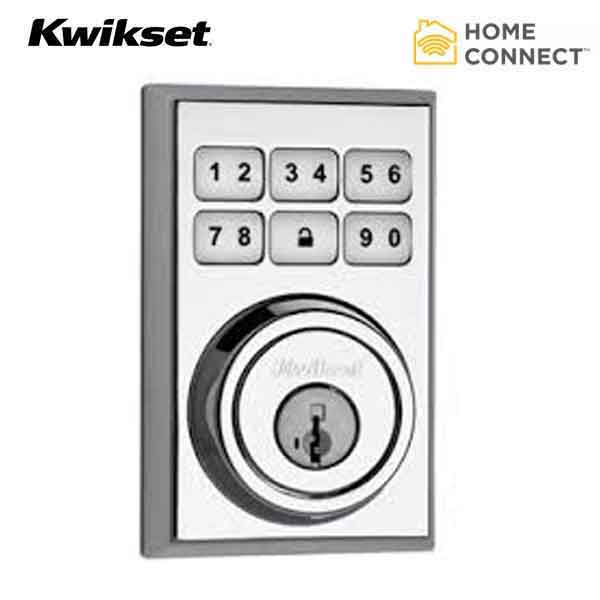

- Deadbolt operated by electronic keypad or key from outside and thumb turn inside
- Comes with 2 keys
- Latch is 20-minute fire rated with round corner face
- ANSI/BHMA grade 2 certified
- Latch has adjustable backset 2-3/8 in. to 2-3/4 in. to fit all standard door preparations
- Includes round deadbolt strike
- 1 in. deadbolt throw
- Locking mechanism functions with turn piece on the interior of the lock
- Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
- Keypad stays lit for 30 seconds after inactivity
- Expanding your security system solution with home connect technology, your keyless entry lock will now communicate wirelessly to security and home automation systems via Z-wave
- Customized automatic door locking after 30-seconds for peace of mind
- Customized automatic door locking after 30 seconds for peace of mind
- This single cylinder deadbolt can be locked or unlocked by a key on the outside, or the turn piece on the inside
Specifications
| Certifications | Grade 2 |
| Door Prep | 2 1 ⁄8" diameter face hole & 1" diameter latch hole |
| Backset | Adjustable 2 3⁄8" or 2 3⁄4" |
| Door Thickness | 1 3⁄8" – 2" automatic adjustment |
| Faceplates |
1" x 2 1⁄4" round corner standard |
| Strikes | Round corner strike 2 3⁄4" x 2 1⁄8" |
| Faceplate | Flat - Measures 1" x 6-7/8" [25.4 mm x 174.6 mm]. |
| Latch | Round corner adjustable 2 3⁄8" x 2 3⁄4" |
| Bolt | 1" throw, steel deadbolt |
| Door Handing | Reversible |
| Cylinder | SmartKey Security™ |
| Temperature Range |
Exterior: -40°F to 150°F Interior: 32°F to 140°F |
| Humidity | Exterior: 100% condensing Interior: 99% non-condensing |
